Today's advanced systems demand the best in performance and reliability in platform stabilization. Our range of high-performance inertial sensors provides critical inertial reference data essential for a variety of the most environmental challenged applications.
Adapting a sensing system from a fixed mounted use to mobile use requires consideration of several criteria such as vibration and stabilization. Our high-performance tactical grade CVG gyroscopes with their excellent stability, low noise and the highest mean time before failure (MTBF) on the market, offer an ideal solution for all your stabilization needs.
Numerous factors may affect stabilization accuracy which can be external to the gyroscope, for example, shock and vibration due to the system recoil and electromagnetic interference; or internal, such as noise or bias drift levels of the sensor. While all of the above requirements are important for these types of systems, it is also necessary to keep in mind price versus performance.
There are several different technologies that can be used for the development of gyroscopes for stabilization applications. MEMS gyroscopes offer a small form factor and a low price, however, in comparison with our gyroscopes, they typically exhibit higher bias over temperature and high noise. This tends to make MEMS unsuitable for high accuracy applications. They are also less tolerant to the shock and vibrations environments which are encountered in offshore applications.

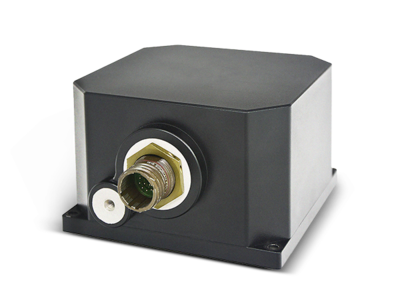

The GI-CVG-A2321D with a digital output is a great choice for static and mobile platform applications. The tactical performance, very low noise and high MTBF, combined with its compact design make this gyroscope the ideal for offshore environments where shock and vibration occurs.
Solid-state Coriolis Vibrating Gyros are based on the control of standing waves in a physical body, called a resonator which is housed within a protective case. The protective case which contains the resonator is called a Sensitive Element (SE), and there is one such SE per axis in all CVG gyroscopes.
The oscillations in the resonator are generated and detected by piezo-electric actuators, which are attached to the base of the resonator. A closed-loop electronic system is used to control the standing wave oscillation in the resonator, and to null the effects of Coriolis forces induced by the rotation of the resonator, providing as output a signal which is proportional to the gyroscope angular rate.
This electromechanical system is key to the very low output noise, and facilitates the large dynamic range required in several demanding applications.
The GI-CVG-A2321D is particularly suited to the following applications:
|Input Rate Measurement Limit||+/-160°/s|
|Operating Temperature Range||[-46°C;85°C]|
|Bandwidth (90° Phase)||>130Hz|
|Bandwidth (10° Phase)||>15Hz|
|SF Range (Full range, all effects)||+/-3%|
|Bias Repeatability ON/OFF||+/- 1°/h|
|Bias Stability (Full temperature range)||<10°/h sigma|
|Noise Spectral Density [1-100Hz]||≤ 0.01 °/s RMS|
|Turn On Time||1 sec|
|Warm Up Time||10 sec|
|Built-in Self-test – Failure Detection Rate||>75%|
|Output Signal Format||RS422 Asynchronous|
|Output Signal Definition||18 bits|
|Output Signal Update Rate||2KHz|
|Output Signal Baud Rate||1 MBaud|
|Connector (13 pins)||8D7C11Z35PA|
|Power Supply||28V (12…36V)|
|Power Consumption||≤ 6W|
|Operating Life without Maintenance||17 years|
|MTBF (per MIL-HDBK-217-F)||500000h|
