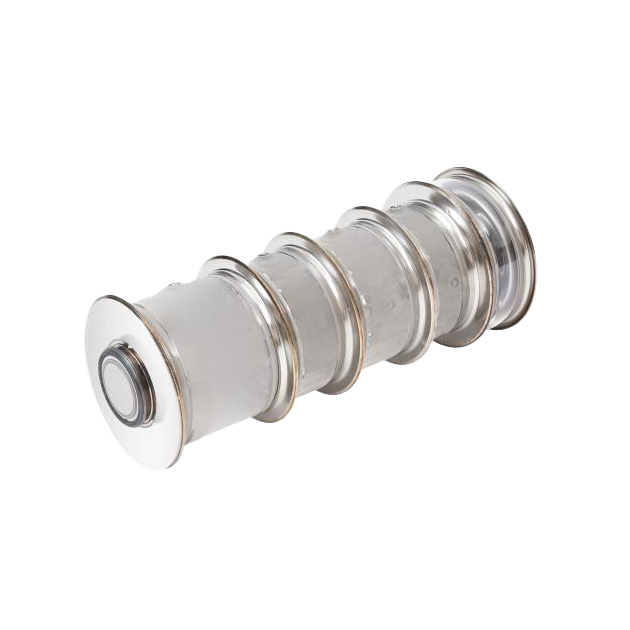

Streak Tubes

Streak Tubes

Provides Timing & Resolution

With a wide range of spatial and temporal resolutions, our streak tubes support extremely high-speed applications with simple connections to common camera equipment.

Categories: Scientific Imaging, Scientific Imaging and Detection
  • Description
  • Specifications

Streak Tube Series

Ultra-fine Spatial Resolution

Our Streak Tubes set the industry standard for overall quality, optimizing timing, resolution, and sensitivity. Streak tubes are unique devices for capturing and measuring ultra-fast light phenomena. There are several applications for streak tubes including temporal measurement of lasers, ballistics, fluorescence, spectrochemistry, laser-matter interaction, etc. Researchers will appreciate the wide range and high quality of these Streak Tubes.

Our solution can provide spatial resolution up to 50 lp/mm, temporal resolution to sub-picosecond in streak mode, or exposure times less than 10 ns in framing mode, making them a versatile solution to support a wide range of applications, such as Picosecond Laser Measurements, Plasma Physics, Detonics and Ballistics, Fluorescence and Raman Spectroscopy, Synchrotron Science.

Whether your application is ballistics, physics research, microscopy, biology, or femtochemistry, the Streak Tubes provides the timing and resolution your research requires.

Our Streak tubes are applied in streak, framing, or synchroscan modes, with a wide range of available photocathodes for detection from low energy X-ray to near infrared. The high sensitivity, low noise photocathodes provide high uniformity, excellent signal-to-noise ratio, and a high shutter ratio, while bilamellar electron optics support femtosecond temporal and extremely high spatial resolution.

  • High-sensitivity
  • Low-noise
  • High-uniformity photocathode
  • Ultra-fine spatial resolution
  • Stable spectral sensitivity
Relevant Documents

New Absolute Rotary Encoders for Industrial Automation

Options available for Streak tubes

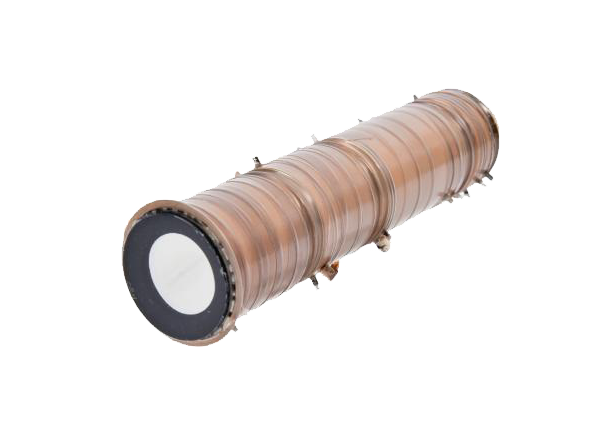

Mini-Streak

Mini Streak Tubes are smaller and cheaper but still have high performance. Potential applications for Mini Streak Tubes include laboratory testing, drone integration and use in the mega joule lasers.

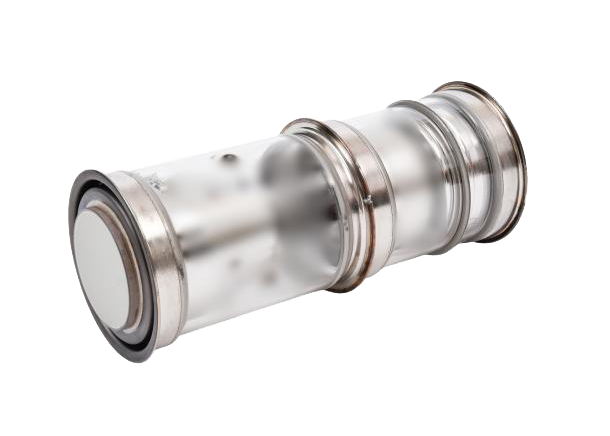

P500 Family

These sealed tubes have the largest on-the-market input/output windows where a large number of temporal and spatial pixels are needed.

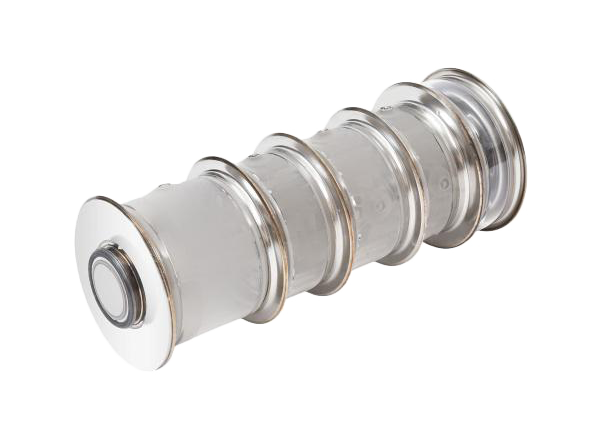

P800 Family

These sealed tubes provide sub-picosecond temporal resolution whilst maintaining excellent spatial resolution anduse bilamellar optics. Most tubes have an accelerating slit electrode for optimal spatial resolution but tubes with a mesh electrode or with grids are also offered for framing mode or synchroscan operation.

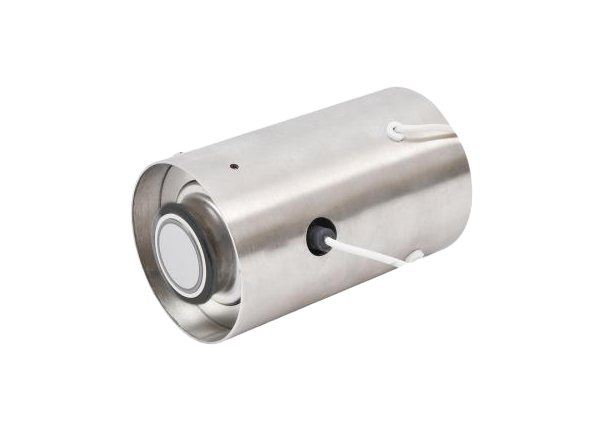

P900 Family

These sealed tubes have an output format well-suited to image amplification and read-out by CCD image sensors. Some P900 tubes have an internal MCP for increased gain.

Streak Tube Series

Technical Specification

This product doesn’t have any technical specifications available, please contact us for more information.
