Multi Channel Solutions

Penlink offers a wide range of multi channel fiber optical rotary joints that can be modified to meet your requirements. From single-mode to multi-mode, simplex, or duplex, we offer all solutions and can help you find the right one for your application.

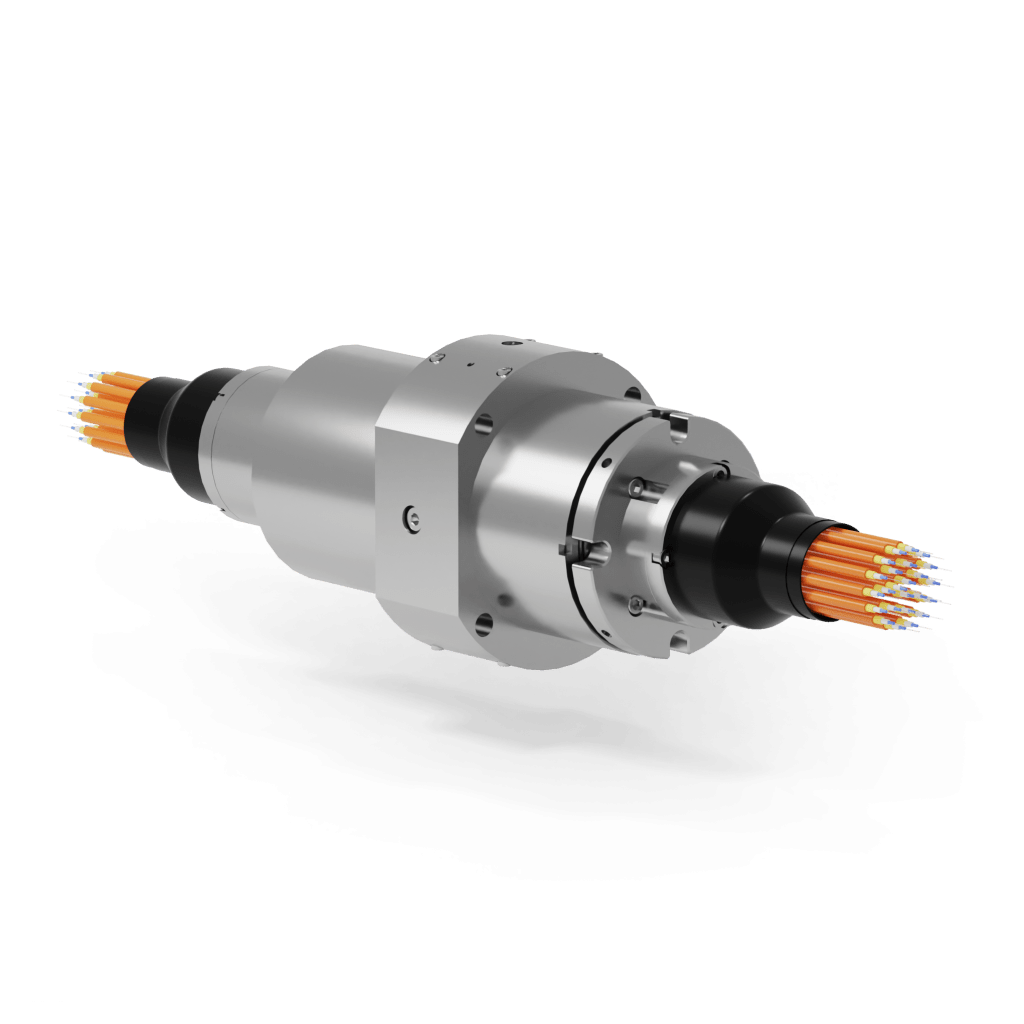

MRn-Serie

Multi-channel Fiber Joint With Possibility Of 36 Channels

MRn series multi-pass Fibre optic Rotary Joints (FORJs) carry the largest channel count in our FORJ lineup. 20-36 independent fibre channels are offered as standard options. The most common is the 24-channel version.

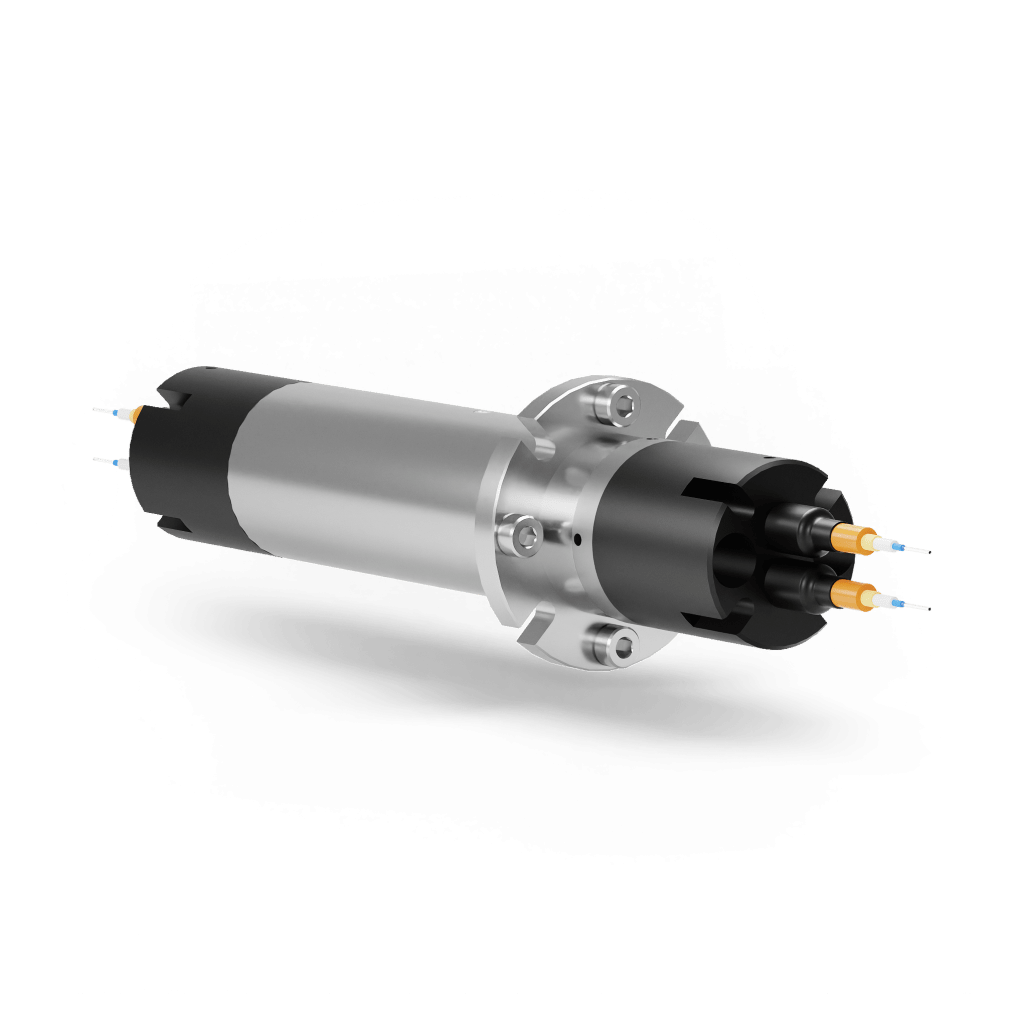

PJ2-Serie

Rugged Two Channel Fiber Optical Rotary Joint

The PJ2, or Plastic optical fibers (POF) possess a few important characteristics that make them favorite choices for certain short-distance fiber optic applications.

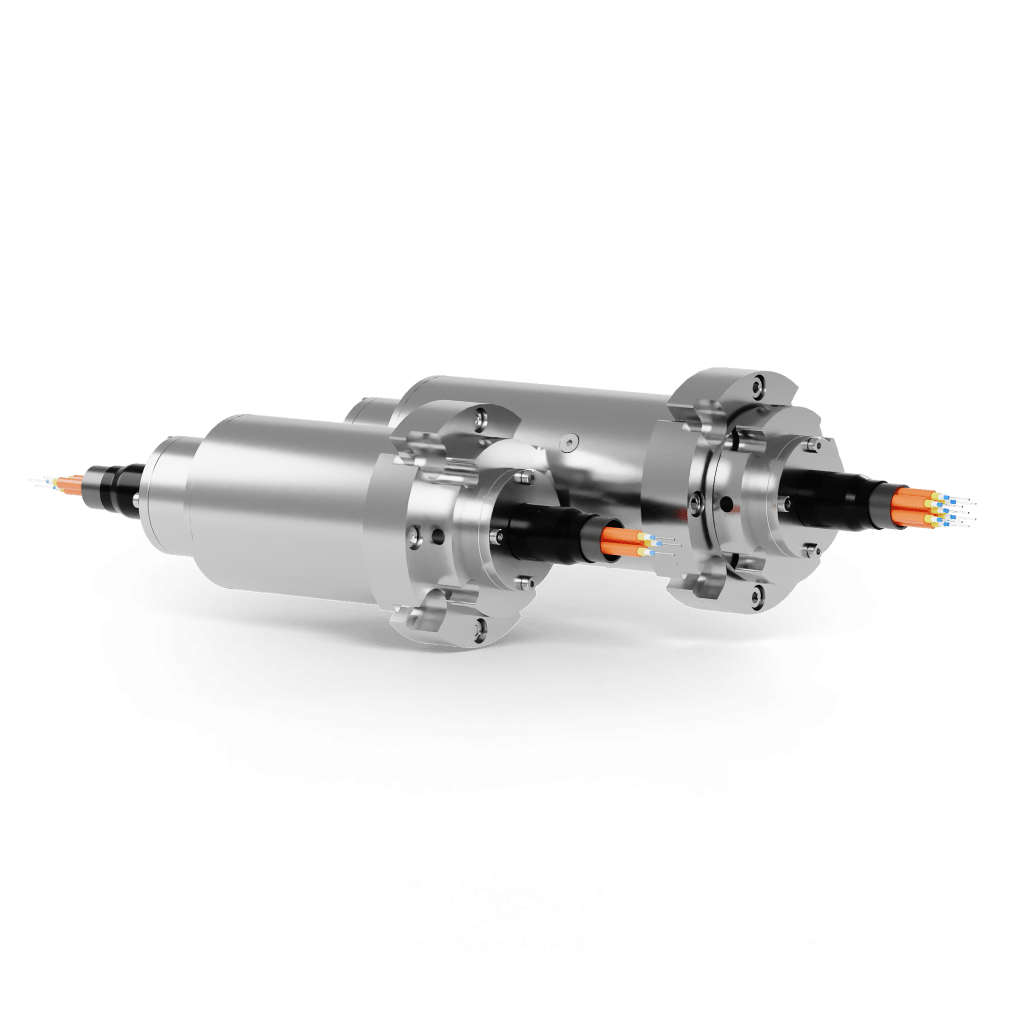

MXn-Serie

Small & Compact Multi-channel FORJ for Tight Spaces

A very compact package accommodates 2-3 channels and 4-7 channels (SM or MM fibers). It’s mounting scheme is similar to RJ2 series FORJs making it simple to upgrade from MM RJ2 to SM MX2. MXn series FORJs feature “blind-spot free” passage and low crosstalk.

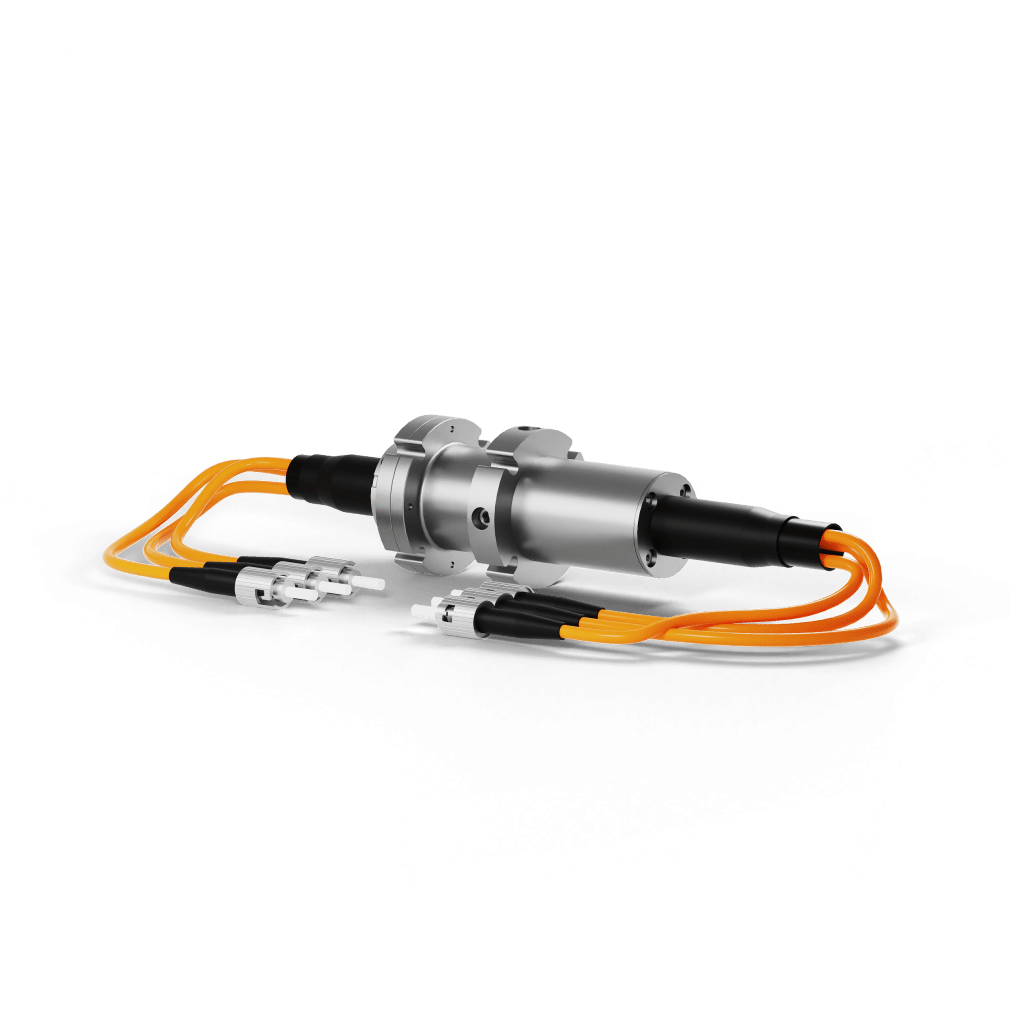

ZJn-Serie

Ultra-Compact Multi-channel Fiber Rotary Joint

Big performance in a small package. The most compact three-channel fiber rotary joint. Unlike MJ2 model, ZJn is capable of handling SM, MM, and mixed fibers. The ZJn promises all standard performance figures of its sister models.

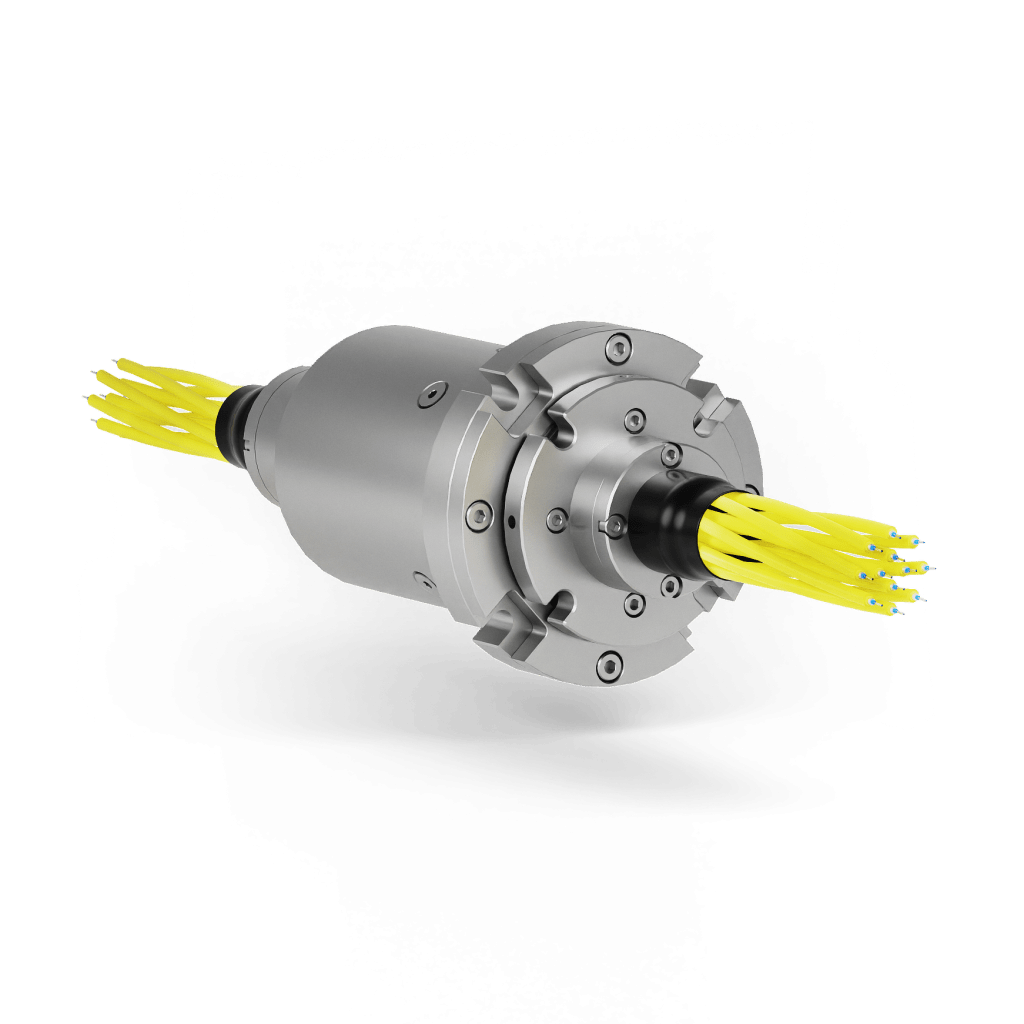

JXn-Serie

Rugged & Reliable Multi-channel Fiber Rotary Joint

Evolved from the successful MJn model, JXn series FORJs has become the most popular multi-channel FORJs. Maximum channel count is 19 (2-7, 8-12, or 13-19). Like all our FORJs, they are “blind-spot free” and are designed for harsh environments.

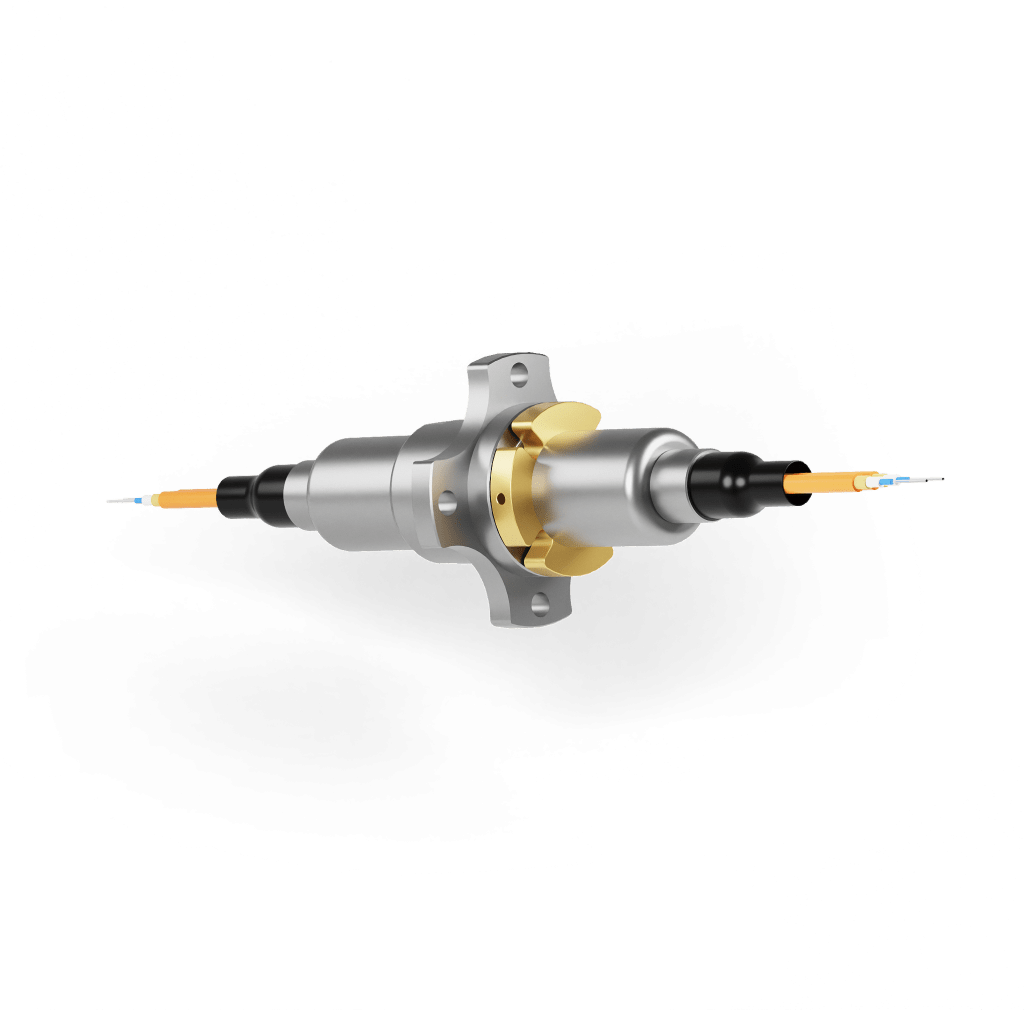

MJ2-Serie

Compact Two-channel Fiber Optical Rotary Joint

The dual-pass MJ2 Series fiber optical rotary joint connects two independent fiber channels simultaneously. It allows uninterrupted transmission of optical signals while rotating along the common mechanical axis.
