Standard Drives

Penlink offers a large assortment of standard drives for fast delivery and cost efficient! The standard drives we offer ranges for <100W up to 40,000W. The drives offers multiple feedback options and many I/O’s.

Intrested in customized solutions? Contact us!


11 products found

Standard Drives

Everest Servo Drive

Everest Servo Drive

Continuous Current

30 ARMS

Peak Current

60 ARMS

Supply Voltage

8-100 VDC

Dimensions

26 x 35 x 14 mm

Communications

USB, RS232, RS485, CANopen, EtherCAT, Ethernet/IP, Profibus, Profinet, Modbus RTU

Motor Type

DC Brushed, Rotary Brushless, Linear Brushless, Voice Coil

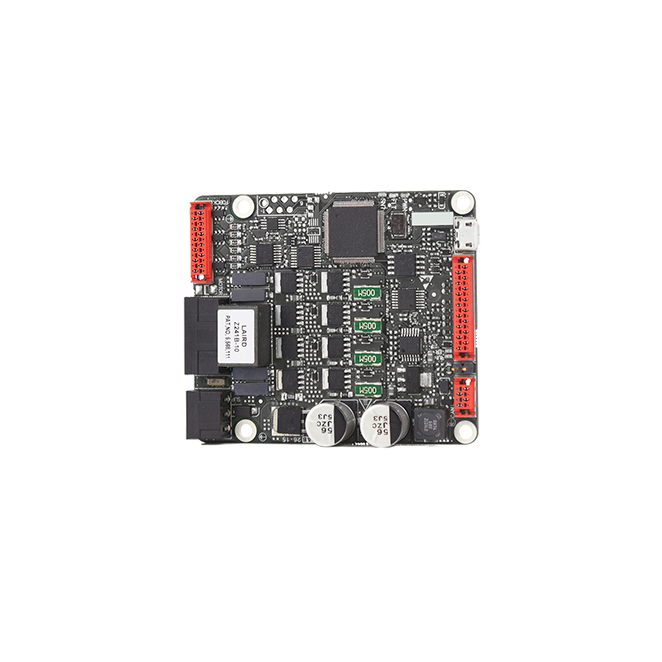

Hydra Servo Drive

Hydra Servo Drive

Continuous Current

8 ARMS

Peak Current

16 ARMS

Supply Voltage

12-48 VDC

Dimensions

60 x 70 x 15 mm

Communications

USB, RS485, CANopen

Motor Type

2 Phase Stepper

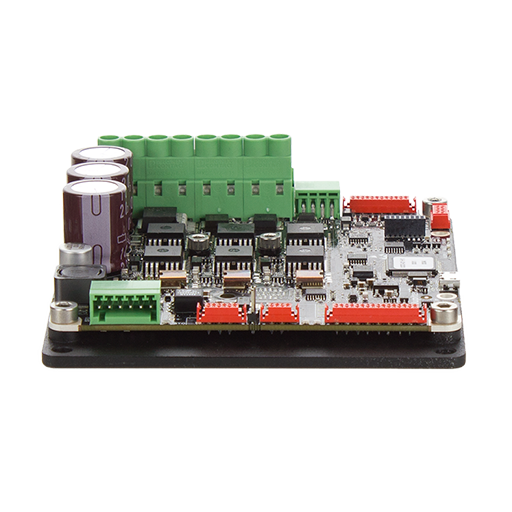

Jupiter Servo Drive

Jupiter Servo Drive

Continuous Current

40 ARMS

Peak Current

80 ARMS

Supply Voltage

10-130 VDC

Dimensions

100 x 100 x 26 mm

Communications

USB, RS232, RS485, CANopen, EtherCAT

Motor Type

DC Brushed, Rotary Brushless, Linear Brushless, Voice Coil

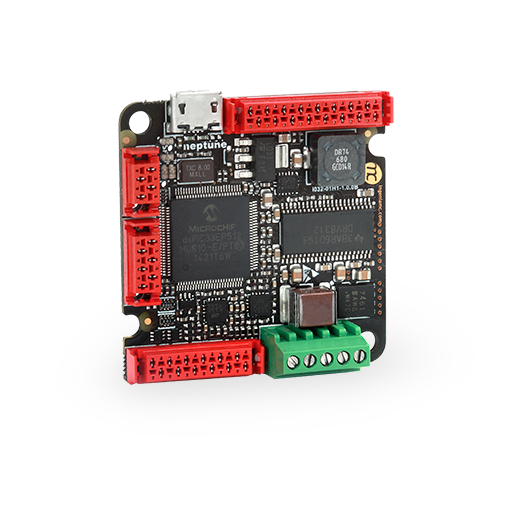

Neptune Servo Drive

Neptune Servo Drive

Continuous Current

2.5 ARMS

Peak Current

5 ARMS

Supply Voltage

9-48 VDC

Dimensions

40 x 40 x 15 mm

Communications

USB, RS232, CANopen, EtherCAT

Motor Type

DC Brushed, Rotary Brushless, Linear Brushless, Voice Coil

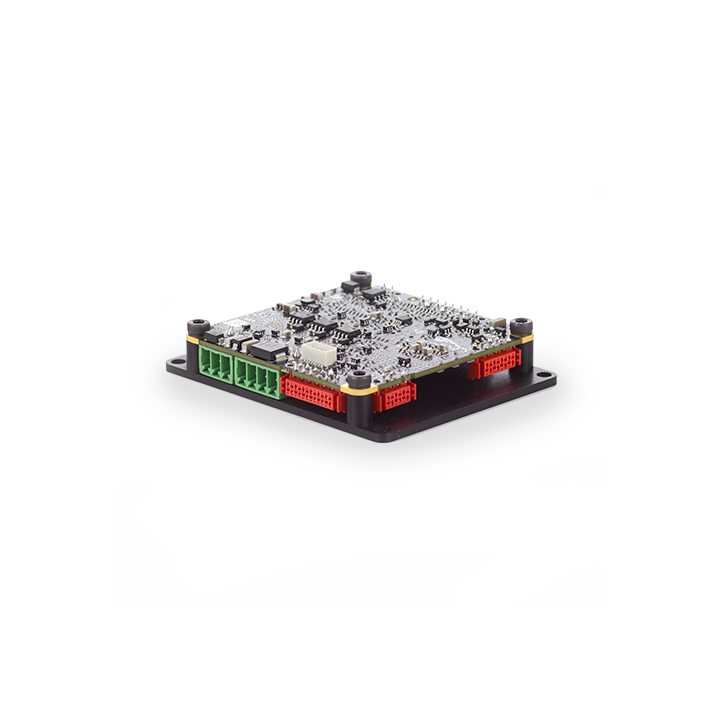

Nix Servo Drive

Nix Servo Drive

Continuous Current

10 ARMS

Peak Current

20 ARMS

Supply Voltage

10-170 VDC

Dimensions

75 x 60 x 14 mm

Communications

USB, RS485, CANopen, EtherCAT

Motor Type

DC Brushed, Rotary Brushless, Linear Brushless, Voice Coil

Pluto Servo Drive

Pluto Servo Drive

Continuous Current

8 ARMS

Peak Current

16 ARMS

Supply Voltage

9-48 VDC

Dimensions

60 x 60 x 15 mm

Communications

USB, CANopen, EtherCAT

Motor Type

DC Brushed, Rotary Brushless, Linear Brushless, Voice Coil

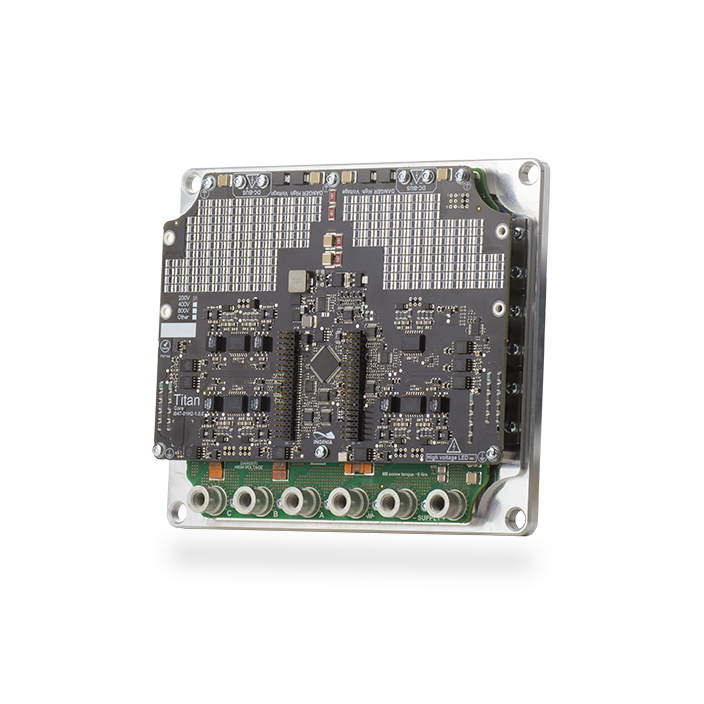

Titan Core Servo Drive

Titan Core Servo Drive

Continuous Current

200 ARMS

Peak Current

300 ARMS

Supply Voltage

12-800 VDC

Dimensions

172 x 206 x 30 mm

Communications

USB, RS232, RS485, CANopen, EtherCAT

Motor Type

DC Brushed, Rotary Brushless, Linear Brushless, Voice Coil

Titan Go Servo Drive

Titan Go Servo Drive

Continuous Current

200 ARMS

Peak Current

300 ARMS

Supply Voltage

12-800 VDC

Dimensions

172 x 206 x 30 mm

Communications

-

Motor Type

-

Triton Core Servo Drive

Triton Core Servo Drive

Continuous Current

5.6 ARMS

Peak Current

6.5 ARMS

Supply Voltage

8-48 VDC

Dimensions

43 x 43 x 15.9 mm

Communications

USB, RS485, CANopen, EtherCAT

Motor Type

DC Brushed, Rotary Brushless, Linear Brushless, Voice Coil

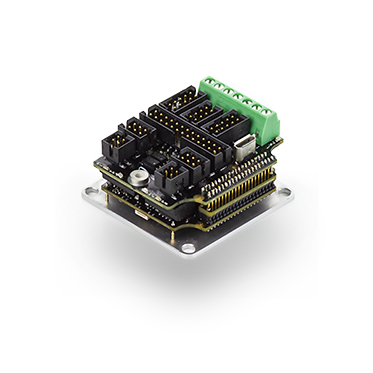

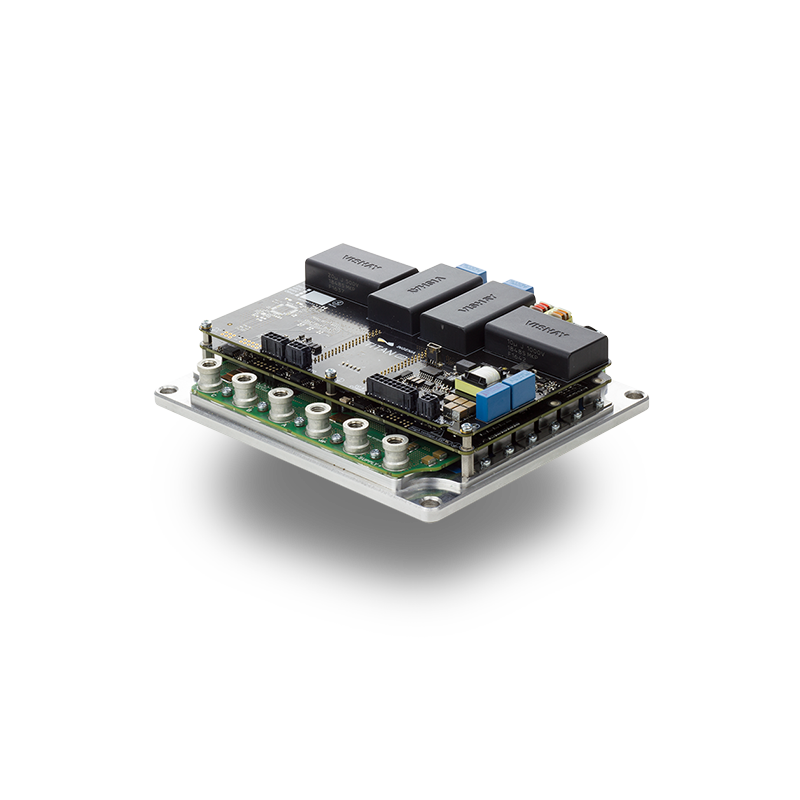

Triton Go Servo Drive

Triton Go Servo Drive

Continuous Current

5.6 ARMS

Peak Current

6.5 ARMS

Supply Voltage

8-48 VDC

Dimensions

43 x 45 x 23.6 mm

Communications

USB, RS485, CANopen, EtherCAT

Motor Type

DC Brushed, Rotary Brushless, Linear Brushless, Voice Coil

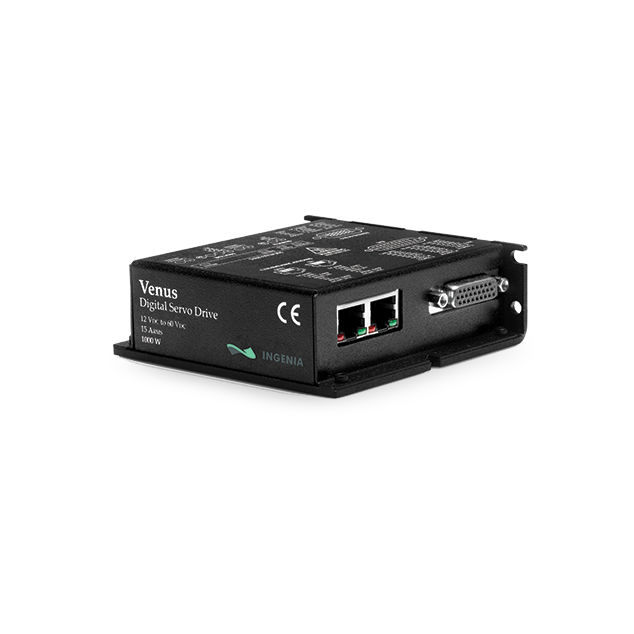

Venus Servo Drive

Venus Servo Drive

Continuous Current

15 ARMS

Peak Current

30 ARMS

Supply Voltage

10-60 VDC

Dimensions

100 x 100 x 34 mm

Communications

RS232, CANopen

Motor Type

DC Brushed, Rotary Brushless, Linear Brushless, Voice Coil

ProductContinuous CurrentPeak CurrentSupply VoltageDimensionsCommunicationsMotor TypePDF
Everest Servo Drive 30 ARMS 60 ARMS 8-100 VDC 26 x 35 x 14 mm USB, RS232, RS485, CANopen, EtherCAT, Ethernet/IP, Profibus, Profinet, Modbus RTU DC Brushed, Rotary Brushless, Linear Brushless, Voice Coil
Hydra Servo Drive 8 ARMS 16 ARMS 12-48 VDC 60 x 70 x 15 mm USB, RS485, CANopen 2 Phase Stepper icon
Jupiter Servo Drive 40 ARMS 80 ARMS 10-130 VDC 100 x 100 x 26 mm USB, RS232, RS485, CANopen, EtherCAT DC Brushed, Rotary Brushless, Linear Brushless, Voice Coil icon
Neptune Servo Drive 2.5 ARMS 5 ARMS 9-48 VDC 40 x 40 x 15 mm USB, RS232, CANopen, EtherCAT DC Brushed, Rotary Brushless, Linear Brushless, Voice Coil icon
Nix Servo Drive 10 ARMS 20 ARMS 10-170 VDC 75 x 60 x 14 mm USB, RS485, CANopen, EtherCAT DC Brushed, Rotary Brushless, Linear Brushless, Voice Coil icon
Pluto Servo Drive 8 ARMS 16 ARMS 9-48 VDC 60 x 60 x 15 mm USB, CANopen, EtherCAT DC Brushed, Rotary Brushless, Linear Brushless, Voice Coil icon
Titan Core Servo Drive 200 ARMS 300 ARMS 12-800 VDC 172 x 206 x 30 mm USB, RS232, RS485, CANopen, EtherCAT DC Brushed, Rotary Brushless, Linear Brushless, Voice Coil
Titan Go Servo Drive 200 ARMS 300 ARMS 12-800 VDC 172 x 206 x 30 mm - -
Triton Core Servo Drive 5.6 ARMS 6.5 ARMS 8-48 VDC 43 x 43 x 15.9 mm USB, RS485, CANopen, EtherCAT DC Brushed, Rotary Brushless, Linear Brushless, Voice Coil
Triton Go Servo Drive 5.6 ARMS 6.5 ARMS 8-48 VDC 43 x 45 x 23.6 mm USB, RS485, CANopen, EtherCAT DC Brushed, Rotary Brushless, Linear Brushless, Voice Coil
Venus Servo Drive 15 ARMS 30 ARMS 10-60 VDC 100 x 100 x 34 mm RS232, CANopen DC Brushed, Rotary Brushless, Linear Brushless, Voice Coil
