UV Detecting Cameras

Avoid damage to power lines and unexpected power outages!

In most power lines there is a risk that electrical discharge happens, which can lead to power outages. This can also happen during production of high voltage electronic products on a production line.

This discharge is more commonly known as Corona Discharge. Corona discharge is an electrical discharge that occurs when a fluid (like air) surrounding an electrically-charged conductor becomes ionized. In simple terms, it's the noise that air (surrounding the power lines) makes as electricity jumps through it. With our camera solution you can detect the electrical discharge before it damage the power line or the cables on a production line.

Interested in our Solution for Corona Discharge Detection?

Contact us for more info!

Keep track of the corona discharge to reduce the risk of power outages!

Currently power line companies uses UV cameras and normal day cameras, combined in a fusion system to detect electrical discharge. They use the fused video to determine where exactly the corona discharge is happening.

There are only few companies in the world that make these kind of systems with combined fusion systems and frankly – they are expensive. But with our UV camera solution, we are enabling other companies, such as drone operators, to use our camera in combination with a daytime camera to help them detect corona discharges.

Our solutions is fully customizable as it is a camera core, it is fully open to be integrated or customized into a system. In most common cases, it would need to be combined with a day camera. Are you interested in this solution please contact us for more in depth information about the solution and our integrated products. We will help you!

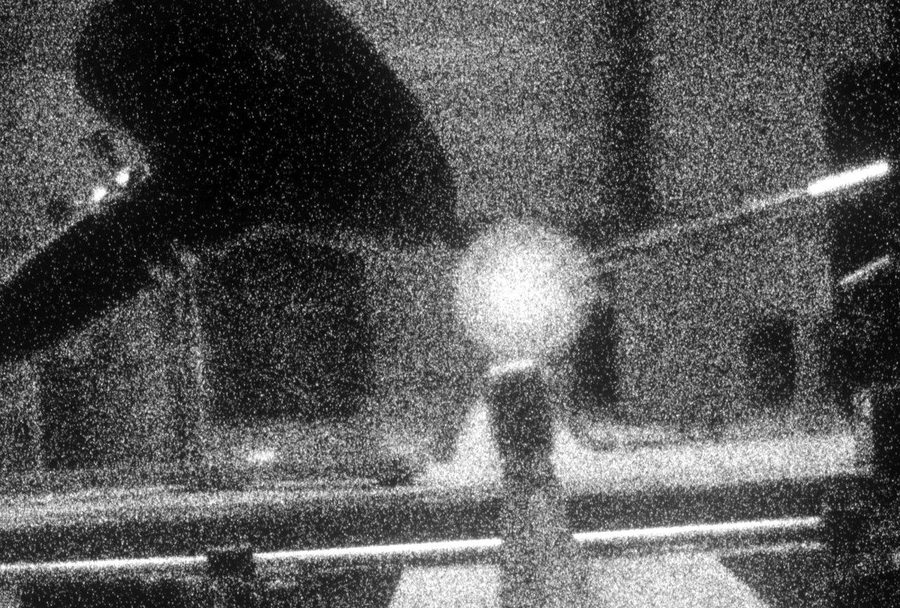

Example of Corona Discharge Detection

Even though there is no combination with a day camera for this picture, it is the raw image of our camera, it is detecting a spark in the UV spectrum at high voltage.

Detects Low Amounts of UV Light

Our solutions consist of a combination between a solar blind image intensifier tube and our low-light camera. With this technology we are able to see even low amounts of UV light, since corona discharge is visible in the UV spectrum. This means that camera solution can very precisely detect where the source of the discharge is happening, which is an important feature to minimize downtime and the costs that come with damaged power lines due to electrical discharge.

Our main advantage is the extreme sensitivity of this camera and that it provides a framerate of up to 60hz. The extreme sensitivity also provides us with quick detection of electrical discharge, making power lines last longer. This solution mounted on a drone makes it one of the best in the industry to detect corona discharge in difficult or unreachable places. Contact us for more info on drone-based solutions.

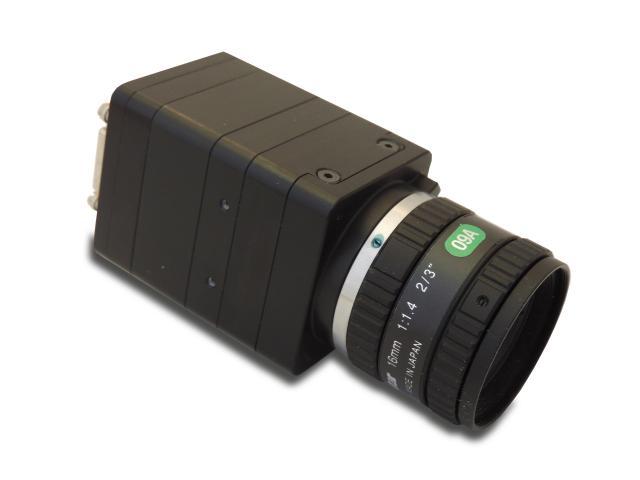

⟶   Read more about the CMOS Nocturn

Imaging Start-Up Time < 5 s
Image Correction Bad pixel replacement and 2 points non-uniformity correction (NUC)
Gain Control Automatic gain and exposure control or manual
Windowing Full field of view down to ¹⁄2 vertical resolution
On-Screen Display Display Full on-screen display capability with text, standard geometrical shapes and graphics
Digital Zoom Up to 8x (0.0001 increment resolution)
Contrast Enhancement Histogram stretching, equalization and adaptive equalization
Snapshots On-board capture of .JPG or .PGM (8/10 b)
