Kuvanvahvistimet

ELEKTRO-OPTIIKKA

Kuvanvahvistin on elektro-optinen järjestelmä, joka lisää käytettävissä olevan valon voimakkuutta. Tämä antaa mahdollisuuden nähdä heikossa valossa, testata fluoresoivia materiaaleja röntgen- tai gammasäteillä ja muuntaa näkymätön valo, kuten lähi-infrapuna- ja ultraviolettivalo näkyväksi valoksi. Penlink edustaa Photonisia, joka on maailman johtava kuvanvahvistimien tuotannossa sotilas-, avaruus- ja kaupallisiin sovelluksiin.

3 products found

Image Intensifier Tubes

4G Image Intensifier Tube

4G Image Intensifier Tube

MTTF

15 000 h

Intensification (2×10-5 lx)

50 000/pi cd/m2/lx

Signal > Noise ratio (at 108µlx)

28

Resolution

72 lp/mm

Sensitivity (at 2850K)

800 µA/lm

XD-4™ Image Intensifier Tube

XD-4™ Image Intensifier Tube

MTTF

10 000 h

Intensification (2×10-5 lx)

10 000 cd/m2/lx

Signal > Noise ratio (at 108µlx)

23

Resolution

64 lp/mm

Sensitivity (at 2850K)

700 µA/lm

XR5™ Image Intensifier Tube

XR5™ Image Intensifier Tube

MTTF

15 000 h

Intensification (2×10-5 lx)

50 000/pi cd/m2/lx

Signal > Noise ratio (at 108µlx)

28

Resolution

72 lp/mm

Sensitivity (at 2850K)

800 µA/lm

ProductMTTFIntensification (2×10-5 lx)Signal > Noise ratio (at 108µlx)ResolutionSensitivity (at 2850K)PDF
4G Image Intensifier Tube 15 000 h 50 000/pi cd/m2/lx 28 72 lp/mm 800 µA/lm icon
XD-4™ Image Intensifier Tube 10 000 h 10 000 cd/m2/lx 23 64 lp/mm 700 µA/lm icon
XR5™ Image Intensifier Tube 15 000 h 50 000/pi cd/m2/lx 28 72 lp/mm 800 µA/lm icon

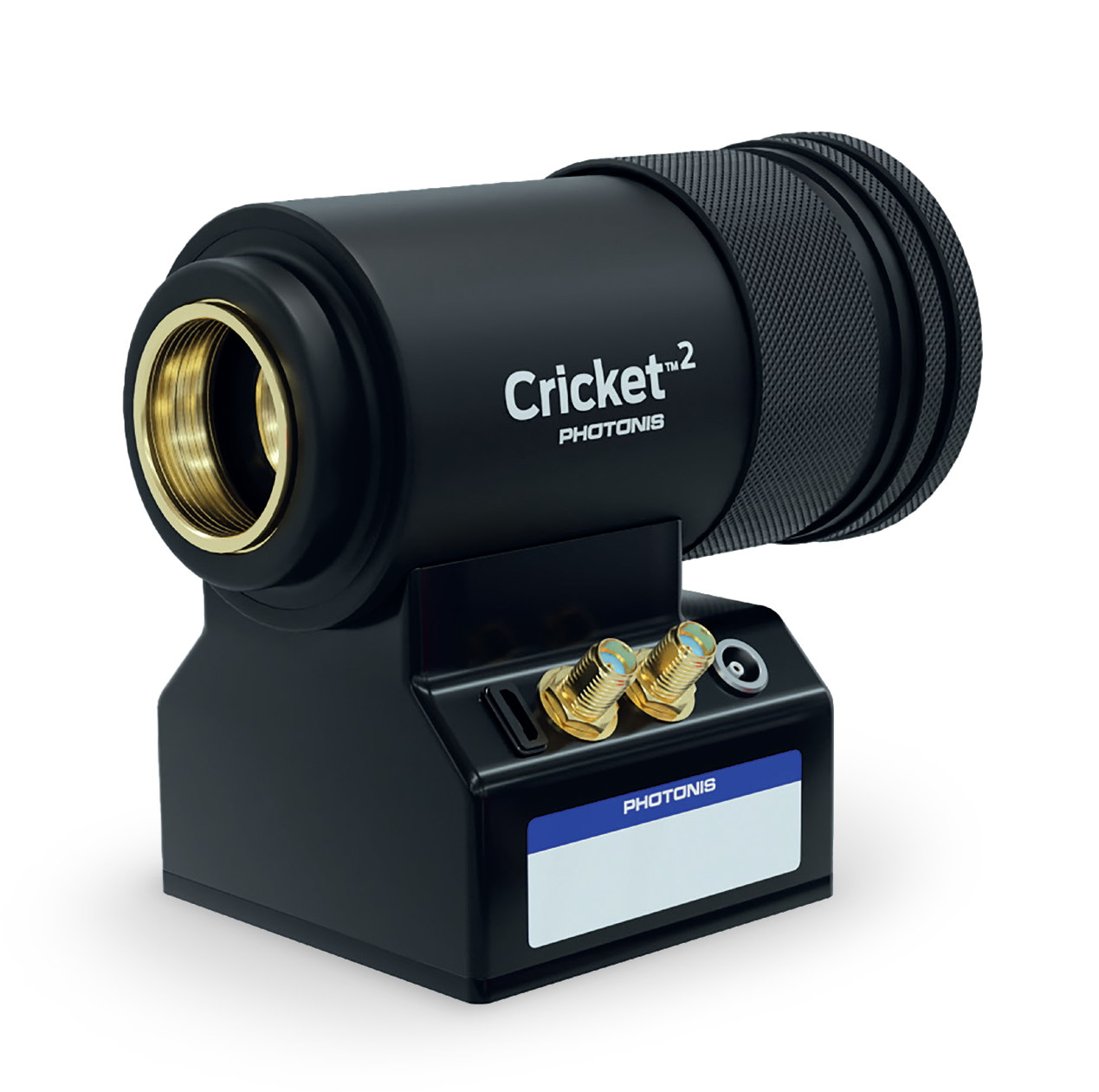

Cricket

Plug and play adaptor

The Cricket enables your camera to capture images across a broad spectral range, from 200 to 900nm. Connecting the Cricket is simple, using a universal C-mount interface. Simply adjust the fine focus and begin.

It features an 18mm image intensifier, a fiber optic anode window, and a power supply. The Cricket easily adapts to any camera and lens assembly using C-Mount connections, making it simple to make any camera an intensified camera for use in physics, fluorescence imaging, plasma research or corona detection.

In addition to providing an intensified image, Cricket can also convert UV and NIR photons into green photons with emission characteristics that perfectly match the spectral response of a solid state camera. High 3ns temporal resolution is made possible with an optional gating module. Cricket supports 1 μlx sensitivity or single photon counting.

Technical Specifications

  • Lens side: C-mount, female thread
  • Camera side: C-mount, male thread
  • Magnification: 1:1
  • Max. Camera Sensor Format 2/3”: 4:3 aspect ratio
  • Max. Camera Sensor Format 1/1.2”: 16:10 aspect ratio
  • Power Consumption: 60 mW at 3 V, suitable for battery operation
  • Housing: Black anodized aluminium
  • Overall Dimensions: 94.5 H x 58.0 W x 111.5 L mm
  • Weight: Approximately 450 g

Compability

The Cricket is compatible with most CCD, CMOS, EMCCD and sCMOS cameras, and is ideal for a large number of applications including physics, FLIM, plasma research and corona detection.

⟶  Learn more
