Electro-Optics

Standard & Integrated Solutions

Our camera solutions consist of image intensifiers and high-end cameras to give you the very best when it comes to surveillance, deepsea or science projects. Get in touch with us for more information about our cameras.

Cameras

Eagle V CCD

Right now we have the Eagle V as the only CCD camera in our portfolio. It is one of the most sensitive CCD camera platforms in the World. Using a choice of back-illuminated CCD sensor. Offering low read noise, unbinned and binning options, the Eagle also offers dual read-out rates. Did you know we have lifetime vacuum guarantee?

Read more about this camera

EMCCD Cameras

EMCCDs employ a unique architecture that enables the device to greatly amplify (>1000 times) the number of resulting electrons produced by the incident light. This feature gives the EMCCD a far superior advantage over existing CCD technology in low light conditions. Real time images can be obtained in lux levels of 10-5 equivalent to a dark overcast night with no artificial light. Don’t forget to check out Falcon III: Next generation EMCCD!

6 products found

EMCCD Cameras

Falcon II

Falcon II

Frame rate

10 – 120Hz

Spectral range

180-1100nm

Pixel size

8µm x 8µm

Resolution

1004 × 1002

Color type

TBD

Output Format

CameraLink

Falcon III

Falcon III

Frame rate

Up to 346Hz

Spectral range

0.9µm-1.7µm

Pixel size

8µm x 8µm

Resolution

320 × 256

Color type

TBD

Output Format

CameraLink

Hawk 216 EMCCD

Hawk 216 EMCCD

Frame rate

Up to 346Hz

Spectral range

0.9µm-1.7µm

Pixel size

8µm x 8µm

Resolution

320 × 256

Color type

TBD

Output Format

CameraLink

Hawk 247 EMCCD

Hawk 247 EMCCD

Frame rate

Up to 346Hz

Spectral range

0.9µm-1.7µm

Pixel size

8µm x 8µm

Resolution

320 × 256

Color type

TBD

Output Format

CameraLink

Kestrel EMCCD

Kestrel EMCCD

Frame rate

Up to 346Hz

Spectral range

0.9µm-1.7µm

Pixel size

8µm x 8µm

Resolution

320 × 256

Color type

TBD

Output Format

CameraLink

Kite EMCCD

Kite EMCCD

Frame rate

Up to 346Hz

Spectral range

0.9µm-1.7µm

Pixel size

8µm x 8µm

Resolution

320 × 256

Color type

TBD

Output Format

CameraLink

ProductFrame rateSpectral rangePixel sizeResolutionColor typeOutput FormatPDF
Falcon II 10 – 120Hz 180-1100nm 8µm x 8µm 1004 × 1002 TBD CameraLink icon
Falcon III Up to 346Hz 0.9µm-1.7µm 8µm x 8µm 320 × 256 TBD CameraLink icon
Hawk 216 EMCCD Up to 346Hz 0.9µm-1.7µm 8µm x 8µm 320 × 256 TBD CameraLink icon
Hawk 247 EMCCD Up to 346Hz 0.9µm-1.7µm 8µm x 8µm 320 × 256 TBD CameraLink icon
Kestrel EMCCD Up to 346Hz 0.9µm-1.7µm 8µm x 8µm 320 × 256 TBD CameraLink icon
Kite EMCCD Up to 346Hz 0.9µm-1.7µm 8µm x 8µm 320 × 256 TBD CameraLink icon

EBCMOS

The Electron-Bombarded CMOS Image Sensor (EB-CMOS-IS) is a novel PEA technology and has just recently become commercially available. Although the EB-CMOS-IS-based applications demonstrate outstanding sensitivity, they are exploited today far from their maximal potential.

Check out the EBNocturn with 1.3 Mpx to learn more!
Check out the EBNocturn with 2 Mpx to learn more!

CMOS Nocturn

NOCTURN camera is a rugged low-light camera module that features high-definition resolution, high sensitivity and high dynamic range with low power consumption. It provides color or monochrome real-time imaging capabilities – from daylight to bright starlight – in the visible and near infrared spectrum. Its small size, makes this camera module ideal for integration into aerial, mobile and hand-held surveillance systems.

Check out CMOS Nocturn to learn more!

OEM

Raptor designs camera platforms to provide our customers with a flexible/modular solution that meets their exact requirements. We build what you need and we also offer high quality, reliability, a very competitive price-performance metric and fast delivery, making Raptor a very attractive solution for OEMs.

2 products found

Scientific Cameras

Eagle XO X-Ray

Eagle XO X-Ray

Frame rate

Up to 346Hz

Spectral range

0.9µm-1.7µm

Pixel size

8µm x 8µm

Resolution

320 × 256

Color type

TBD

Output Format

CameraLink

Kingfisher OEM

Kingfisher OEM

Frame rate

Up to 6.2fps

Spectral range

310 – 1100nm

Pixel size

Up to 4.54μm x 4.54μm

Resolution

Up to 9.2mp

Color type

-

Output Format

-

ProductFrame rateSpectral rangePixel sizeResolutionColor typeOutput FormatPDF
Eagle XO X-Ray Up to 346Hz 0.9µm-1.7µm 8µm x 8µm 320 × 256 TBD CameraLink
Kingfisher OEM Up to 6.2fps 310 – 1100nm Up to 4.54μm x 4.54μm Up to 9.2mp - -

SWIR Cameras

Raptors SWIR cameras  are world leading cameras using InGaAs technology for near and short wave infrared imaging. The OWL series are designed & manufactured by Raptor Photonics and offers the latest SWIR sensor technology providing unprecedented day-night surveillance performance. We can offer OEM-packaging for easy system integration!

8 products found

SWIR & VIS-SWIR Cameras

Ninox 1280 VIS-SWIR

Ninox 1280 VIS-SWIR

Frame rate

60Hz

Spectral range

0.4µm-1.7µm

Pixel size

10µm x 10µm

Resolution

-

Color type

-

Output Format

CameraLink

Ninox VIS-SWIR 640

Ninox VIS-SWIR 640

Frame rate

Up to 346Hz

Spectral range

0.9µm-1.7µm

Pixel size

8µm x 8µm

Resolution

320 × 256

Color type

TBD

Output Format

CameraLink

OWL 1280 VIS SWIR

OWL 1280 VIS SWIR

Frame rate

Up to 346Hz

Spectral range

0.9µm-1.7µm

Pixel size

8µm x 8µm

Resolution

320 × 256

Color type

TBD

Output Format

CameraLink

OWL 320 HS SWIR

OWL 320 HS SWIR

Frame rate

Up to 346Hz

Spectral range

0.9µm-1.7µm

Pixel size

8µm x 8µm

Resolution

320 × 256

Color type

TBD

Output Format

CameraLink

OWL 320 HS VIS SWIR

OWL 320 HS VIS SWIR

Frame rate

Up to 346Hz

Spectral range

0.4µm-1.7µm

Pixel size

10µm x 10µm

Resolution

320 × 256

Color type

TBD

Output Format

CameraLink

OWL 640 'Mini' VIS SWIR

OWL 640 'Mini' VIS SWIR

Frame rate

Up to 346Hz

Spectral range

0.9µm-1.7µm

Pixel size

8µm x 8µm

Resolution

320 × 256

Color type

TBD

Output Format

CameraLink

OWL 640 Analog VIS-SWIR

OWL 640 Analog VIS-SWIR

Frame rate

Up to 346Hz

Spectral range

0.9µm-1.7µm

Pixel size

8µm x 8µm

Resolution

320 × 256

Color type

TBD

Output Format

CameraLink

OWL 640 VIS-SWIR Digital

OWL 640 VIS-SWIR Digital

Frame rate

Up to 346Hz

Spectral range

0.9µm-1.7µm

Pixel size

8µm x 8µm

Resolution

320 × 256

Color type

TBD

Output Format

CameraLink

ProductFrame rateSpectral rangePixel sizeResolutionColor typeOutput FormatPDF
Ninox 1280 VIS-SWIR 60Hz 0.4µm-1.7µm 10µm x 10µm - - CameraLink icon
Ninox VIS-SWIR 640 Up to 346Hz 0.9µm-1.7µm 8µm x 8µm 320 × 256 TBD CameraLink icon
OWL 1280 VIS SWIR Up to 346Hz 0.9µm-1.7µm 8µm x 8µm 320 × 256 TBD CameraLink icon
OWL 320 HS SWIR Up to 346Hz 0.9µm-1.7µm 8µm x 8µm 320 × 256 TBD CameraLink icon
OWL 320 HS VIS SWIR Up to 346Hz 0.4µm-1.7µm 10µm x 10µm 320 × 256 TBD CameraLink icon
OWL 640 'Mini' VIS SWIR Up to 346Hz 0.9µm-1.7µm 8µm x 8µm 320 × 256 TBD CameraLink icon
OWL 640 Analog VIS-SWIR Up to 346Hz 0.9µm-1.7µm 8µm x 8µm 320 × 256 TBD CameraLink icon
OWL 640 VIS-SWIR Digital Up to 346Hz 0.9µm-1.7µm 8µm x 8µm 320 × 256 TBD CameraLink icon

XRay

Introducing a high energy direct X-Ray Open Front version one of the most sensitive CCD cameras in the World. The Eagle XO is available in a range of options including sensor resolution, sensor type, cooling and flange options. This freedom of choice offers cameras to meet your exact needs.

0 products found

Lynx CMOS

The LYNX CMOS Sensor is the first operational Night Vision and Homeland Security Digital Sensor based on full solid-state technology operating in both daylight and low-light level (equivalent to quarter moon).

The LYNX CMOS Sensor offers new perspectives in connecting night vision to Command and Control (C4I), in urban and suburban surveillance at night and in advanced applications such as vehicle protection/surveillance and fusion of digital images such as visible (at night) and infra-red (IR).

Read more here!

KAMELEON COLOR CMOS

The KAMELEON CMOS color imaging sensor is the first operational sensor specifically designed with Night Vision, Homeland Security, Surveillance and Scientific applications in mind. This solid-state CMOS sensor provides excellent color imaging across varying light conditions, from daylight to low-light levels - such as those found during a quarter-moon.

The KAMELEON CMOS pixel architecture offers the best compromise between inherent signal-to-noise ratio (SNR), high resolution and intrascene dynamic range. With total read-out noise below 4 e- without cooling, the KAMELEON CMOS sensor outperforms all low light imaging sensors down to 4 mlx while still supporting frame rates up to 100 fps at a full SXGA (1280 x 1024) resolution.

Read more here!

Image Intensifiers

Cricket

Cricket is a plug and play adaptor designed to convert any scientific camera into an intensified camera. It features an 18mm image intensifier, a fiber optic anode window, and a power supply. The Cricket easily adapts to any camera and lens assembly using C-Mount connections, making it simple to make...

Read more about our Cricket.

Image Intensifier Tubes

An image intensifier is an electro-optical system which increases the intensity of available light. This makes it possible to see under low-light conditions, to test fluorescent materials under X-rays or gamma rays, and to convert non-visible light, such as near-infrared and ultraviolet light to visible light. Penlink represents Photonis, a world leader in the production of image intensifiers for military, space, and commercial applications.

3 products found

Image Intensifier Tubes

4G Image Intensifier Tube

4G Image Intensifier Tube

MTTF

15 000 h

Intensification (2×10-5 lx)

50 000/pi cd/m2/lx

Signal > Noise ratio (at 108µlx)

28

Resolution

72 lp/mm

Sensitivity (at 2850K)

800 µA/lm

XD-4™ Image Intensifier Tube

XD-4™ Image Intensifier Tube

MTTF

10 000 h

Intensification (2×10-5 lx)

10 000 cd/m2/lx

Signal > Noise ratio (at 108µlx)

23

Resolution

64 lp/mm

Sensitivity (at 2850K)

700 µA/lm

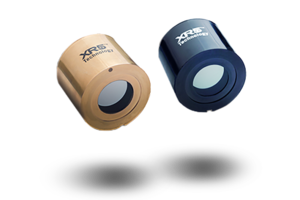

XR5™ Image Intensifier Tube

XR5™ Image Intensifier Tube

MTTF

15 000 h

Intensification (2×10-5 lx)

50 000/pi cd/m2/lx

Signal > Noise ratio (at 108µlx)

28

Resolution

72 lp/mm

Sensitivity (at 2850K)

800 µA/lm

ProductMTTFIntensification (2×10-5 lx)Signal > Noise ratio (at 108µlx)ResolutionSensitivity (at 2850K)PDF
4G Image Intensifier Tube 15 000 h 50 000/pi cd/m2/lx 28 72 lp/mm 800 µA/lm icon
XD-4™ Image Intensifier Tube 10 000 h 10 000 cd/m2/lx 23 64 lp/mm 700 µA/lm icon
XR5™ Image Intensifier Tube 15 000 h 50 000/pi cd/m2/lx 28 72 lp/mm 800 µA/lm icon

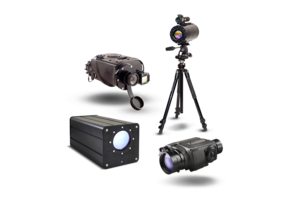

Integrated Solutions

Integrated Solutions

Penlink offers a wide range of integrated cameras solutions. From boxed cameras with customer defined sensor (camera core), lenses, electronics (output, communication) hermetically sealed, to handheld end-user systems! Please get in touch to know more!

Handheld

Penlink offers handheld low light sensor technology! It can also be fused between two different sensor technology. These handheld system uses SWIR-sensor, LWIR-sensors, Low light CMOS sensors with large pixel pitch. The handheld systems we offer are mainly used by military and law enforcement.

Boxed Cameras

Penlink offers a wide range of integrated boxed cameras solutions. Customer defined sensor (camera core), lenses, electronics (output, communication) hermetically sealed, to handheld end-user systems! Please get in touch to know more!

System Integration

Penlink offers a wide range of integrated cameras solutions. From boxed cameras with customer defined sensor (camera core), lenses, electronics (output, communication) hermetically sealed, to handheld end-user systems! Please get in touch to know more!

Scientific Detectors

PLANACON™ Photodetector

The Planacon™ family of products are square-shaped MCP-PMTs designed to capture fast timing events such as those found in single photon counting applications. Planacons provide superior immunity to magnetic influence, down to 2T, while providing high quality images. Photonis' Planacon brings all the high speed, single photon counting features of a traditionally round MCP-PMT...

Read more about our Photodetector

TIME-OF-FLIGHT DETECTORS

PHOTONIS offers the fastest Time-of-Flight Detectors on the market, with previously unobtainable levels of temporal resolution, dynamic range, and high mass detection sensitivity for Time-of-Flight Mass Spectrometry.  TOF detectors are available to support Standard, BiPolar, Co-Axial, High Temperature, Ultra-Fast, and Off-Axis TOF applications.

Find more info on ToF-detectors ex. bipolar, miniature, GEN 2 ULTRAFAST etc.

Advanced Performance Detectors

PHOTONIS’ Advanced Performance Detectors (APDs) are plug-and-play electo-optic assemblies which provide a complete housing, facilitating manufacturing assembly, repair or replacement to mass spectrometers and other machines. APDs are available for new machines or as replacement cartridges for existing models.

Over 200 types are currently available. APDs are available with cartridge-mounted microchannel plates, further simplifying additional repairs.

Find more info on PHOTONIS APD detectors.

Channel Electron multiplier

Channeltron® Electron Multipliers are durable and efficient detectors of positive and negative ions as well as electrons and photons. PHOTONIS’ electron multipliers also offer the highest dynamic range to assure an absolutely linear response beyond the limits of most analytical instruments.

Channeltrons® are available in a variety of shapes and sizes including the MAGNUM®, Spiraltron, miniature and support standard and high-pressure applications.

Find more info on PHOTONIS Channeltron® Electron Multipliers detectors.

Electron Generator Arrays

PHOTONIS’ patented ELECTROGEN™ Electron Generator Arrays (EGAs) consist of millions of precision glass tubes fused together to produce a uniform and mechanically rigid structure. They are processed such that, when a voltage is applied across the thickness, each pore produces a beam of electrons. Because each of the millions of pores produce electrons, the resultant electron flux is extremely uniform and dense.

EGAs can be used as the electron source in electron impact ionization source applications. This technology has the advantage of performing as a cold ionization source, which eliminates pyrolytic effects that occur when the heat generated by the filament chemically changes the unknown substances to be identified.

Find more info on PHOTONIS Electron Generator Arrays (EGAs) detectors.

Hybrid Photo Diode

The PHOTONIS Hybrid Photo Diode provides an alternate technique for photon detection. The HPD amplifies an electron in a vacuum tube and bombards it onto a silicon diode. For each impact, a gain of between 2000 and 3000 is achieved. A diode array converts the signal to pixels. Hybrid Photo Diodes can be focused by proximity or electrostatically. A fiber-optic entry window is available as an option, to allow the HPD to process signals from scintillating fibers without a signal loss due to the coupling in the connection.

Read more about PHOTONIS HPD Detector.

Microchannel Plates

A microchannel plate (MCP) is an electron multiplier for detecting X-rays, ultraviolet radiation and charged particles. The output is a two-dimensional electron image which preserves the spatial resolution of the original input radiation, but with a linear gain up to 1000. This may be used for exciting a phosphor screen placed close to the output, giving a visual representation of the radiation pattern. Alternatively, the electron image can be read out by, for example, a wedge-and-strip or fast delay-line anode array. We offer a broad range of sizes, shapes and options to support a number of imaging applications.

Read more about MCP and terms like: TruFlite™, MountingPad™, LongLife™, Stripline, etc.
