Light Mill Encoders

Magnetic Encoder Solutions

Our light mill duty modular magnetic encoders are cost efficient and easy to install. Did you know Bullseye32™ (AV32) encoders eliminate the top culprits that cause encoder failures: there are no bearings, no seals, no optics, no glass disks! And they don't require expensive mounting flanges like other no-bearing encoders. The PPR is also programmable at the customer!

7 products found

Light Mill Duty Encoders

Brushless Tachometer BC42 and BC46

Brushless Tachometer BC42 and BC46

Operating Power

110VAC, 0.25A

Current

-

Output Format

50, 100, or 200V/1000RPM

Frequency Range

-

Speed

5000 RPM Max.

Environmental

IP67 (Fully Encapsulated)

HS25A

HS25A

Operating Power

5 - 28 VDC

Current

50mA, no load

Output Format

A Quad B with marker (A,A–, B,B – , Z,Z – )

Frequency Range

0 to 125 KHz

Speed

6000 RPM Max.

Environmental

IP65

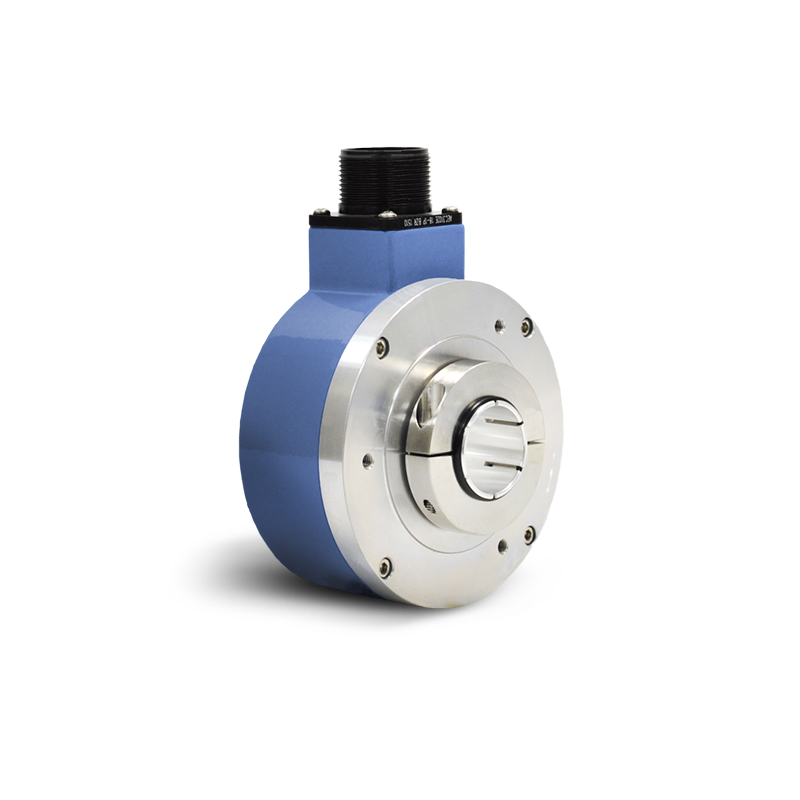

HS35A

HS35A

Operating Power

5 - 28 VDC

Current

50mA, no load

Output Format

A Quad B with marker (A,A–, B,B – , Z,Z – )

Frequency Range

0 to 125 KHz

Speed

6000 RPM Max.

Environmental

IP65

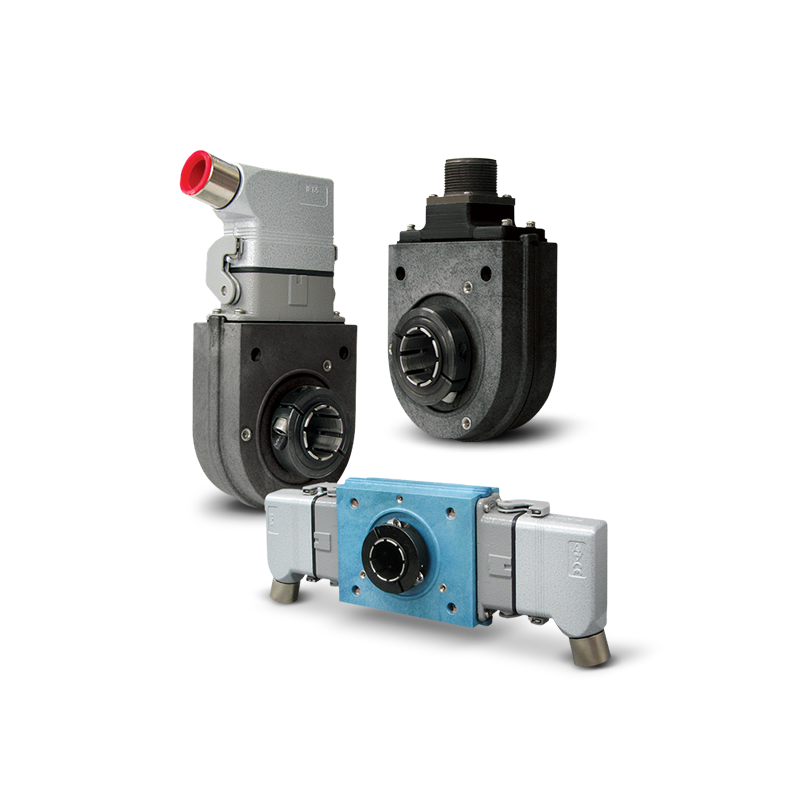

HS35M

HS35M

Operating Power

5 - 24 VDC

Current

80mA, no load

Output Format

A Quad B with marker (A,A–, B,B – , Z,Z – )

Frequency Range

0 to 165 KHz

Speed

4700 RPM Max.

Environmental

IP65, Nema 4, 13 Rating

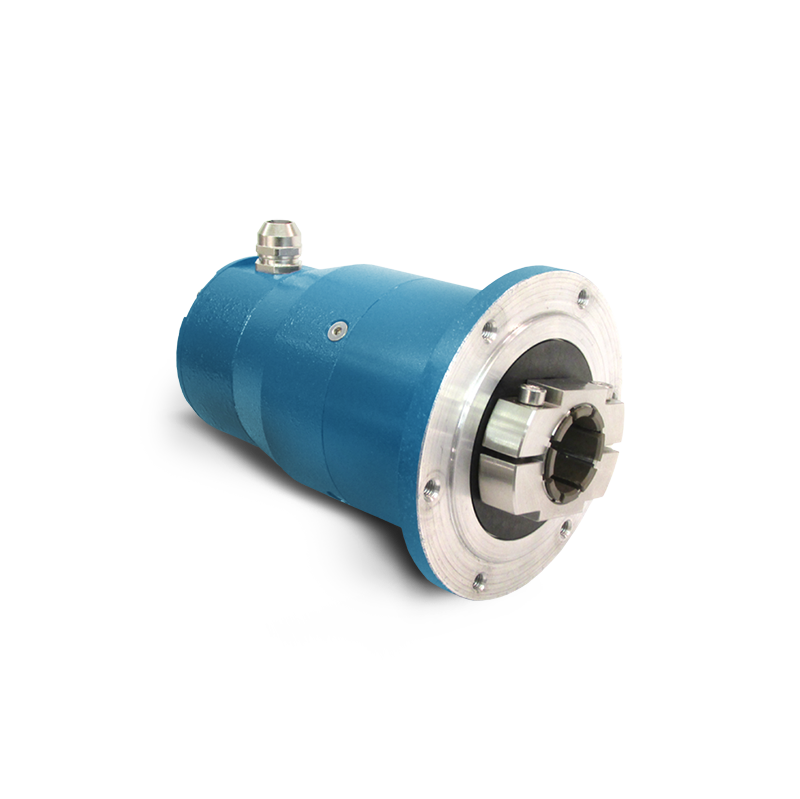

HS40

HS40

Operating Power

[SSI] 5-30 VDC, [Analog V Out] 12-30 VDC, [Analog I Out] 15-30 VDC

Current

[SSI] 30mA @ 24VDC, 125mA @ 5VDC, [Analog V Out] 15mA @ 24V, [Analog I Out] 40mA @ 24V

Output Format

Analog, SSI (future CANOpen, DeviceNet, J1939, Profibus)

Frequency Range

-

Speed

-

Environmental

IP65

HS45

HS45

Operating Power

5 - 24 VDC

Current

100mA nom, no load

Output Format

A Quad B with marker (A,A–, B,B – , Z,Z – )

Frequency Range

0 to 165 KHz

Speed

5000 RPM Max.

Environmental

IP65

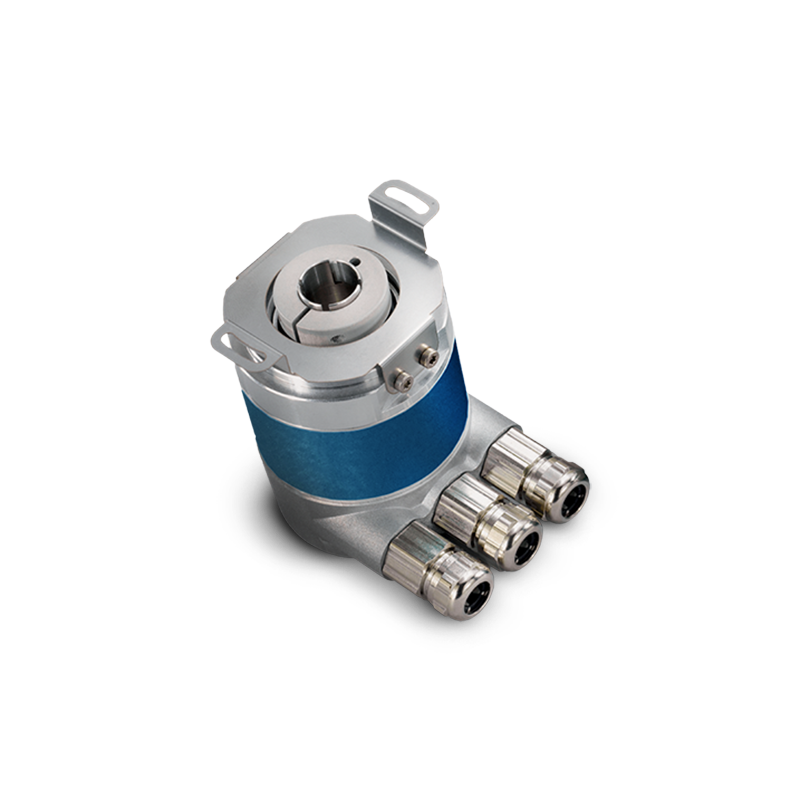

HS6A

HS6A

Operating Power

10 - 30 VDC

Current

230mA at 10V, 100mA at 24V maximum*

Output Format

Ethernet/IP, Modbus TCP, Profinet, Powerlink, Profibus, CANOpen, CANSafe, DeviceNet, SSI, Parallel

Frequency Range

-

Speed

-

Environmental

IP66

ProductOperating PowerCurrentOutput FormatFrequency RangeSpeedEnvironmentalPDF
Brushless Tachometer BC42 and BC46 110VAC, 0.25A - 50, 100, or 200V/1000RPM - 5000 RPM Max. IP67 (Fully Encapsulated) icon
HS25A 5 - 28 VDC 50mA, no load A Quad B with marker (A,A–, B,B – , Z,Z – ) 0 to 125 KHz 6000 RPM Max. IP65 icon
HS35A 5 - 28 VDC 50mA, no load A Quad B with marker (A,A–, B,B – , Z,Z – ) 0 to 125 KHz 6000 RPM Max. IP65 icon
HS35M 5 - 24 VDC 80mA, no load A Quad B with marker (A,A–, B,B – , Z,Z – ) 0 to 165 KHz 4700 RPM Max. IP65, Nema 4, 13 Rating icon
HS40 [SSI] 5-30 VDC, [Analog V Out] 12-30 VDC, [Analog I Out] 15-30 VDC [SSI] 30mA @ 24VDC, 125mA @ 5VDC, [Analog V Out] 15mA @ 24V, [Analog I Out] 40mA @ 24V Analog, SSI (future CANOpen, DeviceNet, J1939, Profibus) - - IP65 icon
HS45 5 - 24 VDC 100mA nom, no load A Quad B with marker (A,A–, B,B – , Z,Z – ) 0 to 165 KHz 5000 RPM Max. IP65 icon
HS6A 10 - 30 VDC 230mA at 10V, 100mA at 24V maximum* Ethernet/IP, Modbus TCP, Profinet, Powerlink, Profibus, CANOpen, CANSafe, DeviceNet, SSI, Parallel - - IP66 icon
