Accelerometers

Tactical & Navigation Grade

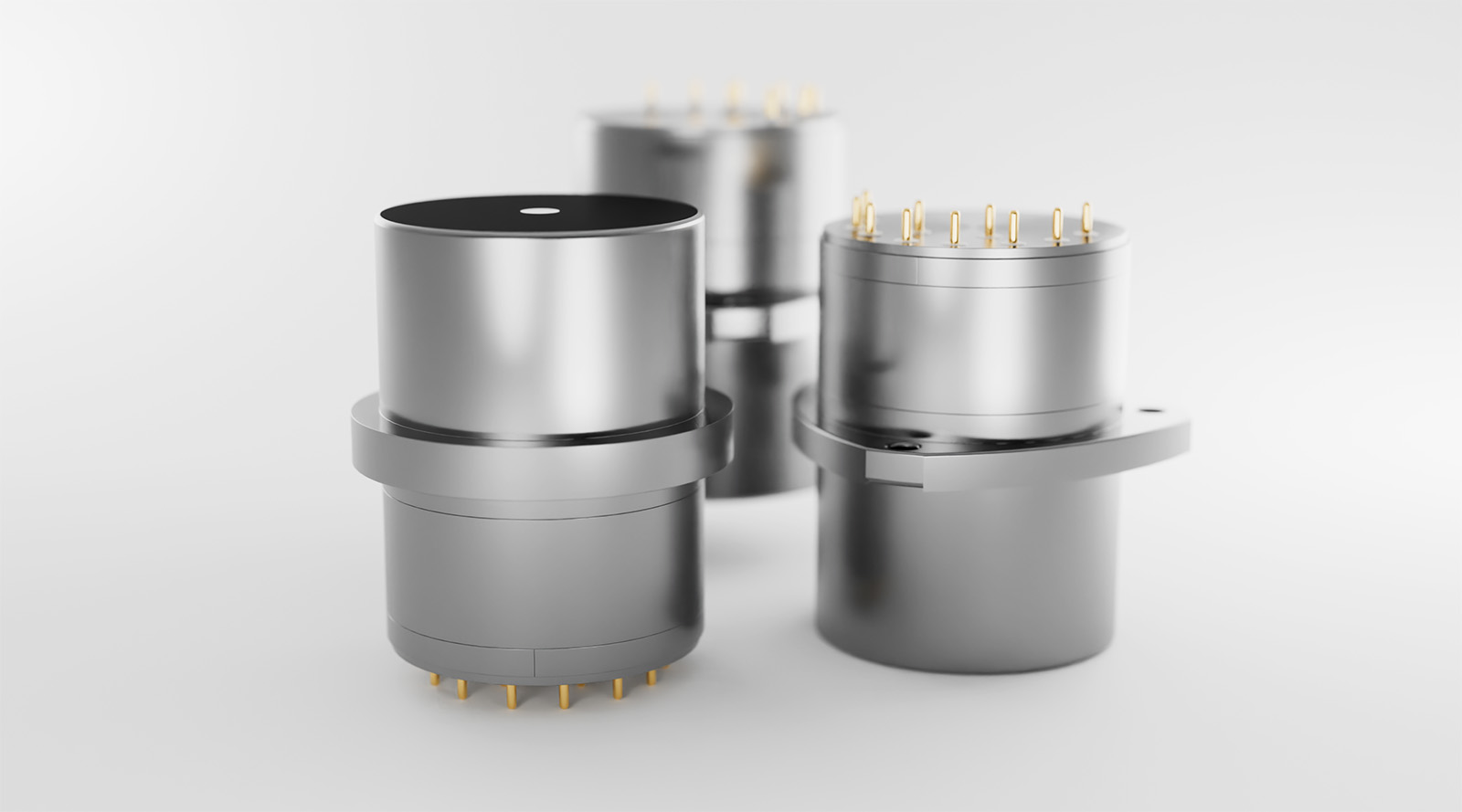

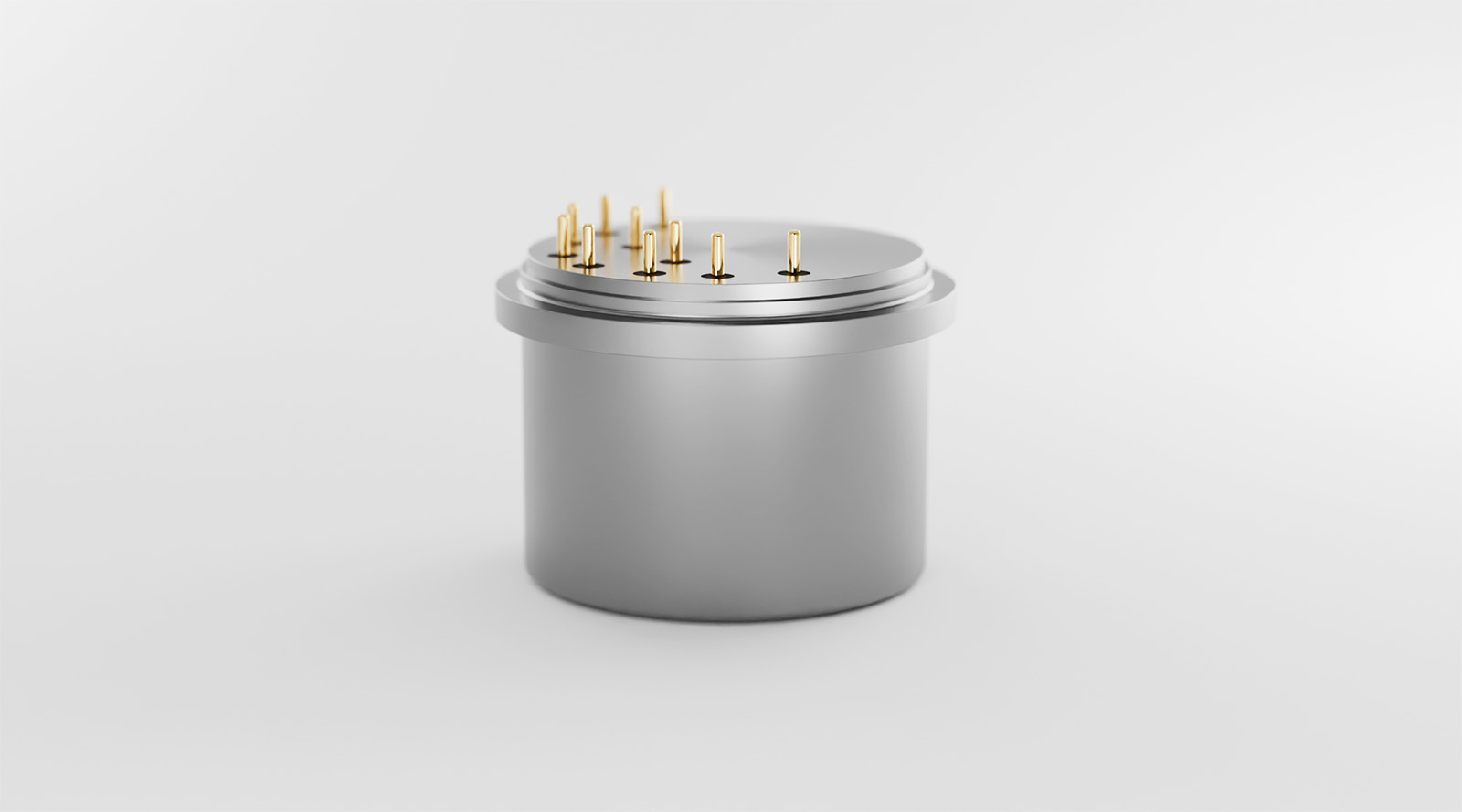

InnaLabs® AI-Q-Series Quartz Servo Accelerometers got compact and rugged design, replaces Honeywell accelerometers 1 to 1. Not only is it well priced but it is also ITAR-Free.

Download Tactical & Navigation Grade Accelerometers
Opens in new window
_{2.9 MB PDF-Document}

Are you interested in our products, please contact us today!

4 products found

Tactical Grade Accelerometers

AI-Q-1410

AI-Q-1410

Axis Misalignment	≤7000 µrad
Input Range	±60 g
Intrinsic Noise	<7 µg RMS (0-10 Hz)
Operating Temp.	-55 to +95°C
Shock	250 g
Vibration Peak Sine	20g @ 20 to 2000 Hz
Input Voltage	±13 to ±28 VDC

AI-Q-1410

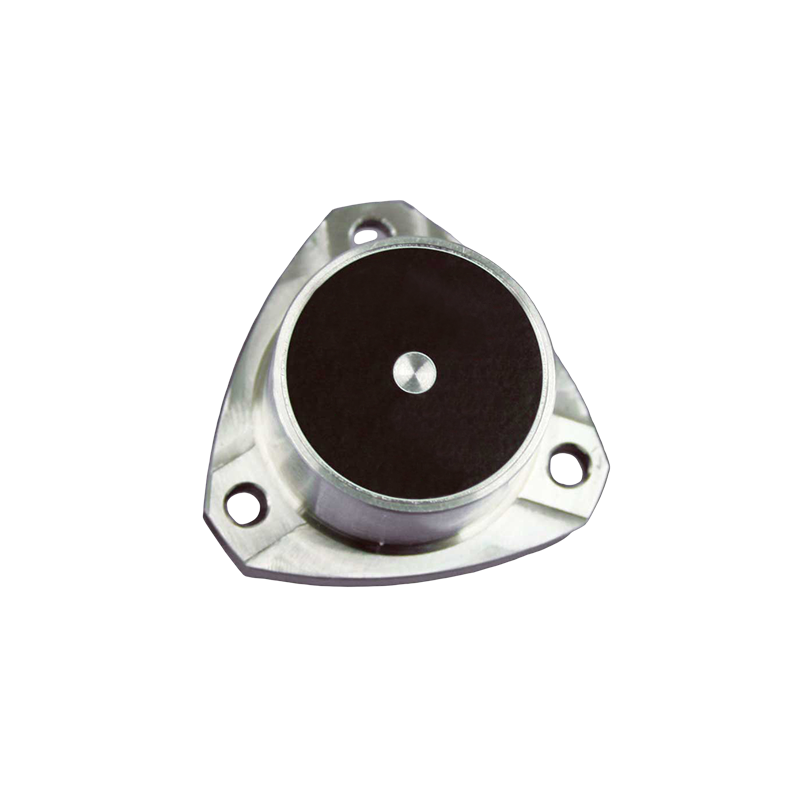

AI-Q-550

AI-Q-550

Axis Misalignment	≤1,500 μrad
Input Range	±80 g
Intrinsic Noise	≤1,500 μg RMS (500-10 kHz)
Operating Temp.	-55 to +105°C
Shock	250 g
Vibration Peak Sine	250
Input Voltage	±13 to ±28 VDC

AI-Q-550

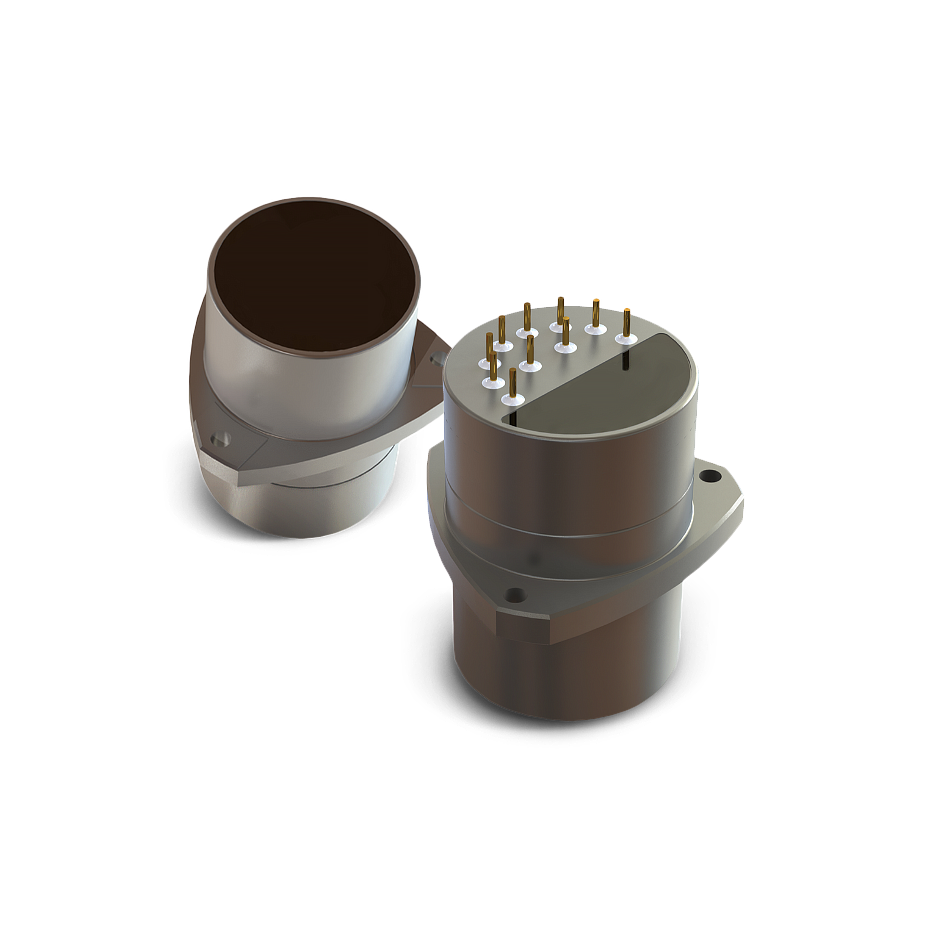

AI-Q-560

AI-Q-560

Axis Misalignment	≤1,500 μrad
Input Range	±15 g
Intrinsic Noise	≤7 (0-10 Hz), ≤70 (10-500 Hz), ≤1,500 (500-10000 Hz)
Operating Temp.	-55 to +105°C
Shock	250 g
Vibration Peak Sine	35g, Hz peak
Input Voltage	±13 to ±28 VDC

AI-Q-560

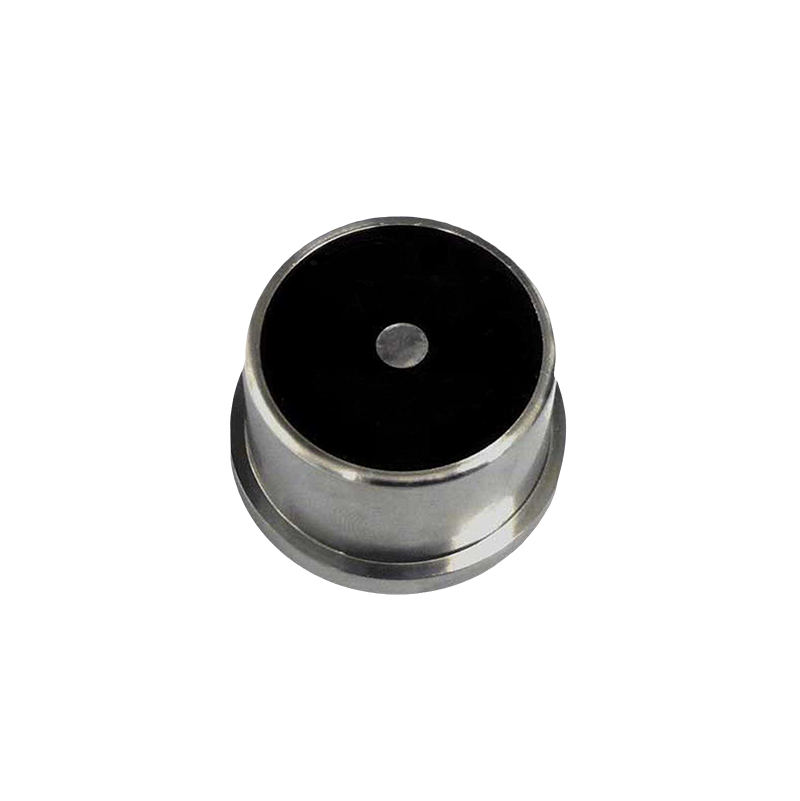

AI-Q-710

AI-Q-710

Axis Misalignment	≤2000 µrad
Input Range	±30 g
Intrinsic Noise	<7 µg RMS (0-10 Hz)
Operating Temp.	-55 to +96°C
Shock	250 g
Vibration Peak Sine	25g @ 20 to 2000 Hz
Input Voltage	±13 to ±28 VDC

AI-Q-710

	Product	Axis Misalignment	Input Range	Intrinsic Noise	Operating Temp.	Shock	Vibration Peak Sine	Input Voltage	PDF
	AI-Q-1410	≤7000 µrad	±60 g	<7 µg RMS (0-10 Hz)	-55 to +95°C	250 g	20g @ 20 to 2000 Hz	±13 to ±28 VDC
	AI-Q-550	≤1,500 μrad	±80 g	≤1,500 μg RMS (500-10 kHz)	-55 to +105°C	250 g	250	±13 to ±28 VDC
	AI-Q-560	≤1,500 μrad	±15 g	≤7 (0-10 Hz), ≤70 (10-500 Hz), ≤1,500 (500-10000 Hz)	-55 to +105°C	250 g	35g, Hz peak	±13 to ±28 VDC
	AI-Q-710	≤2000 µrad	±30 g	<7 µg RMS (0-10 Hz)	-55 to +96°C	250 g	25g @ 20 to 2000 Hz	±13 to ±28 VDC

8 products found

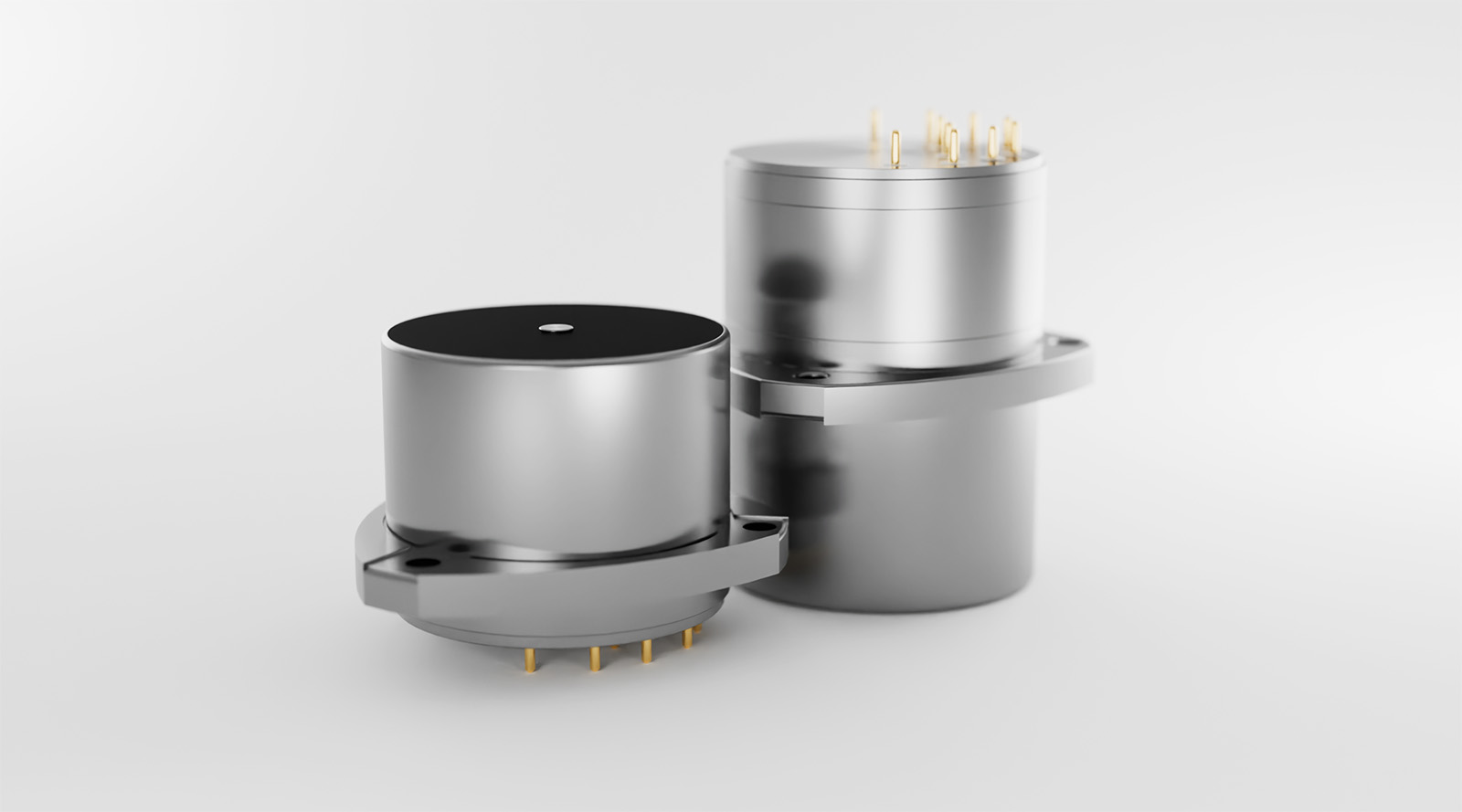

Navigation Grade Accelerometers

AI-Q-2010

AI-Q-2010

Axis Misalignment	≤2000 µrad
Input Range	±60 g
Intrinsic Noise	<7 µg RMS (0-10 Hz)
Operating Temp.	-55 to +95°C
Shock	250 g
Vibration Peak Sine	15g @ 20 to 2000 Hz
Input Voltage	±13 to ±28 VDC

AI-Q-2010

AI-Q-2020

AI-Q-2020

Axis Misalignment	≤2000 µrad
Input Range	±60 g
Intrinsic Noise	<70 µg RMS (10-500 Hz)
Operating Temp.	-55 to +95°C
Shock	250 g
Vibration Peak Sine	15g @ 20 to 2000 Hz
Input Voltage	±13 to ±28 VDC

AI-Q-2020

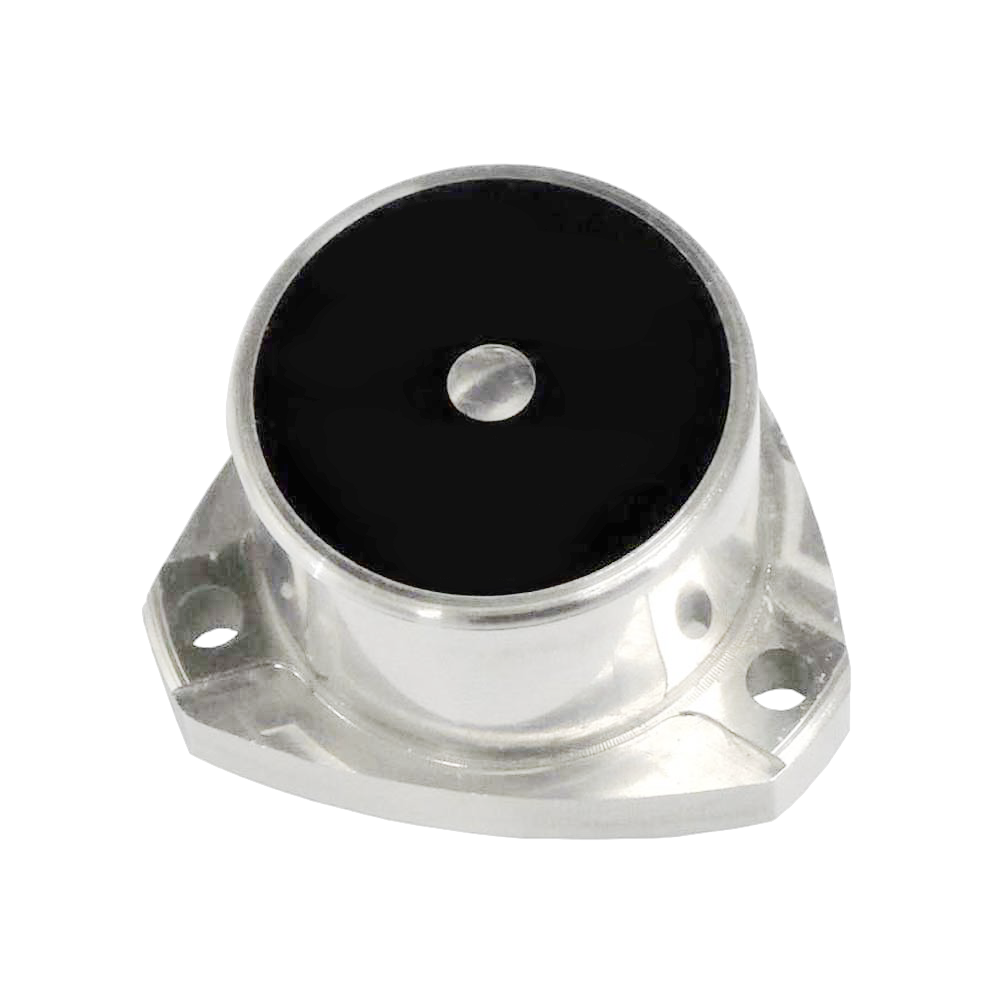

AI-Q-2030

AI-Q-2030

Axis Misalignment	≤2000 µrad
Input Range	±60 g
Intrinsic Noise	<7 µg RMS (0-10 Hz)
Operating Temp.	-55 to +95°C
Shock	250 g
Vibration Peak Sine	15g @ 20 to 2000 Hz
Input Voltage	±13 to ±28 VDC

AI-Q-2030

AI-Q-2050

AI-Q-2050

Axis Misalignment	< \|±2000\| µrad
Input Range	±13 g
Intrinsic Noise	<7 µg RMS (0-10 Hz)
Operating Temp.	-55 to +95°C
Shock	50 gpeak, 18ms
Vibration Peak Sine	2.5, 20 to 2000 Hz
Input Voltage	±13 to ±28 VDC

AI-Q-2050

AI-Q-2051

AI-Q-2051

Axis Misalignment	< \|±2000\| µrad
Input Range	±4.5 g
Intrinsic Noise	<7 µg RMS (0-10 Hz)
Operating Temp.	-55 to +95°C
Shock	50 gpeak, 18ms
Vibration Peak Sine	2.5, 20 to 2000 Hz
Input Voltage	±13 to ±28 VDC

AI-Q-2051

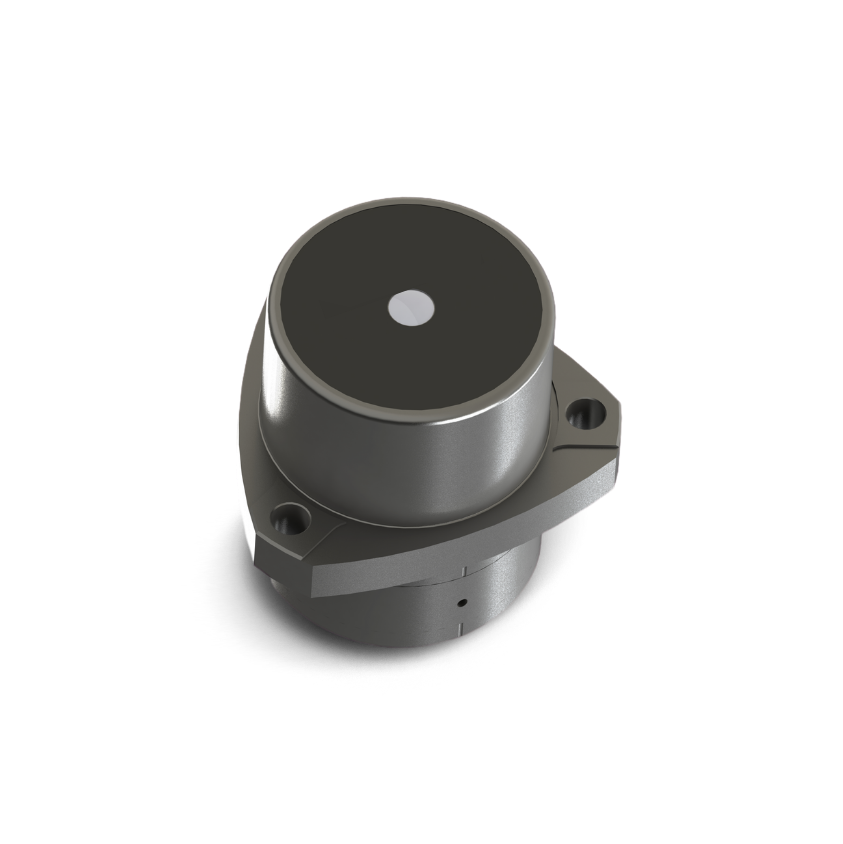

AI-Q-2110

AI-Q-2110

Axis Misalignment	≤2000 µrad
Input Range	±15 g
Intrinsic Noise	≤7 (0-10 Hz), ≤70 (10-500 Hz), ≤1,500 (500-10000 Hz)
Operating Temp.	-55 to +95°C
Shock	250 g
Vibration Peak Sine	15g @ 20 to 2000 Hz
Input Voltage	±13 to ±28 VDC

AI-Q-2110

AI-Q-2120

AI-Q-2120

Axis Misalignment	≤2000 µrad
Input Range	±15 g
Intrinsic Noise	≤7 (0-10 Hz), ≤70 (10-500 Hz), ≤1,500 (500-10000 Hz)
Operating Temp.	-55 to +95°C
Shock	250 g
Vibration Peak Sine	15g @ 20 to 2000 Hz
Input Voltage	±13 to ±28 VDC

AI-Q-2120

AI-Q-2130

AI-Q-2130

Axis Misalignment	≤2000 µrad
Input Range	±15 g
Intrinsic Noise	≤7 (0-10 Hz), ≤70 (10-500 Hz), ≤1,500 (500-10000 Hz)
Operating Temp.	-55 to +95°C
Shock	250 g
Vibration Peak Sine	15g @ 20 to 2000 Hz
Input Voltage	±13 to ±28 VDC

AI-Q-2130

	Product	Axis Misalignment	Input Range	Intrinsic Noise	Operating Temp.	Shock	Vibration Peak Sine	Input Voltage	PDF
	AI-Q-2010	≤2000 µrad	±60 g	<7 µg RMS (0-10 Hz)	-55 to +95°C	250 g	15g @ 20 to 2000 Hz	±13 to ±28 VDC
	AI-Q-2020	≤2000 µrad	±60 g	<70 µg RMS (10-500 Hz)	-55 to +95°C	250 g	15g @ 20 to 2000 Hz	±13 to ±28 VDC
	AI-Q-2030	≤2000 µrad	±60 g	<7 µg RMS (0-10 Hz)	-55 to +95°C	250 g	15g @ 20 to 2000 Hz	±13 to ±28 VDC
	AI-Q-2050	< \|±2000\| µrad	±13 g	<7 µg RMS (0-10 Hz)	-55 to +95°C	50 gpeak, 18ms	2.5, 20 to 2000 Hz	±13 to ±28 VDC
	AI-Q-2051	< \|±2000\| µrad	±4.5 g	<7 µg RMS (0-10 Hz)	-55 to +95°C	50 gpeak, 18ms	2.5, 20 to 2000 Hz	±13 to ±28 VDC
	AI-Q-2110	≤2000 µrad	±15 g	≤7 (0-10 Hz), ≤70 (10-500 Hz), ≤1,500 (500-10000 Hz)	-55 to +95°C	250 g	15g @ 20 to 2000 Hz	±13 to ±28 VDC
	AI-Q-2120	≤2000 µrad	±15 g	≤7 (0-10 Hz), ≤70 (10-500 Hz), ≤1,500 (500-10000 Hz)	-55 to +95°C	250 g	15g @ 20 to 2000 Hz	±13 to ±28 VDC
	AI-Q-2130	≤2000 µrad	±15 g	≤7 (0-10 Hz), ≤70 (10-500 Hz), ≤1,500 (500-10000 Hz)	-55 to +95°C	250 g	15g @ 20 to 2000 Hz	±13 to ±28 VDC
