Standard & Modified Slip Rings

We deliver your solution

The X Series uses multiple contact point technology, allowing for low contact electric resistance between brushes and ring. This reduces electrical noise and the slip ring gets a longer lifetime.



Modify after your requirements

Modification of our standard slip rings is a great way of reducing costs when needing to match your projects requirements but you don't want to buy a customized solution.

We offer a wide range of specifications to modify according to your application needs. Such as flange variation, hollow shaft size, length, number of rings, IP-Rating, cables, data transfer, connectors and so on.

Get in touch with us for more information and help on how to modify your slip ring to meet your projects requirements!

⟶  Contact us now!

6 products found

Compact Slip Rings

X12 Compact

X12 Compact

Rated Voltage

240 VAC

Current

2A

No. of Rings

6-18

Max. Operating Speed

0~300 rpm

Diameter

Ø12 mm

Temp. Range

-20°C to 80°C

Hollow Shaft

None

X18 Compact

X18 Compact

Rated Voltage

240 VAC

Current

2A

No. of Rings

6-14

Max. Operating Speed

0~300 rpm

Diameter

Ø18 mm

Temp. Range

-20°C to 80°C

Hollow Shaft

None

X22 Compact

X22 Compact

Rated Voltage

240 VAC

Current

2A

No. of Rings

6-36

Max. Operating Speed

0~300 rpm

Diameter

Ø22 mm

Temp. Range

-20°C to 80°C

Hollow Shaft

None

X25 Compact

X25 Compact

Rated Voltage

240 VAC

Current

2A + 6A + 10A

No. of Rings

6-56

Max. Operating Speed

0~300 rpm

Diameter

Ø25 mm

Temp. Range

-20°C to 80°C

Hollow Shaft

None

X32 Compact

X32 Compact

Rated Voltage

240 VAC

Current

2A + 14A

No. of Rings

2, 3, 4, 5

Max. Operating Speed

400 rpm

Diameter

Ø29~ mm

Temp. Range

-20°C to 80°C

Hollow Shaft

None

X45 Compact

X45 Compact

Rated Voltage

240 VAC

Current

2A + 14A

No. of Rings

6, 8

Max. Operating Speed

0~400 rpm

Diameter

Ø45 mm

Temp. Range

-20°C to 80°C

Hollow Shaft

None

ProductRated VoltageCurrentNo. of RingsMax. Operating SpeedDiameterTemp. RangeHollow ShaftPDF
X12 Compact 240 VAC 2A 6-18 0~300 rpm Ø12 mm -20°C to 80°C None icon
X18 Compact 240 VAC 2A 6-14 0~300 rpm Ø18 mm -20°C to 80°C None icon
X22 Compact 240 VAC 2A 6-36 0~300 rpm Ø22 mm -20°C to 80°C None icon
X25 Compact 240 VAC 2A + 6A + 10A 6-56 0~300 rpm Ø25 mm -20°C to 80°C None icon
X32 Compact 240 VAC 2A + 14A 2, 3, 4, 5 400 rpm Ø29~ mm -20°C to 80°C None icon
X45 Compact 240 VAC 2A + 14A 6, 8 0~400 rpm Ø45 mm -20°C to 80°C None icon
7 products found

Through Bore Slip Rings

X03 Hollow shaft

X03 Hollow shaft

Rated Voltage

240 VAC

Current

2A

No. of Rings

2-8

Max. Operating Speed

250 rpm

Diameter

Ø17 mm

Temp. Range

-20°C to 80°C

Hollow Shaft

Ø3 mm

X04 Hollow shaft

X04 Hollow shaft

Rated Voltage

240 VAC

Current

2A

No. of Rings

8-24

Max. Operating Speed

250 rpm

Diameter

Ø22 mm

Temp. Range

-20°C to 80°C

Hollow Shaft

Ø4.5 mm

X12 Hollow shaft

X12 Hollow shaft

Rated Voltage

240 VAC

Current

5A

No. of Rings

6-24

Max. Operating Speed

0~400 rpm

Diameter

Ø54 mm

Temp. Range

-20°C to 80°C

Hollow Shaft

Ø12.7 mm

X25 Hollow shaft

X25 Hollow shaft

Rated Voltage

Power: 380VAC + Signals: 240VAC/VDC

Current

2A + 10A + 14A

No. of Rings

6-48

Max. Operating Speed

250 / 500 rpm

Diameter

Ø78 mm

Temp. Range

-20°C to 80°C

Hollow Shaft

Ø25.4 mm

X38 Hollow shaft

X38 Hollow shaft

Rated Voltage

Power: 380VAC + Signals: 240VAC/VDC

Current

2A + 10A + 14A

No. of Rings

6-48

Max. Operating Speed

250 / 500 rpm

Diameter

Ø99 mm

Temp. Range

-20°C to 80°C

Hollow Shaft

Ø38.1 mm

X50 Hollow shaft

X50 Hollow shaft

Rated Voltage

Power: 380VAC + Signals: 240VAC/VDC

Current

2A + 10A + 14A

No. of Rings

6-72

Max. Operating Speed

250 / 500 rpm

Diameter

Ø120 mm

Temp. Range

-20°C to 80°C

Hollow Shaft

Ø50 mm

X60 Hollow shaft

X60 Hollow shaft

Rated Voltage

Power: 380VAC + Signals: 240VAC/VDC

Current

2A + 10A + 14A

No. of Rings

6-96

Max. Operating Speed

250 / 500 rpm

Diameter

Ø135 mm

Temp. Range

-20°C to 80°C

Hollow Shaft

Ø60 mm

ProductRated VoltageCurrentNo. of RingsMax. Operating SpeedDiameterTemp. RangeHollow ShaftPDF
X03 Hollow shaft 240 VAC 2A 2-8 250 rpm Ø17 mm -20°C to 80°C Ø3 mm icon
X04 Hollow shaft 240 VAC 2A 8-24 250 rpm Ø22 mm -20°C to 80°C Ø4.5 mm icon
X12 Hollow shaft 240 VAC 5A 6-24 0~400 rpm Ø54 mm -20°C to 80°C Ø12.7 mm icon
X25 Hollow shaft Power: 380VAC + Signals: 240VAC/VDC 2A + 10A + 14A 6-48 250 / 500 rpm Ø78 mm -20°C to 80°C Ø25.4 mm icon
X38 Hollow shaft Power: 380VAC + Signals: 240VAC/VDC 2A + 10A + 14A 6-48 250 / 500 rpm Ø99 mm -20°C to 80°C Ø38.1 mm icon
X50 Hollow shaft Power: 380VAC + Signals: 240VAC/VDC 2A + 10A + 14A 6-72 250 / 500 rpm Ø120 mm -20°C to 80°C Ø50 mm icon
X60 Hollow shaft Power: 380VAC + Signals: 240VAC/VDC 2A + 10A + 14A 6-96 250 / 500 rpm Ø135 mm -20°C to 80°C Ø60 mm icon
17 products found

Modified Compact Slip Ring

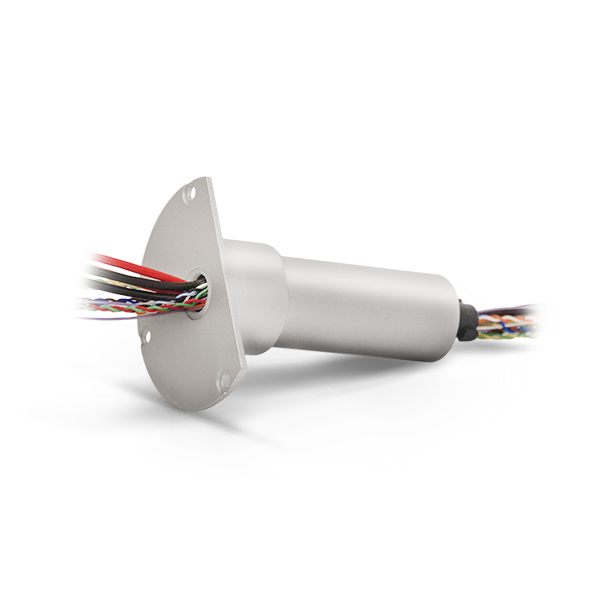

001 Compact Slip Ring

001 Compact Slip Ring

Rated Voltage

48 VAC

Current

1A + 25A

No. of Rings

24-36

Max. Operating Speed

250 rpm

Diameter

Ø135 mm

Temp. Range

-20°C to 95°C

Hollow Shaft

None

005 Compact Slip Ring

005 Compact Slip Ring

Rated Voltage

240 VAC

Current

2A + 6A

No. of Rings

12-24

Max. Operating Speed

250 rpm

Diameter

-

Temp. Range

-40°C to 85°C

Hollow Shaft

None

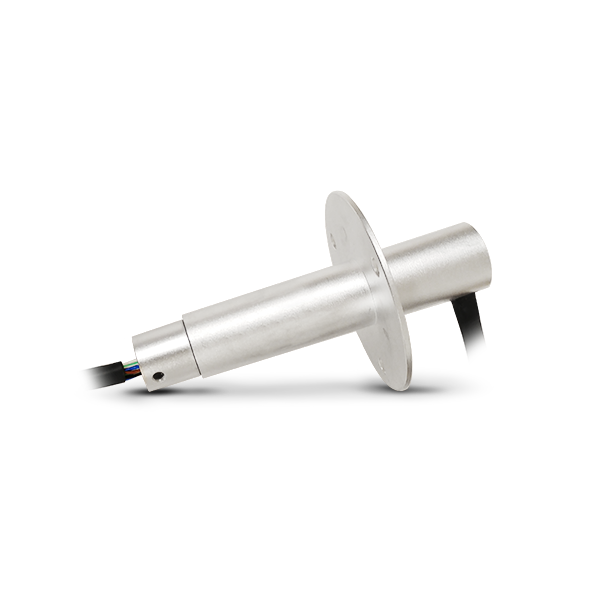

006 Compact Slip Ring

006 Compact Slip Ring

Rated Voltage

240 VAC

Current

2A + 10A

No. of Rings

18-36

Max. Operating Speed

250 rpm

Diameter

-

Temp. Range

-40°C to 85°C

Hollow Shaft

None

009 Compact Slip Ring

009 Compact Slip Ring

Rated Voltage

240 VAC

Current

2A

No. of Rings

36

Max. Operating Speed

250 rpm

Diameter

-

Temp. Range

-40°C to 85°C

Hollow Shaft

None

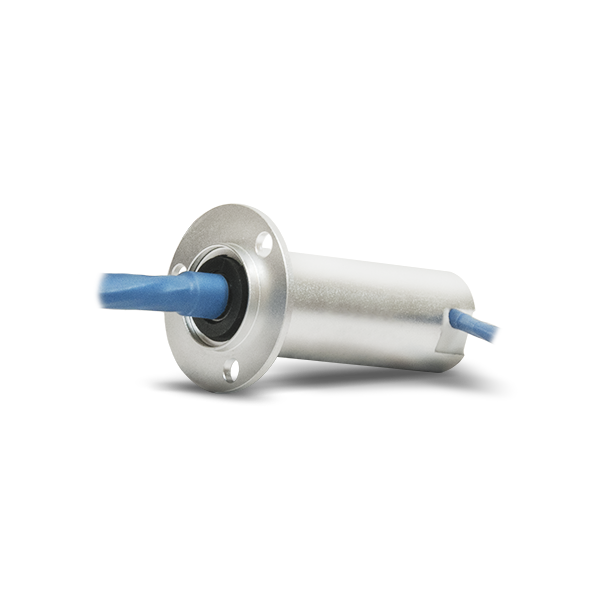

010 Compact Slip Ring

010 Compact Slip Ring

Rated Voltage

240 VAC

Current

2A

No. of Rings

36

Max. Operating Speed

250 rpm

Diameter

-

Temp. Range

-40°C to 85°C

Hollow Shaft

None

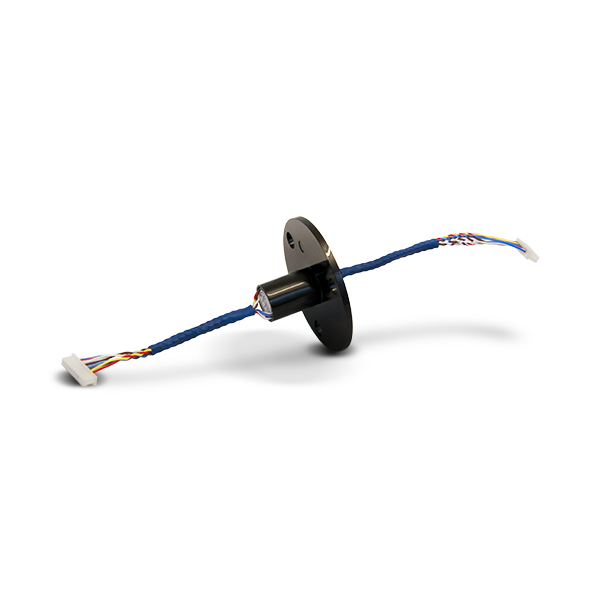

011 Compact Slip Ring

011 Compact Slip Ring

Rated Voltage

120 VAC

Current

2A

No. of Rings

6-12

Max. Operating Speed

250 rpm

Diameter

-

Temp. Range

-20°C to 95°C

Hollow Shaft

None

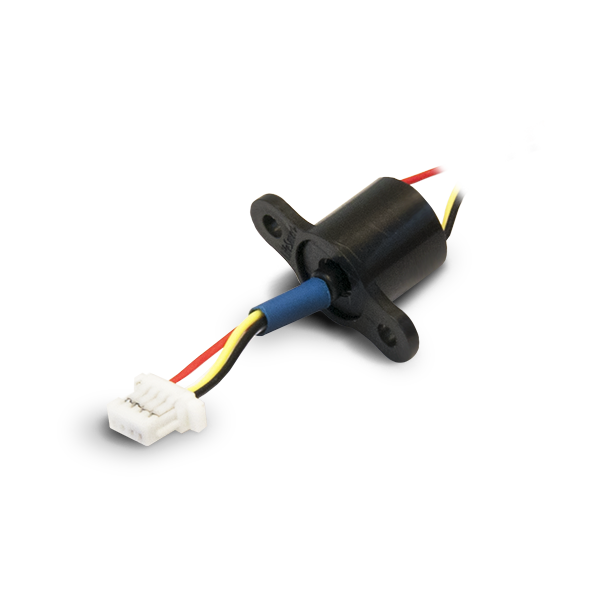

012 Compact Slip Ring

012 Compact Slip Ring

Rated Voltage

48 VAC

Current

2A

No. of Rings

3-6

Max. Operating Speed

250 rpm

Diameter

-

Temp. Range

-20°C to 95°C

Hollow Shaft

None

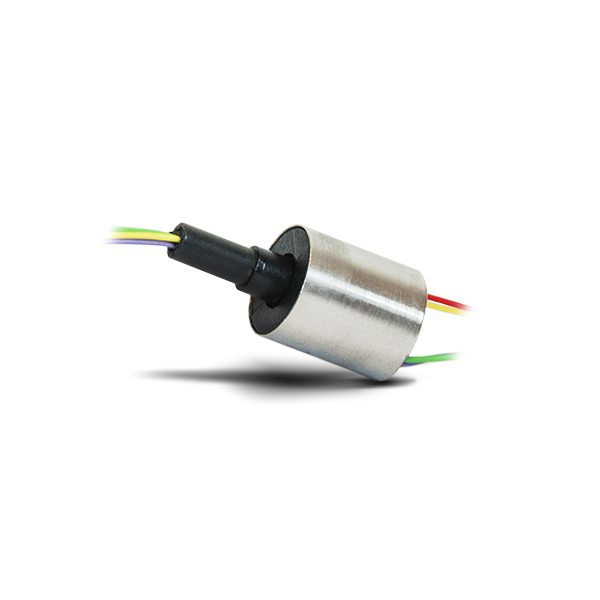

013 Compact Slip Ring

013 Compact Slip Ring

Rated Voltage

300 VAC

Current

1 A

No. of Rings

4-6

Max. Operating Speed

1600 rpm

Diameter

-

Temp. Range

-5°C to 500°C

Hollow Shaft

None

014 Compact Slip Ring

014 Compact Slip Ring

Rated Voltage

240 VAC

Current

12A

No. of Rings

4

Max. Operating Speed

250 rpm

Diameter

-

Temp. Range

-20°C to 80°C

Hollow Shaft

None

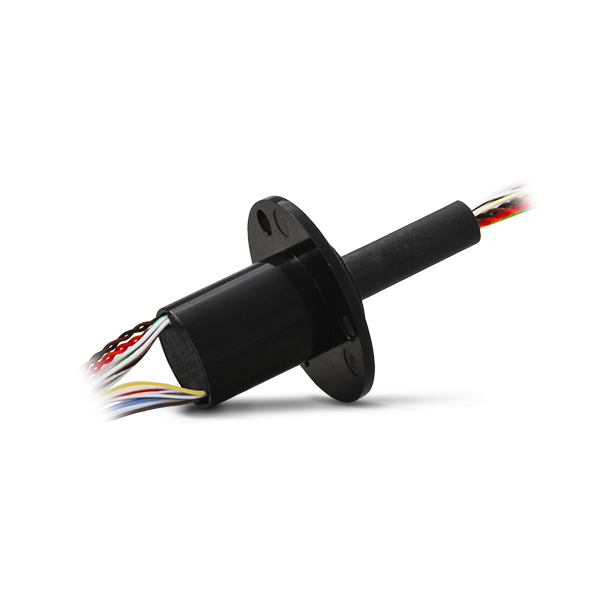

015 Compact Slip Ring

015 Compact Slip Ring

Rated Voltage

220 VAC

Current

2A

No. of Rings

20

Max. Operating Speed

250 rpm

Diameter

-

Temp. Range

-20°C to 80°C

Hollow Shaft

None

016 Compact Slip Ring

016 Compact Slip Ring

Rated Voltage

220 VAC

Current

2A + 15A

No. of Rings

24

Max. Operating Speed

250 rpm

Diameter

-

Temp. Range

-20°C to 80°C

Hollow Shaft

None

017 Compact Slip Ring

017 Compact Slip Ring

Rated Voltage

230VAC

Current

2A

No. of Rings

30

Max. Operating Speed

250 rpm

Diameter

Ø25 mm

Temp. Range

-20°C to 80°C

Hollow Shaft

None

018 Compact Slip Ring

018 Compact Slip Ring

Rated Voltage

230VAC

Current

2A

No. of Rings

26

Max. Operating Speed

250 rpm

Diameter

Ø25 mm

Temp. Range

-20°C to 80°C

Hollow Shaft

None

019 Compact Slip Ring

019 Compact Slip Ring

Rated Voltage

230VAC

Current

2A

No. of Rings

6

Max. Operating Speed

250 rpm

Diameter

Ø12 mm

Temp. Range

-20°C to 80°C

Hollow Shaft

None

Compact Slip Ring

Compact Slip Ring

Rated Voltage

240 VAC

Current

2A

No. of Rings

12-24

Max. Operating Speed

250 rpm

Diameter

-

Temp. Range

-40°C to 80°C

Hollow Shaft

None

High IP Compact Slip Ring

High IP Compact Slip Ring

Rated Voltage

240 VAC

Current

2A + 10A

No. of Rings

24-36

Max. Operating Speed

250 rpm

Diameter

-

Temp. Range

-40°C to 85°C

Hollow Shaft

None

Small Compact Slip Ring

Small Compact Slip Ring

Rated Voltage

240 VAC

Current

2A

No. of Rings

36-48

Max. Operating Speed

250 rpm

Diameter

-

Temp. Range

-40°C to 80°C

Hollow Shaft

Ø3 mm

ProductRated VoltageCurrentNo. of RingsMax. Operating SpeedDiameterTemp. RangeHollow ShaftPDF
001 Compact Slip Ring 48 VAC 1A + 25A 24-36 250 rpm Ø135 mm -20°C to 95°C None
005 Compact Slip Ring 240 VAC 2A + 6A 12-24 250 rpm - -40°C to 85°C None
006 Compact Slip Ring 240 VAC 2A + 10A 18-36 250 rpm - -40°C to 85°C None
009 Compact Slip Ring 240 VAC 2A 36 250 rpm - -40°C to 85°C None
010 Compact Slip Ring 240 VAC 2A 36 250 rpm - -40°C to 85°C None
011 Compact Slip Ring 120 VAC 2A 6-12 250 rpm - -20°C to 95°C None
012 Compact Slip Ring 48 VAC 2A 3-6 250 rpm - -20°C to 95°C None
013 Compact Slip Ring 300 VAC 1 A 4-6 1600 rpm - -5°C to 500°C None
014 Compact Slip Ring 240 VAC 12A 4 250 rpm - -20°C to 80°C None
015 Compact Slip Ring 220 VAC 2A 20 250 rpm - -20°C to 80°C None
016 Compact Slip Ring 220 VAC 2A + 15A 24 250 rpm - -20°C to 80°C None
017 Compact Slip Ring 230VAC 2A 30 250 rpm Ø25 mm -20°C to 80°C None
018 Compact Slip Ring 230VAC 2A 26 250 rpm Ø25 mm -20°C to 80°C None
019 Compact Slip Ring 230VAC 2A 6 250 rpm Ø12 mm -20°C to 80°C None
Compact Slip Ring 240 VAC 2A 12-24 250 rpm - -40°C to 80°C None
High IP Compact Slip Ring 240 VAC 2A + 10A 24-36 250 rpm - -40°C to 85°C None
Small Compact Slip Ring 240 VAC 2A 36-48 250 rpm - -40°C to 80°C Ø3 mm
13 products found

Modified Through Bore Slip Ring

001 Through Bore Slip Ring

001 Through Bore Slip Ring

Rated Voltage

600 VAC

Current

2A + 10A

No. of Rings

36-72

Max. Operating Speed

250 rpm

Diameter

-

Temp. Range

-40°C to 85°C

Hollow Shaft

Ø40 mm

002 Through Bore Slip Ring

002 Through Bore Slip Ring

Rated Voltage

480 VAC

Current

10A

No. of Rings

6-24

Max. Operating Speed

250 rpm

Diameter

-

Temp. Range

-40°C to 85°C

Hollow Shaft

Ø10 mm

003 Through Bore Slip Ring

003 Through Bore Slip Ring

Rated Voltage

1000 VAC

Current

2A + 20 A

No. of Rings

-

Max. Operating Speed

40 rpm

Diameter

-

Temp. Range

-40°C to 80°C

Hollow Shaft

Up to Ø220 mm

004 Through Bore Slip Ring

004 Through Bore Slip Ring

Rated Voltage

380 VAC

Current

5A + 10A

No. of Rings

6-12

Max. Operating Speed

250 rpm

Diameter

-

Temp. Range

-20°C to 80°C

Hollow Shaft

Ø12 mm

006 Through Bore Slip Ring

006 Through Bore Slip Ring

Rated Voltage

600 VAC

Current

2A + 20 A

No. of Rings

36-48

Max. Operating Speed

250 rpm

Diameter

-

Temp. Range

-20°C to 80°C

Hollow Shaft

Ø40 mm

008 Through Bore Slip Ring

008 Through Bore Slip Ring

Rated Voltage

600 VAC

Current

2A + 10A

No. of Rings

24-48

Max. Operating Speed

100 rpm

Diameter

-

Temp. Range

-40°C to +65°C

Hollow Shaft

Ø150-200 mm

009 Through Bore Slip Ring

009 Through Bore Slip Ring

Rated Voltage

600 VAC

Current

2A + 10A

No. of Rings

24-48

Max. Operating Speed

250 rpm

Diameter

-

Temp. Range

-20°C to 80°C

Hollow Shaft

Ø50-70 mm

010 Through Bore Slip Ring

010 Through Bore Slip Ring

Rated Voltage

600 VAC

Current

10A

No. of Rings

12-24

Max. Operating Speed

1000 rpm

Diameter

-

Temp. Range

0°C to 150°C

Hollow Shaft

Ø40 mm

011 Through Bore Slip Ring

011 Through Bore Slip Ring

Rated Voltage

690 VAC

Current

40A

No. of Rings

22

Max. Operating Speed

0-5 rpm

Diameter

-

Temp. Range

-20°C to 80°C

Hollow Shaft

Ø170 mm

012 Through Bore Slip Ring

012 Through Bore Slip Ring

Rated Voltage

690 VAC

Current

40A

No. of Rings

22

Max. Operating Speed

0-5 rpm

Diameter

-

Temp. Range

-20°C to 80°C

Hollow Shaft

Ø170 mm

014 Through Bore

014 Through Bore

Rated Voltage

60 VAC

Current

5A

No. of Rings

43

Max. Operating Speed

50 rpm, higher on request (Maximum)

Diameter

-

Temp. Range

-20°C to 80°C

Hollow Shaft

Ø12,7 mm

015 Through Bore

015 Through Bore

Rated Voltage

600 VAC

Current

4x20A + Profinet

No. of Rings

10

Max. Operating Speed

250 rpm

Diameter

-

Temp. Range

-20°C to 80°C

Hollow Shaft

Ø38 mm

016 Through Bore Slip Ring

016 Through Bore Slip Ring

Rated Voltage

400 VAC

Current

60A

No. of Rings

24

Max. Operating Speed

400 rpm

Diameter

-

Temp. Range

-20°C to 80°C

Hollow Shaft

Up to Ø100 mm

ProductRated VoltageCurrentNo. of RingsMax. Operating SpeedDiameterTemp. RangeHollow ShaftPDF
001 Through Bore Slip Ring 600 VAC 2A + 10A 36-72 250 rpm - -40°C to 85°C Ø40 mm
002 Through Bore Slip Ring 480 VAC 10A 6-24 250 rpm - -40°C to 85°C Ø10 mm
003 Through Bore Slip Ring 1000 VAC 2A + 20 A - 40 rpm - -40°C to 80°C Up to Ø220 mm
004 Through Bore Slip Ring 380 VAC 5A + 10A 6-12 250 rpm - -20°C to 80°C Ø12 mm
006 Through Bore Slip Ring 600 VAC 2A + 20 A 36-48 250 rpm - -20°C to 80°C Ø40 mm
008 Through Bore Slip Ring 600 VAC 2A + 10A 24-48 100 rpm - -40°C to +65°C Ø150-200 mm
009 Through Bore Slip Ring 600 VAC 2A + 10A 24-48 250 rpm - -20°C to 80°C Ø50-70 mm
010 Through Bore Slip Ring 600 VAC 10A 12-24 1000 rpm - 0°C to 150°C Ø40 mm
011 Through Bore Slip Ring 690 VAC 40A 22 0-5 rpm - -20°C to 80°C Ø170 mm
012 Through Bore Slip Ring 690 VAC 40A 22 0-5 rpm - -20°C to 80°C Ø170 mm
014 Through Bore 60 VAC 5A 43 50 rpm, higher on request (Maximum) - -20°C to 80°C Ø12,7 mm
015 Through Bore 600 VAC 4x20A + Profinet 10 250 rpm - -20°C to 80°C Ø38 mm
016 Through Bore Slip Ring 400 VAC 60A 24 400 rpm - -20°C to 80°C Up to Ø100 mm
