We deliver your solution

Besides the standard assortment, Penlink has the capability to provide customized Slip Rings, Rotary Base Junctions and Rotary Joints.

The customized Slip Ring can be fully designed based on requirements from the customer. We implement different technologies to comply with our customer’s specifications.

We can and offer contacting and non-contacting solutions for all types of electrical power, electrical signals and data, optical signals, media (fluid, gas) and combinations of all these transmission technologies.

We can also design and test to comply with special requirements for the environmental specification such as; EMC, Temperature, Shock and Vibration, MIL-STD, Certification: DNV, ATEX, IECEX etc.

⟶ Contact us for more information!

38 products found

Customized Slip Rings

001 Custom Slip Ring

001 Custom Slip Ring

Rated Voltage

600 VAC

Current

2A + 15A

No. of Rings

6-48

Max. Operating Speed

1000 rpm

Diameter

-

Temp. Range

-40°C to 85°C

Hollow Shaft

Ø20-50 mm

002 Custom Slip Ring

002 Custom Slip Ring

Rated Voltage

480 VAC

Current

2A + 30A

No. of Rings

50-200

Max. Operating Speed

200 rpm

Diameter

-

Temp. Range

-10°C to 100°C

Hollow Shaft

None

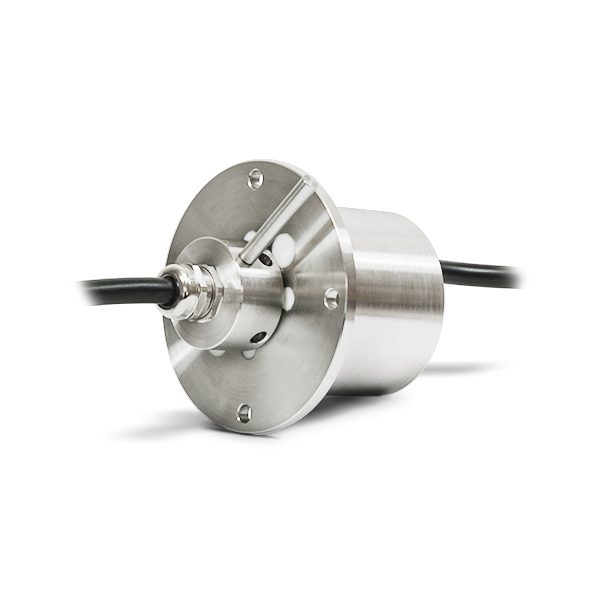

003 Custom Slip Ring

003 Custom Slip Ring

Rated Voltage

380 VAC

Current

2A + 20 A

No. of Rings

30-60

Max. Operating Speed

60 rpm

Diameter

-

Temp. Range

-20°C to 80°C

Hollow Shaft

Ø20-30 mm

004 Custom Slip Ring

004 Custom Slip Ring

Rated Voltage

1000 VAC

Current

2A + 50A

No. of Rings

120-200

Max. Operating Speed

20 rpm

Diameter

-

Temp. Range

-40°C to 85°C

Hollow Shaft

None

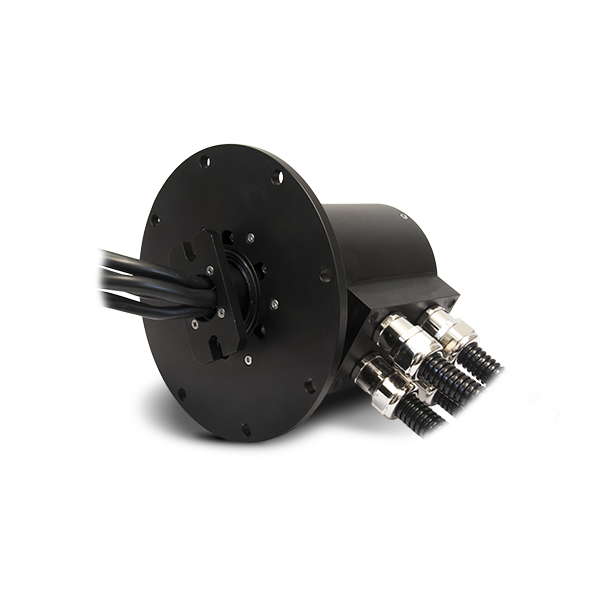

005 Custom Slip Ring

005 Custom Slip Ring

Rated Voltage

100 VAC

Current

2A + 20 A

No. of Rings

70-96

Max. Operating Speed

100 rpm

Diameter

-

Temp. Range

-40°C to 85°C

Hollow Shaft

None

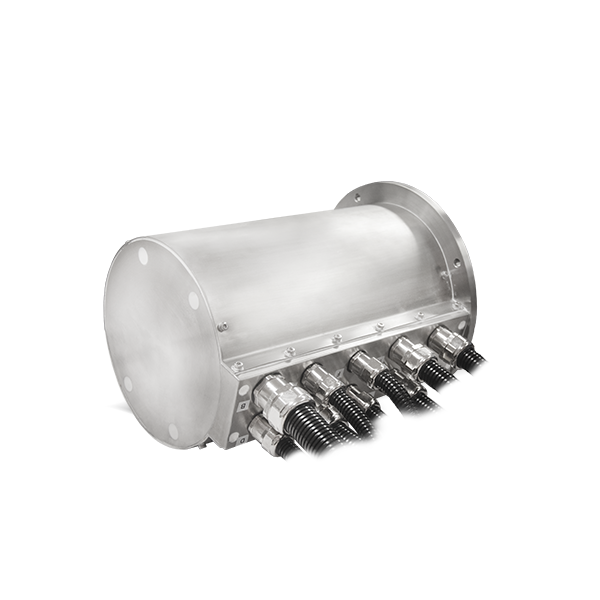

006 Custom Slip Ring

006 Custom Slip Ring

Rated Voltage

600 VAC

Current

2A + 30A

No. of Rings

60

Max. Operating Speed

100 rpm

Diameter

-

Temp. Range

-40°C to 85°C

Hollow Shaft

None

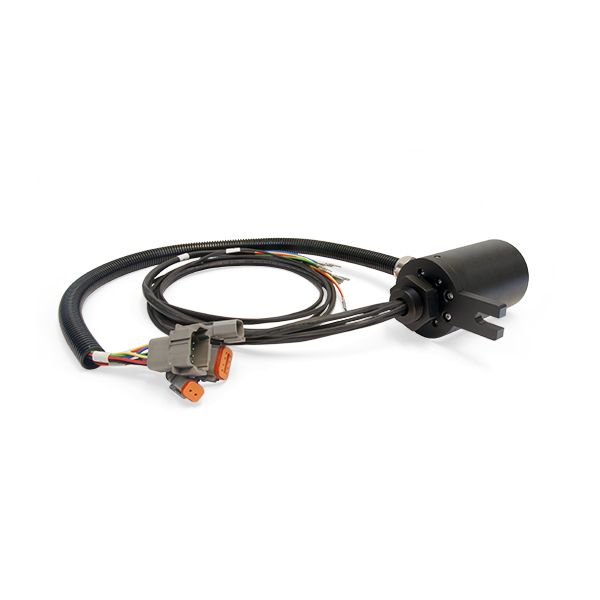

007 Custom Slip Ring

007 Custom Slip Ring

Rated Voltage

240 VAC

Current

6A

No. of Rings

24-36

Max. Operating Speed

200 rpm

Diameter

-

Temp. Range

-40°C to 85°C

Hollow Shaft

None

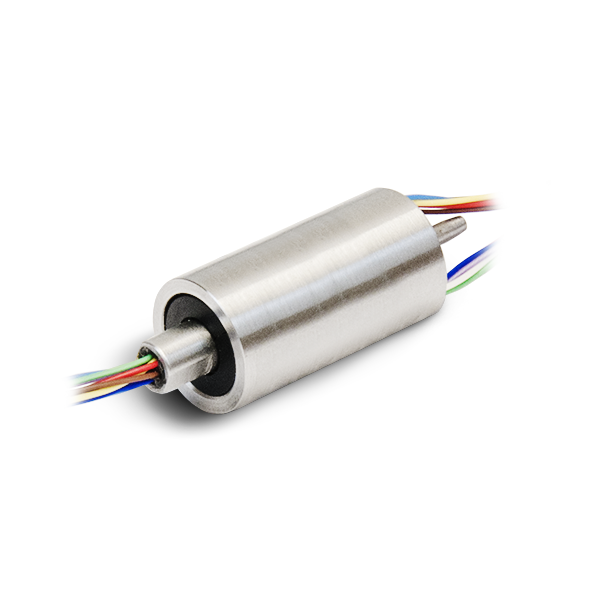

008 Custom Slip Ring

008 Custom Slip Ring

Rated Voltage

240 VAC

Current

2A

No. of Rings

18-24

Max. Operating Speed

100 rpm

Diameter

-

Temp. Range

-40°C to 85°C

Hollow Shaft

None

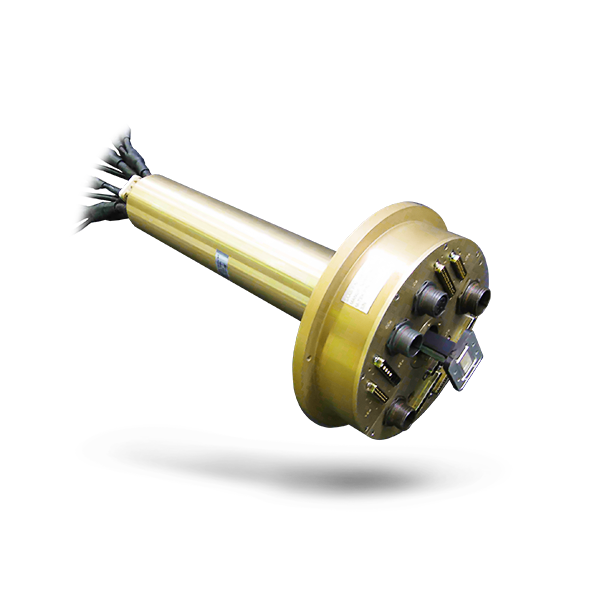

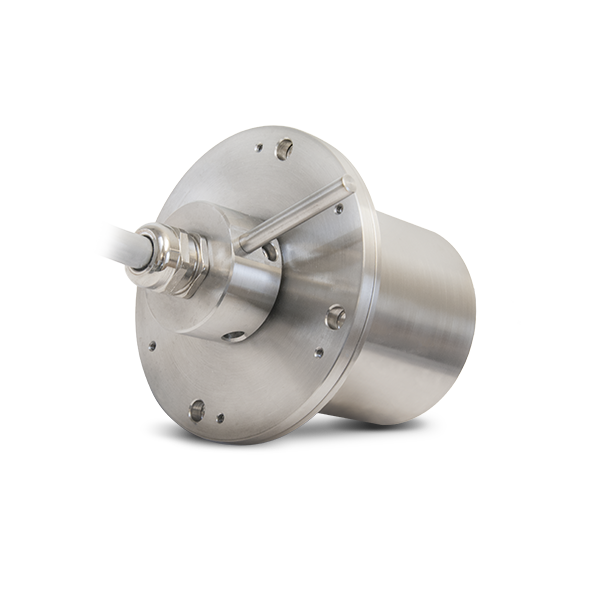

010 Custom Slip Ring

010 Custom Slip Ring

Rated Voltage

1000 VAC

Current

1A + 50A

No. of Rings

190-240

Max. Operating Speed

100 rpm

Diameter

-

Temp. Range

-55°C to 95°C

Hollow Shaft

Ø10 mm

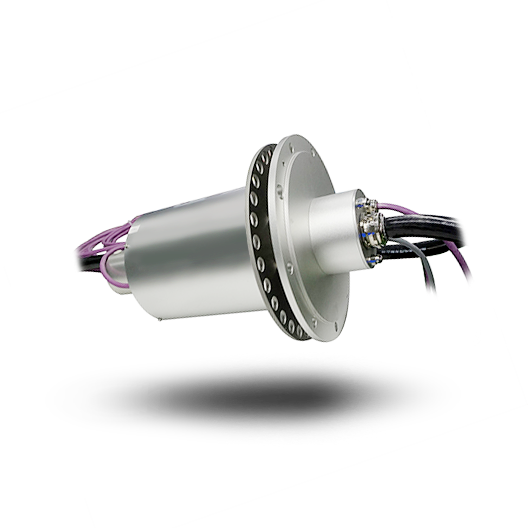

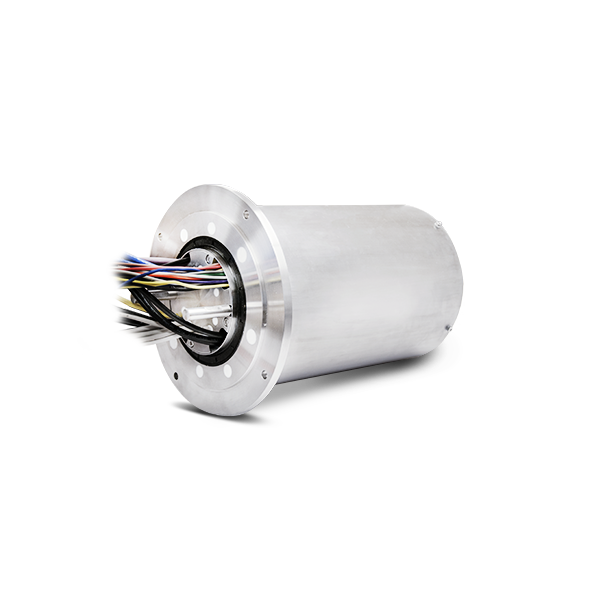

011 Custom Slip Ring

011 Custom Slip Ring

Rated Voltage

400 VAC

Current

80A + 10A

No. of Rings

-

Max. Operating Speed

50 rpm, higher on request (Maximum)

Diameter

-

Temp. Range

-40°C to 80°C

Hollow Shaft

None

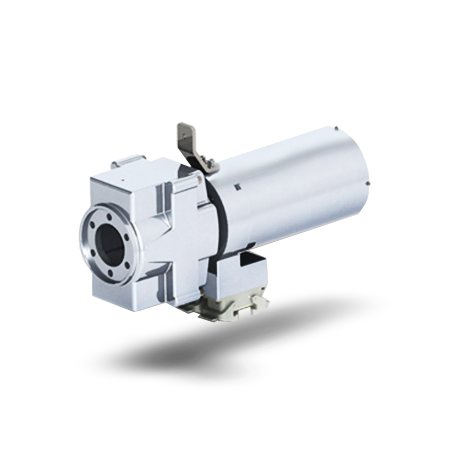

012 Custom Slip Ring

012 Custom Slip Ring

Rated Voltage

400 VAC

Current

80A + 10A

No. of Rings

-

Max. Operating Speed

50 rpm, higher on request (Maximum)

Diameter

-

Temp. Range

-40°C to 80°C

Hollow Shaft

None

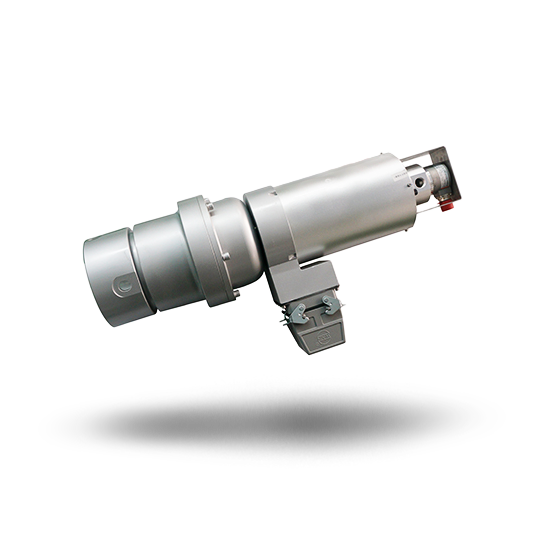

013 Custom Slip Ring

013 Custom Slip Ring

Rated Voltage

400 VAC

Current

80A + 10A

No. of Rings

-

Max. Operating Speed

50 rpm, higher on request (Maximum)

Diameter

-

Temp. Range

-40°C to 80°C

Hollow Shaft

None

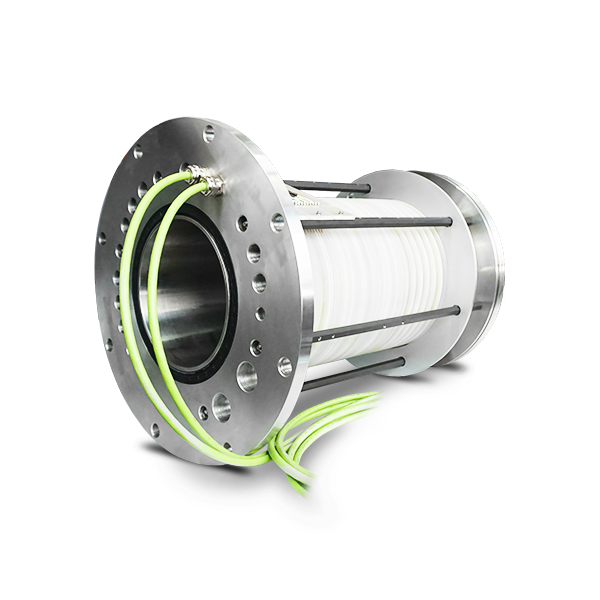

014 Custom Slip Ring

014 Custom Slip Ring

Rated Voltage

690 VAC

Current

40A

No. of Rings

29

Max. Operating Speed

0-5 rpm

Diameter

-

Temp. Range

-20°C to 80°C

Hollow Shaft

Ø180 mm

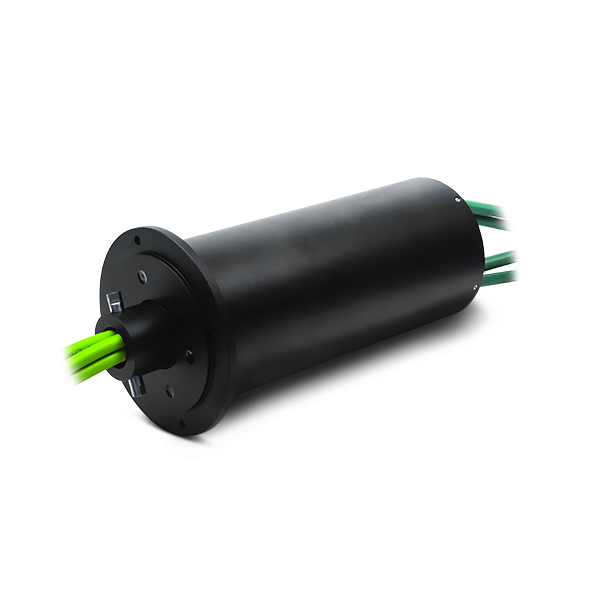

019 Custom Slip Ring

019 Custom Slip Ring

Rated Voltage

60 VAC

Current

5A

No. of Rings

48

Max. Operating Speed

0-10 rpm

Diameter

-

Temp. Range

-20°C to 80°C

Hollow Shaft

None

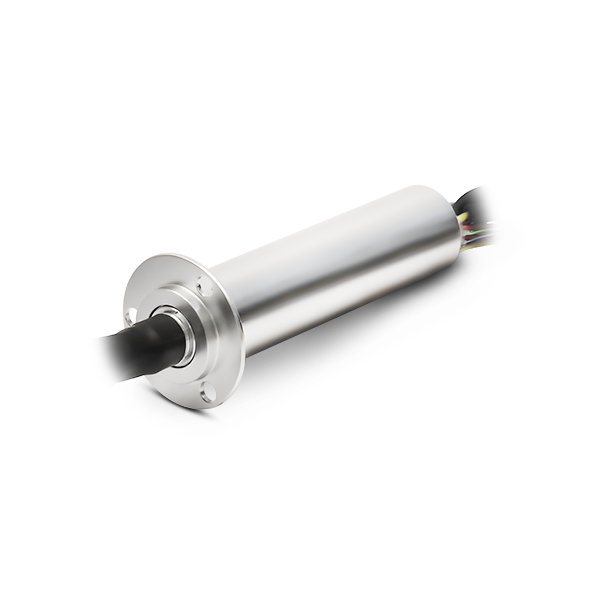

020 Custom Slip Ring

020 Custom Slip Ring

Rated Voltage

220 VAC

Current

2x20A + 2x16,5A

No. of Rings

-

Max. Operating Speed

0-20 rpm

Diameter

-

Temp. Range

-40°C to 80°C

Hollow Shaft

None

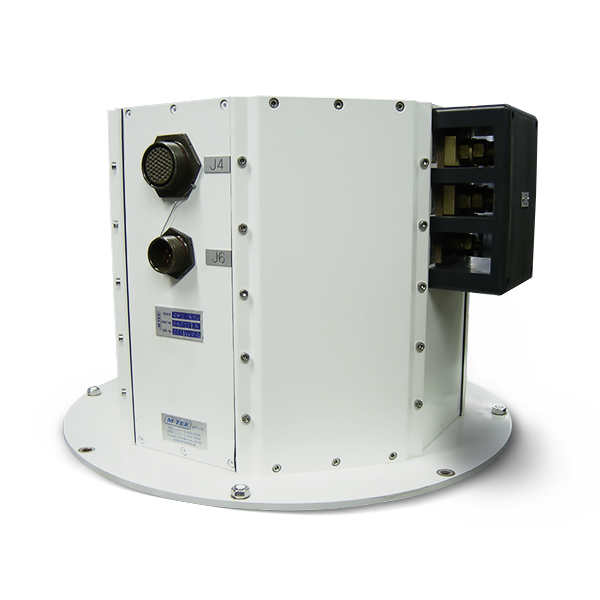

021 Custom MIL Slip Ring

021 Custom MIL Slip Ring

Rated Voltage

1000 VAC

Current

2A + 20 A

No. of Rings

-

Max. Operating Speed

40 rpm

Diameter

-

Temp. Range

-40°C to 80°C

Hollow Shaft

Up to Ø220 mm

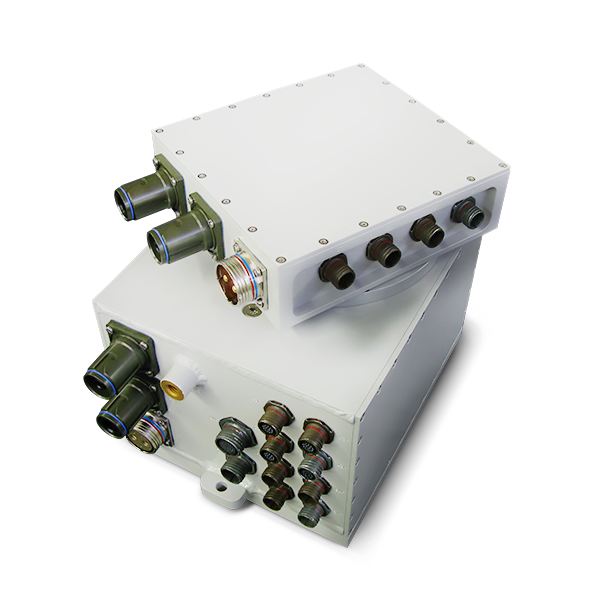

022 Custom MIL Slip Ring

022 Custom MIL Slip Ring

Rated Voltage

1000 VAC

Current

2A + 20 A

No. of Rings

-

Max. Operating Speed

40 rpm

Diameter

-

Temp. Range

-40°C to 80°C

Hollow Shaft

Up to Ø220 mm

023 Custom MIL Slip Ring

023 Custom MIL Slip Ring

Rated Voltage

1000 VAC

Current

2A + 20 A

No. of Rings

-

Max. Operating Speed

40 rpm

Diameter

-

Temp. Range

-40°C to 80°C

Hollow Shaft

Up to Ø220 mm

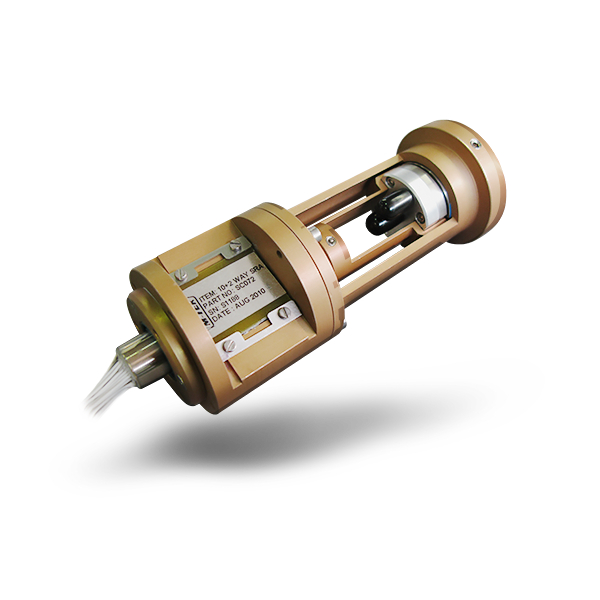

024 Custom MIL Slip Ring

024 Custom MIL Slip Ring

Rated Voltage

1000 VAC

Current

2A + 20 A

No. of Rings

-

Max. Operating Speed

40 rpm

Diameter

-

Temp. Range

-40°C to 80°C

Hollow Shaft

Up to Ø220 mm

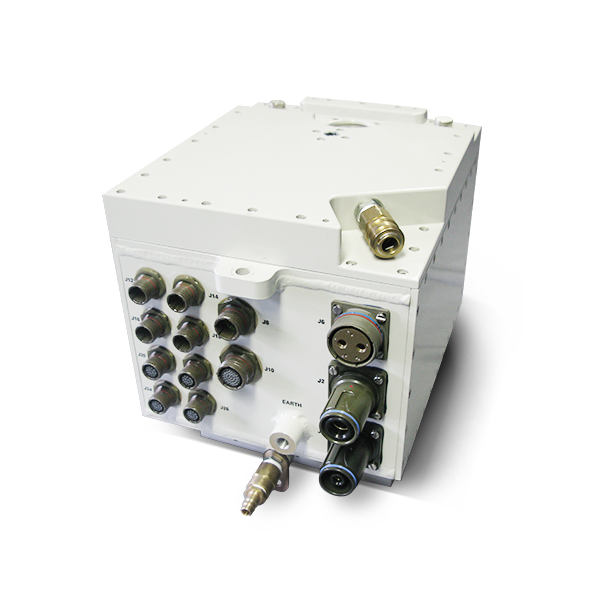

025 Custom MIL Slip Ring

025 Custom MIL Slip Ring

Rated Voltage

1000 VAC

Current

2A + 20 A

No. of Rings

-

Max. Operating Speed

40 rpm

Diameter

-

Temp. Range

-40°C to 80°C

Hollow Shaft

Up to Ø220 mm

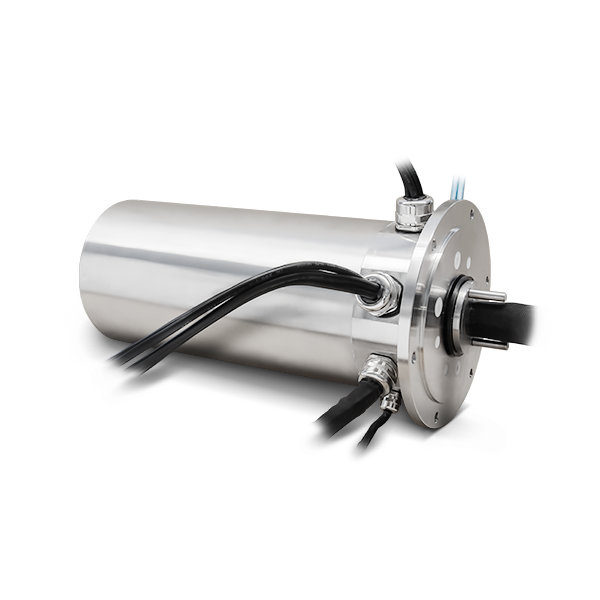

026 Custom Slip Ring

026 Custom Slip Ring

Rated Voltage

600 VAC

Current

8x40A + 16x20A + 16x2A + 2xEthernet

No. of Rings

52

Max. Operating Speed

50 rpm, higher on request (Maximum)

Diameter

-

Temp. Range

-40°C to 80°C

Hollow Shaft

None

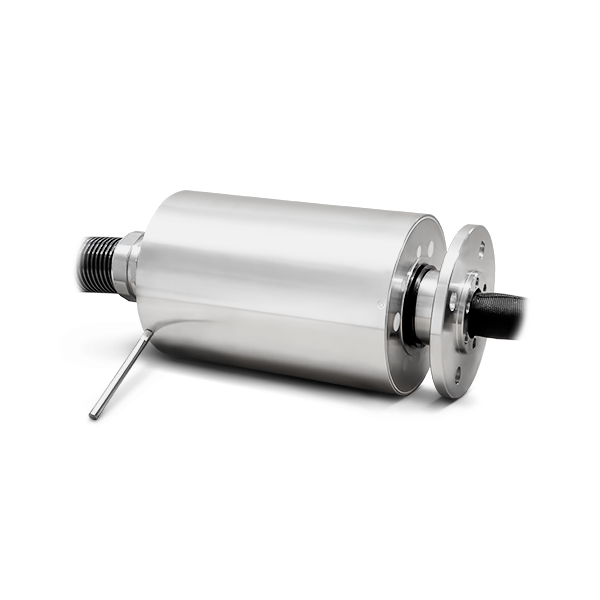

027 Custom Slip Ring

027 Custom Slip Ring

Rated Voltage

600 VAC

Current

4x70A + 4x10A + 2xEthernet

No. of Rings

16

Max. Operating Speed

50 rpm, higher on request (Maximum)

Diameter

-

Temp. Range

-40°C to 80°C

Hollow Shaft

None

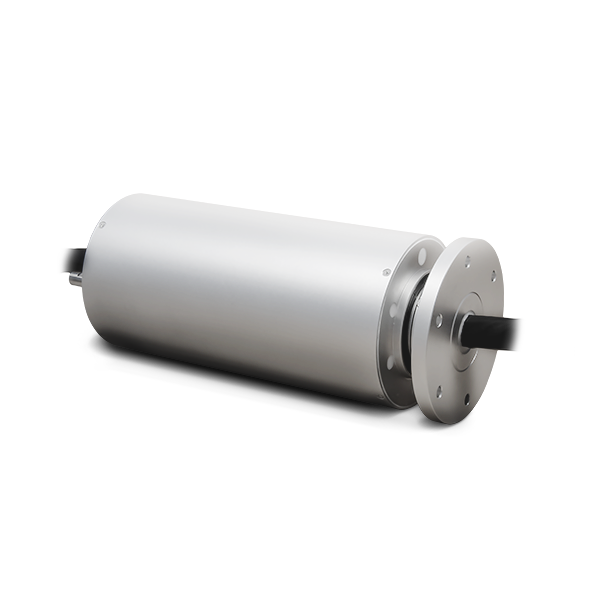

028 Custom Slip Ring

028 Custom Slip Ring

Rated Voltage

600 VAC

Current

70A

No. of Rings

1-x

Max. Operating Speed

60 rpm

Diameter

-

Temp. Range

-40°C to 80°C

Hollow Shaft

None

029 Custom Slip Ring

029 Custom Slip Ring

Rated Voltage

380 VAC

Current

50A

No. of Rings

1-x

Max. Operating Speed

0-10 rpm

Diameter

-

Temp. Range

-20°C to 80°C

Hollow Shaft

None

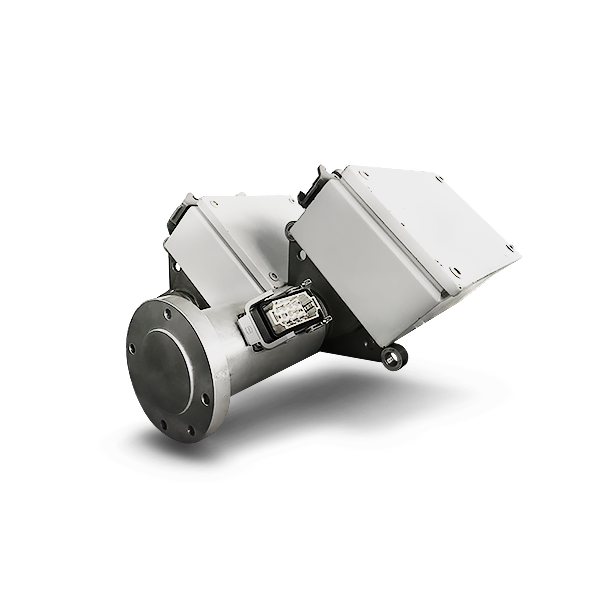

030 Custom Slip Ring

030 Custom Slip Ring

Rated Voltage

1000 VAC

Current

100A

No. of Rings

1-x

Max. Operating Speed

20 rpm, higher on request (Maximum)

Diameter

-

Temp. Range

-40°C to 80°C

Hollow Shaft

None

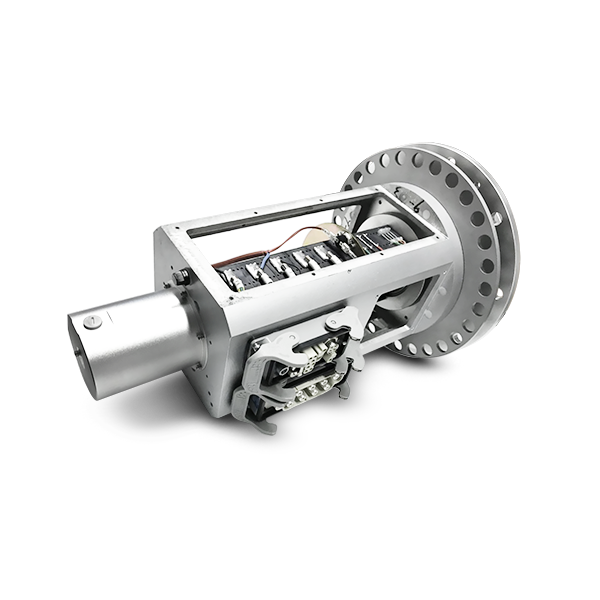

031 Custom Slip Ring

031 Custom Slip Ring

Rated Voltage

600 VAC

Current

1000V

No. of Rings

1-x

Max. Operating Speed

20 rpm, higher on request (Maximum)

Diameter

-

Temp. Range

-40°C to 85°C

Hollow Shaft

None

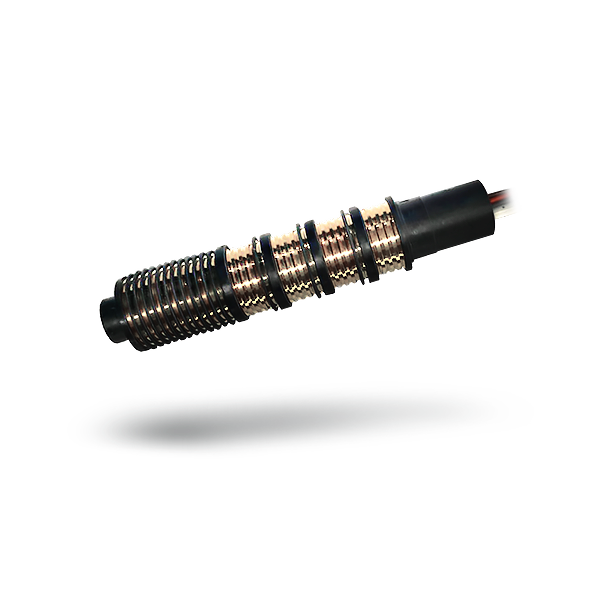

032 Custom Slip Ring

032 Custom Slip Ring

Rated Voltage

600 VAC

Current

60A

No. of Rings

1-xxx

Max. Operating Speed

50 rpm, higher on request (Maximum)

Diameter

-

Temp. Range

-20°C to 80°C

Hollow Shaft

Ø30 mm

033 Custom Slip Ring

033 Custom Slip Ring

Rated Voltage

220 VAC

Current

12A

No. of Rings

16

Max. Operating Speed

250 rpm

Diameter

-

Temp. Range

-20°C to 80°C

Hollow Shaft

None

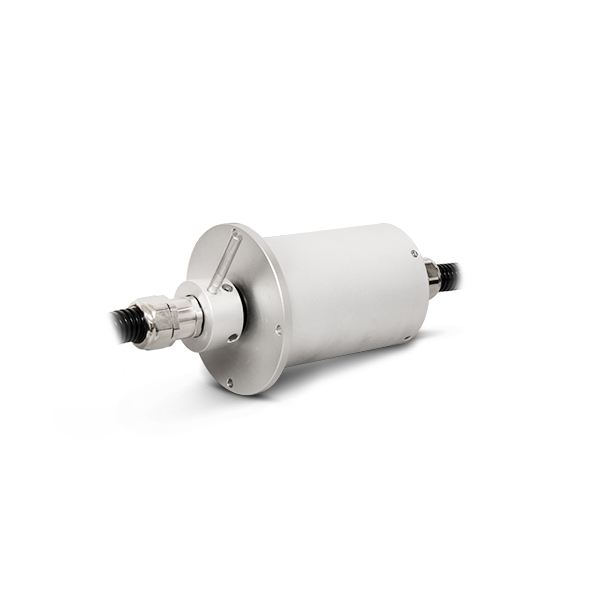

034 Custom Slip Ring

034 Custom Slip Ring

Rated Voltage

1500 VAC

Current

10A

No. of Rings

4

Max. Operating Speed

100 rpm

Diameter

-

Temp. Range

-20°C to 80°C

Hollow Shaft

None

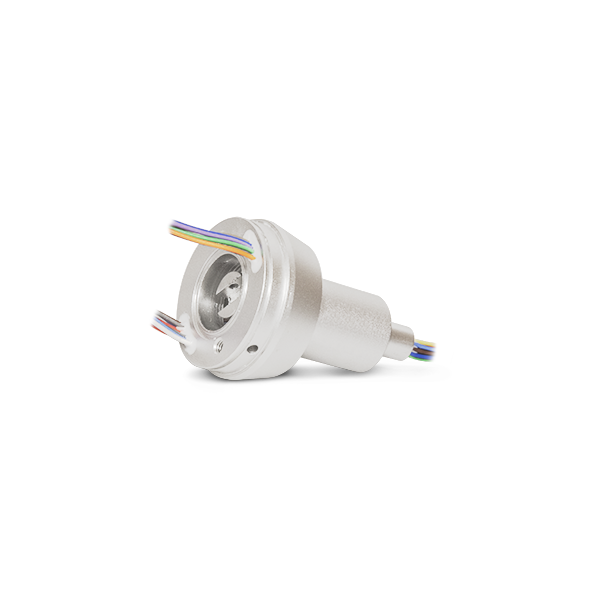

035 Custom Slip Ring

035 Custom Slip Ring

Rated Voltage

240 VAC

Current

2A

No. of Rings

12

Max. Operating Speed

250 rpm

Diameter

Ø22 mm

Temp. Range

-20°C to 80°C

Hollow Shaft

Encoder going through

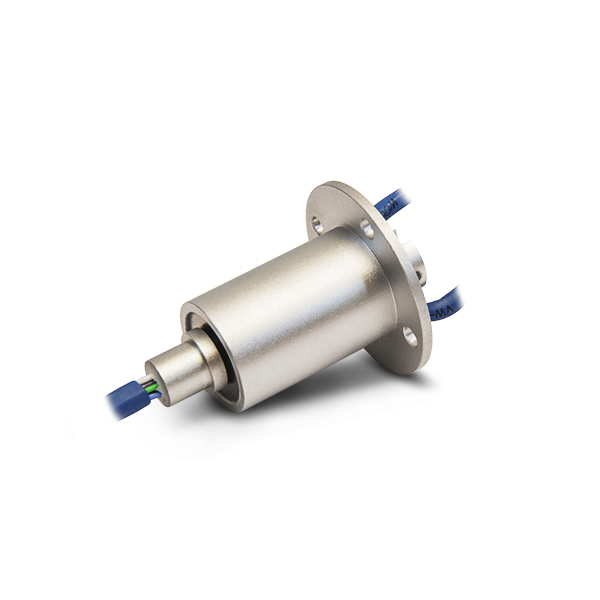

036 Custom Slip Ring

036 Custom Slip Ring

Rated Voltage

240 VAC

Current

2A

No. of Rings

12

Max. Operating Speed

250 rpm

Diameter

Ø22 mm

Temp. Range

-20°C to 80°C

Hollow Shaft

Encoder going through

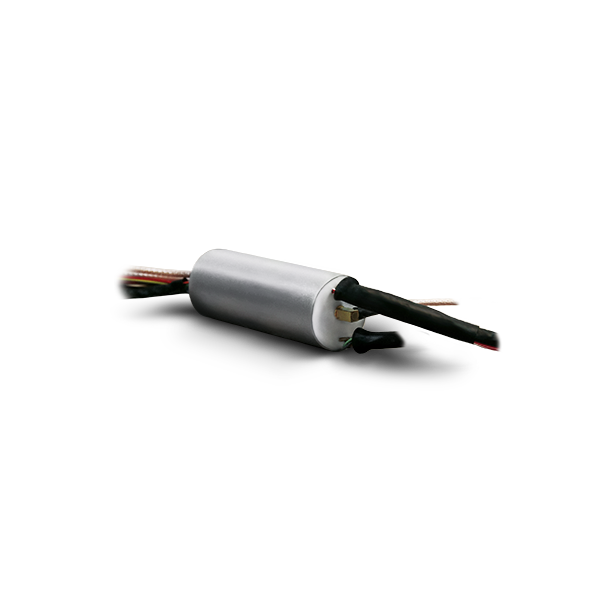

037 Custom Slip Ring

037 Custom Slip Ring

Rated Voltage

240 VAC

Current

10A + 2A + Video

No. of Rings

24-36

Max. Operating Speed

250 rpm

Diameter

Ø22 mm

Temp. Range

-20°C to 80°C

Hollow Shaft

None

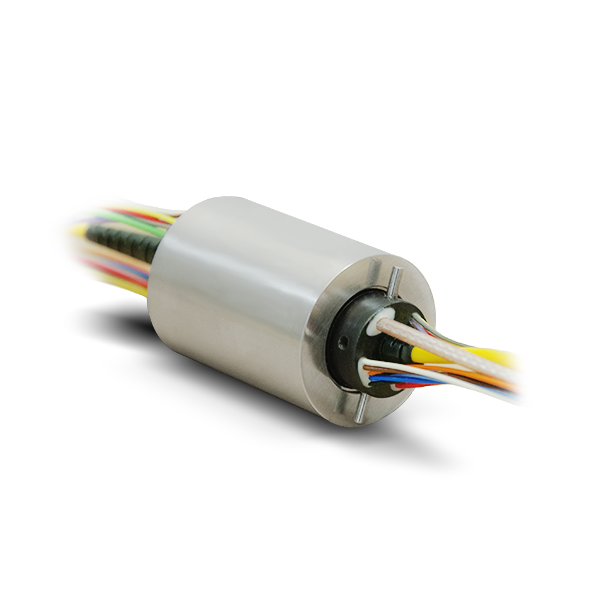

038 Custom Slip Ring

038 Custom Slip Ring

Rated Voltage

240 VAC

Current

10A + 2A + Video

No. of Rings

24-36

Max. Operating Speed

250 rpm

Diameter

Ø32 mm

Temp. Range

-20°C to 80°C

Hollow Shaft

None

Defense & Surveillance Slip Ring

Defense & Surveillance Slip Ring

Rated Voltage

400 VAC

Current

1A + 30A

No. of Rings

46-60

Max. Operating Speed

200 rpm

Diameter

-

Temp. Range

-55°C to 95°C

Hollow Shaft

Ø10 mm

Heavy Crane Slip Ring

Heavy Crane Slip Ring

Rated Voltage

690VAC

Current

80A

No. of Rings

90

Max. Operating Speed

0-10 rpm

Diameter

Ø300 mm

Temp. Range

-20°C to +70°C

Hollow Shaft

Ø80 mm

Large Through Bore Slip Ring for Cranes

Large Through Bore Slip Ring for Cranes

Rated Voltage

400 VAC

Current

40A

No. of Rings

29

Max. Operating Speed

0-5 rpm

Diameter

-

Temp. Range

-40°C to +65°C

Hollow Shaft

Ø400 mm

Open Tower Slip Ring for Cranes

Open Tower Slip Ring for Cranes

Rated Voltage

690 VAC

Current

600A

No. of Rings

155

Max. Operating Speed

0-5 rpm

Diameter

-

Temp. Range

-20°C to 80°C

Hollow Shaft

None

Tower Slip Ring for Cranes

Tower Slip Ring for Cranes

Rated Voltage

690 VAC

Current

300A

No. of Rings

95

Max. Operating Speed

0-5 rpm

Diameter

-

Temp. Range

-20°C to 80°C

Hollow Shaft

None

ProductRated VoltageCurrentNo. of RingsMax. Operating SpeedDiameterTemp. RangeHollow ShaftPDF
001 Custom Slip Ring 600 VAC 2A + 15A 6-48 1000 rpm - -40°C to 85°C Ø20-50 mm
002 Custom Slip Ring 480 VAC 2A + 30A 50-200 200 rpm - -10°C to 100°C None
003 Custom Slip Ring 380 VAC 2A + 20 A 30-60 60 rpm - -20°C to 80°C Ø20-30 mm
004 Custom Slip Ring 1000 VAC 2A + 50A 120-200 20 rpm - -40°C to 85°C None
005 Custom Slip Ring 100 VAC 2A + 20 A 70-96 100 rpm - -40°C to 85°C None
006 Custom Slip Ring 600 VAC 2A + 30A 60 100 rpm - -40°C to 85°C None
007 Custom Slip Ring 240 VAC 6A 24-36 200 rpm - -40°C to 85°C None
008 Custom Slip Ring 240 VAC 2A 18-24 100 rpm - -40°C to 85°C None
010 Custom Slip Ring 1000 VAC 1A + 50A 190-240 100 rpm - -55°C to 95°C Ø10 mm
011 Custom Slip Ring 400 VAC 80A + 10A - 50 rpm, higher on request (Maximum) - -40°C to 80°C None
012 Custom Slip Ring 400 VAC 80A + 10A - 50 rpm, higher on request (Maximum) - -40°C to 80°C None
013 Custom Slip Ring 400 VAC 80A + 10A - 50 rpm, higher on request (Maximum) - -40°C to 80°C None
014 Custom Slip Ring 690 VAC 40A 29 0-5 rpm - -20°C to 80°C Ø180 mm
019 Custom Slip Ring 60 VAC 5A 48 0-10 rpm - -20°C to 80°C None
020 Custom Slip Ring 220 VAC 2x20A + 2x16,5A - 0-20 rpm - -40°C to 80°C None
021 Custom MIL Slip Ring 1000 VAC 2A + 20 A - 40 rpm - -40°C to 80°C Up to Ø220 mm
022 Custom MIL Slip Ring 1000 VAC 2A + 20 A - 40 rpm - -40°C to 80°C Up to Ø220 mm
023 Custom MIL Slip Ring 1000 VAC 2A + 20 A - 40 rpm - -40°C to 80°C Up to Ø220 mm
024 Custom MIL Slip Ring 1000 VAC 2A + 20 A - 40 rpm - -40°C to 80°C Up to Ø220 mm
025 Custom MIL Slip Ring 1000 VAC 2A + 20 A - 40 rpm - -40°C to 80°C Up to Ø220 mm
026 Custom Slip Ring 600 VAC 8x40A + 16x20A + 16x2A + 2xEthernet 52 50 rpm, higher on request (Maximum) - -40°C to 80°C None
027 Custom Slip Ring 600 VAC 4x70A + 4x10A + 2xEthernet 16 50 rpm, higher on request (Maximum) - -40°C to 80°C None
028 Custom Slip Ring 600 VAC 70A 1-x 60 rpm - -40°C to 80°C None
029 Custom Slip Ring 380 VAC 50A 1-x 0-10 rpm - -20°C to 80°C None
030 Custom Slip Ring 1000 VAC 100A 1-x 20 rpm, higher on request (Maximum) - -40°C to 80°C None
031 Custom Slip Ring 600 VAC 1000V 1-x 20 rpm, higher on request (Maximum) - -40°C to 85°C None
032 Custom Slip Ring 600 VAC 60A 1-xxx 50 rpm, higher on request (Maximum) - -20°C to 80°C Ø30 mm
033 Custom Slip Ring 220 VAC 12A 16 250 rpm - -20°C to 80°C None
034 Custom Slip Ring 1500 VAC 10A 4 100 rpm - -20°C to 80°C None
035 Custom Slip Ring 240 VAC 2A 12 250 rpm Ø22 mm -20°C to 80°C Encoder going through
036 Custom Slip Ring 240 VAC 2A 12 250 rpm Ø22 mm -20°C to 80°C Encoder going through
037 Custom Slip Ring 240 VAC 10A + 2A + Video 24-36 250 rpm Ø22 mm -20°C to 80°C None
038 Custom Slip Ring 240 VAC 10A + 2A + Video 24-36 250 rpm Ø32 mm -20°C to 80°C None
Defense & Surveillance Slip Ring 400 VAC 1A + 30A 46-60 200 rpm - -55°C to 95°C Ø10 mm
Heavy Crane Slip Ring 690VAC 80A 90 0-10 rpm Ø300 mm -20°C to +70°C Ø80 mm
Large Through Bore Slip Ring for Cranes 400 VAC 40A 29 0-5 rpm - -40°C to +65°C Ø400 mm

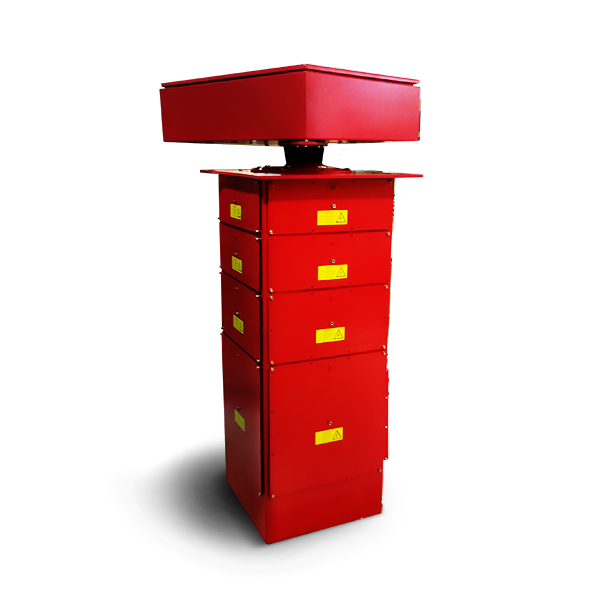

Open Tower Slip Ring for Cranes 690 VAC 600A 155 0-5 rpm - -20°C to 80°C None

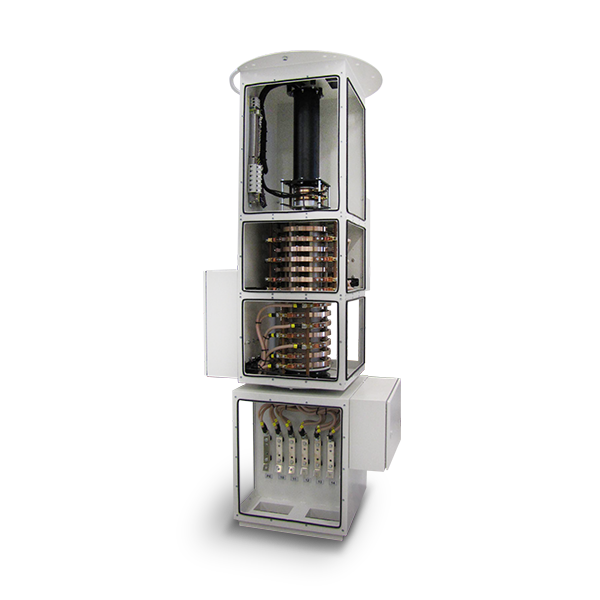

Tower Slip Ring for Cranes 690 VAC 300A 95 0-5 rpm - -20°C to 80°C None
