Single Channel Solutions

Optical Transmission

Fibre-optic rotary joints (FORJs) are the optical equivalent to electric slip rings. They allow for the uninterrupted transmission of optical signals while rotating around their shaft. The most cost and size efficient options are the single channel designs.

Since fiber optic offers almost endless of bandwidth you can multiplex your required signals and run them through one fiber. The three most commonly used bands of spectra are 850 nm, 1310 nm, and 1550 nm.

Please contact us for more information on Fiber Optical Rotary Joints!


Single Channel

5 products found

Single Channel

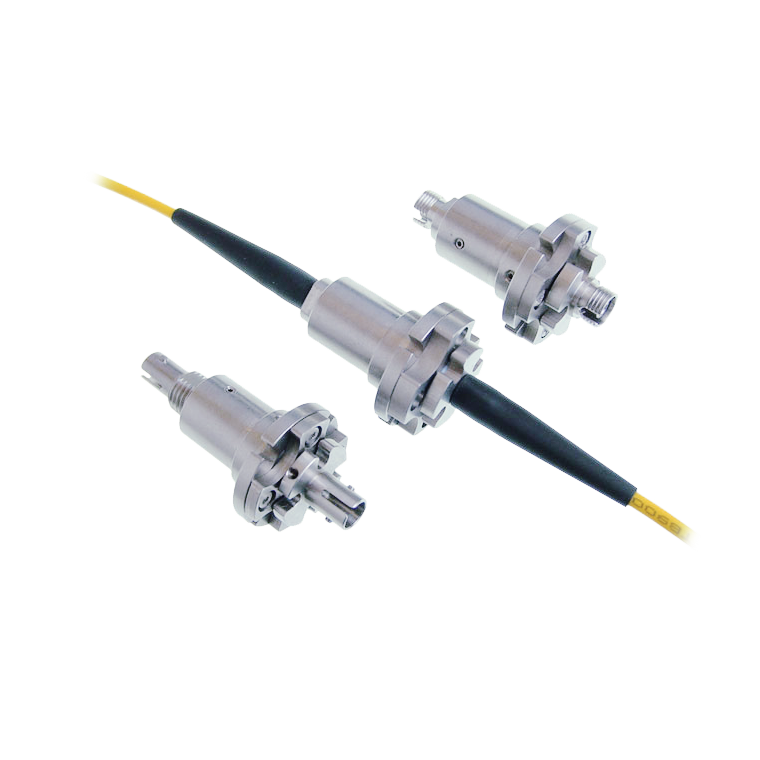

001 R Series (Single-Channel)

001 R Series (Single-Channel)

Fiber type

SM/MM, 3 mm Kevlar/PVC or 2.9 mm armor

Wavelength Length

650-1650 nm

Insertion Loss

<2 dB/RPT&RPTA; <3 dB/RFC; <3 dB/RST

Connector

FC, SC, ST, SMA, or LC (PC and APC)

Temperature

Working: -40 to 85°C; Storage: -50 to 85°C

IP-Rating

IP 68 for all models

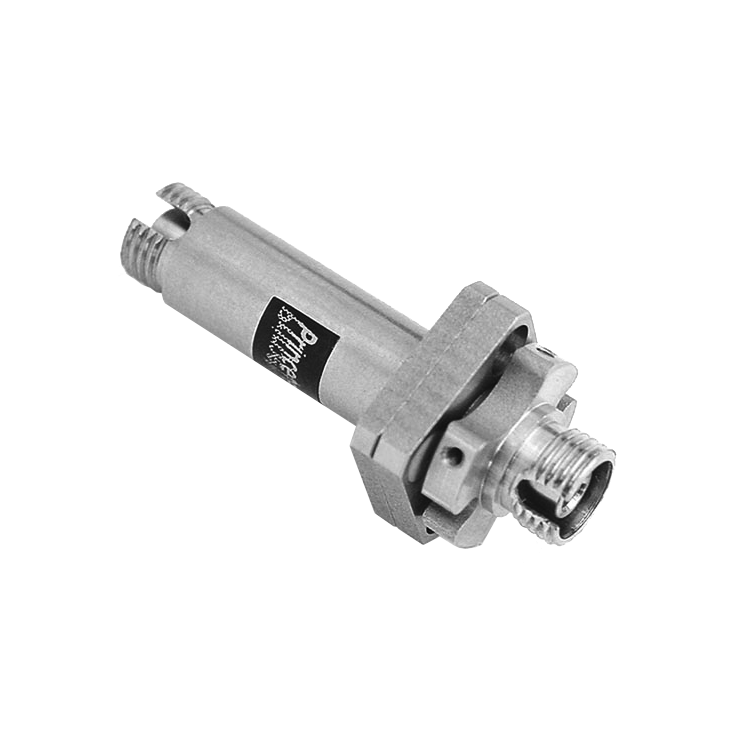

003 RFCX Series

003 RFCX Series

Fiber type

Singlemode or multimode

Wavelength Length

650-1650 nm

Insertion Loss

<3 dB

Connector

FC/PC

Temperature

Working: -40 to 85°C; Storage: -50 to 85°C

IP-Rating

IP68

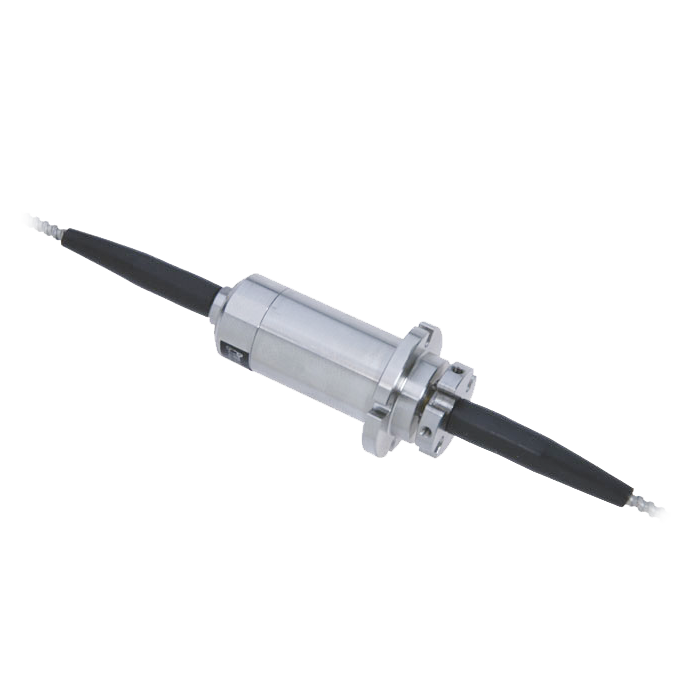

004 RPC series (Single-channel)

004 RPC series (Single-channel)

Fiber type

SM or MM, 2.9 mm armored jacket (SS)

Wavelength Length

650-1650 nm

Insertion Loss

<2 dB

Connector

FC, ST, and SC (APC finishes also available)

Temperature

Working: -40 to 85°C; Storage: -50 to 85°C

IP-Rating

None (Shock & Vibration: Telcordia GR1221CORE)

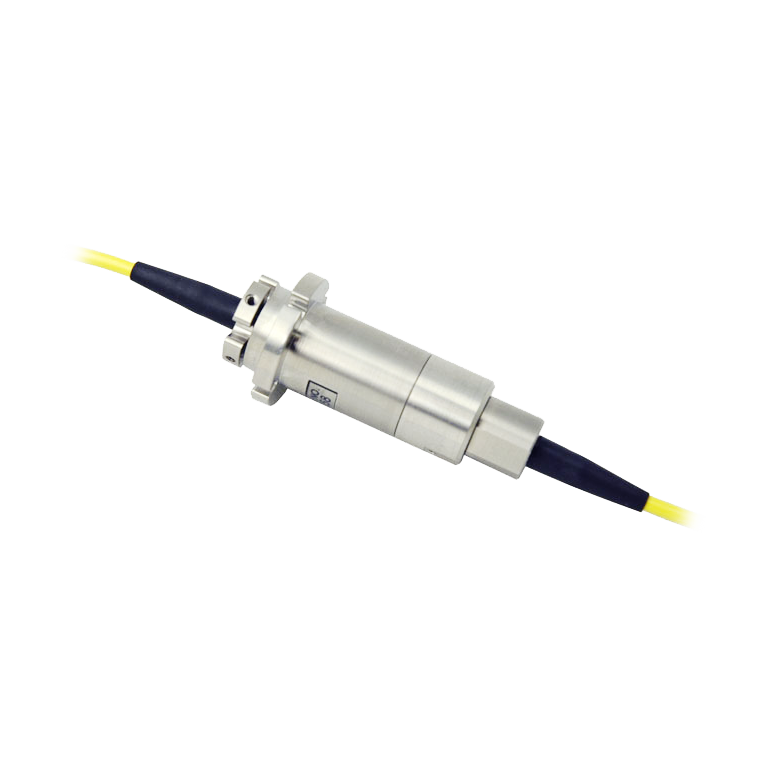

005 MJP Series (Single-channel)

005 MJP Series (Single-channel)

Fiber type

Singlemode or multimode

Wavelength Length

1310, 1550 nm, or both (850, 1310 nm, or both)

Insertion Loss

<2 dB (typical: <1 dB)

Connector

FC, SC, ST, SMA, LC or /APCs

Temperature

Working: -20 to 65°C; Storage: -25 to 75°C

IP-Rating

IP 50

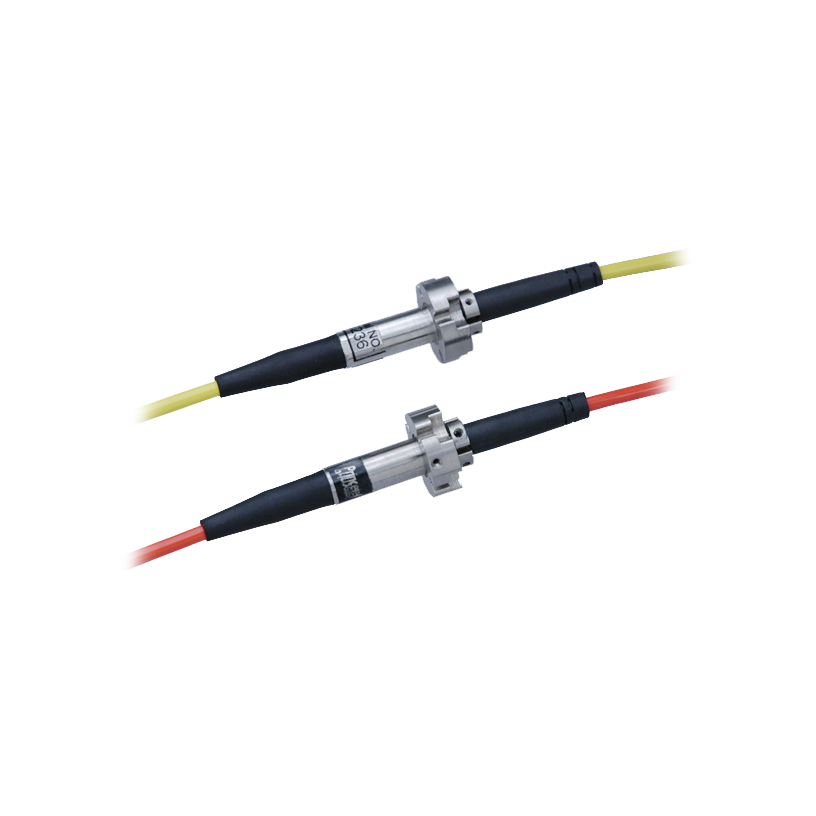

MicroJx Series

MicroJx Series

Fiber type

Single or multimode w/3 mm jacket (Kevlar/PVC)

Wavelength Length

650-1650 nm

Insertion Loss

<2 dB (typical: <0.5 dB)

Connector

FC, SC, ST, SMA, or LC (and APC finishes)

Temperature

Working: -40 to 85°C; Storage: -50 to 85°C

IP-Rating

IP 68 for all models

ProductFiber typeWavelength LengthInsertion LossConnectorTemperatureIP-RatingPDF
001 R Series (Single-Channel) SM/MM, 3 mm Kevlar/PVC or 2.9 mm armor 650-1650 nm <2 dB/RPT&RPTA; <3 dB/RFC; <3 dB/RST FC, SC, ST, SMA, or LC (PC and APC) Working: -40 to 85°C; Storage: -50 to 85°C IP 68 for all models
003 RFCX Series Singlemode or multimode 650-1650 nm <3 dB FC/PC Working: -40 to 85°C; Storage: -50 to 85°C IP68
004 RPC series (Single-channel) SM or MM, 2.9 mm armored jacket (SS) 650-1650 nm <2 dB FC, ST, and SC (APC finishes also available) Working: -40 to 85°C; Storage: -50 to 85°C None (Shock & Vibration: Telcordia GR1221CORE)
005 MJP Series (Single-channel) Singlemode or multimode 1310, 1550 nm, or both (850, 1310 nm, or both) <2 dB (typical: <1 dB) FC, SC, ST, SMA, LC or /APCs Working: -20 to 65°C; Storage: -25 to 75°C IP 50
MicroJx Series Single or multimode w/3 mm jacket (Kevlar/PVC) 650-1650 nm <2 dB (typical: <0.5 dB) FC, SC, ST, SMA, or LC (and APC finishes) Working: -40 to 85°C; Storage: -50 to 85°C IP 68 for all models
