Standard Gyroscopes

CORIOLIS TECHNOLOGY

The GI-CVG-2000 series is built with Coriolis technology to deliver true tactical grade performance in a small lightweight package. With an improved Angular Random Walk and an excellent short-term bias stability.

11 products found

Unhoused Gyroscopes

GI-CVG-N1100D

GI-CVG-N1100D

Output Format	Digital
No. of Axis	1
Measurement Range	±160 deg/sec
Power Consumption	< 2.5 @15V watt
Bandwidth	≥ 300 HZ
Operational Temp.	-40 to +85°C

GI-CVG-N1100D

GI-CVG-N2102A

GI-CVG-N2102A

Output Format	Analogue
No. of Axis	1
Measurement Range	±110 deg/sec
Power Consumption	< 1.7 @15V watt
Bandwidth	≥ 300 HZ
Operational Temp.	-46 to +85°C

GI-CVG-N2102A

GI-CVG-N2103A

GI-CVG-N2103A

Output Format	Analogue
No. of Axis	1
Measurement Range	±110 deg/sec
Power Consumption	< 1.7 @15V watt
Bandwidth	≥ 300 HZ
Operational Temp.	-40 to +85°C

GI-CVG-N2103A

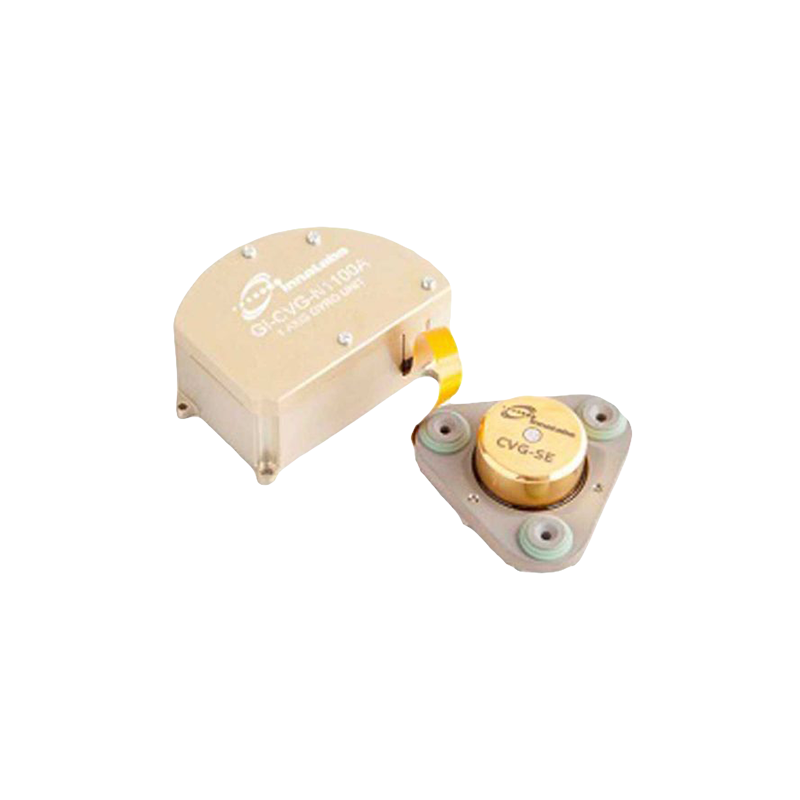

GI-CVG-N2105A

GI-CVG-N2105A

Output Format	Analogue
No. of Axis	1
Measurement Range	±60 deg/sec
Power Consumption	< 2.5 @15V watt
Bandwidth	≥ 300 HZ
Operational Temp.	-40 to +85°C

GI-CVG-N2105A

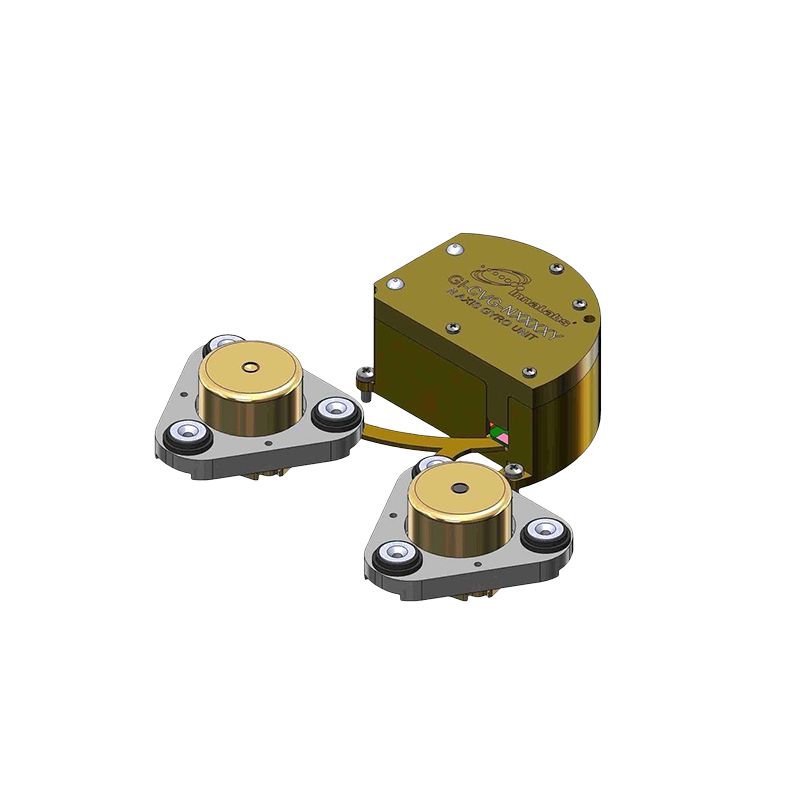

GI-CVG-N2110D

GI-CVG-N2110D

Output Format	Digital
No. of Axis	1
Measurement Range	±20 deg/sec
Power Consumption	< 3 @15V watt
Bandwidth	≥ 25 Hz
Operational Temp.	-40 to +85°C

GI-CVG-N2110D

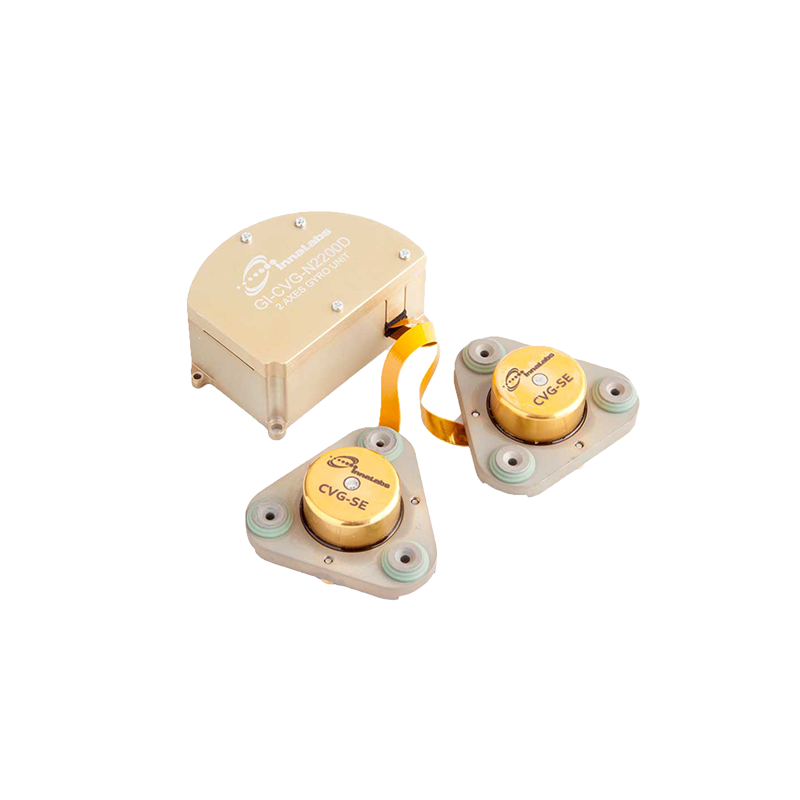

GI-CVG-N2200D

GI-CVG-N2200D

Output Format	Digital
No. of Axis	2
Measurement Range	±60 deg/sec
Power Consumption	< 3 @15V watt
Bandwidth	≥ 30 Hz
Operational Temp.	-40 to +85°C

GI-CVG-N2200D

GI-CVG-N2202A

GI-CVG-N2202A

Output Format	Analogue
No. of Axis	2
Measurement Range	±110 deg/sec
Power Consumption	< 2.3 @15V watt
Bandwidth	≥ 300 HZ
Operational Temp.	-40 to +85°C

GI-CVG-N2202A

GI-CVG-N2206D

GI-CVG-N2206D

Output Format	Digital
No. of Axis	2
Measurement Range	±60 deg/sec
Power Consumption	< 3 @15V watt
Bandwidth	≥ 300 HZ
Operational Temp.	-40 to +85°C

GI-CVG-N2206D

GI-CVG-N2210A

GI-CVG-N2210A

Output Format	Digital
No. of Axis	2
Measurement Range	±20 deg/sec
Power Consumption	< 3 @15V watt
Bandwidth	≥ 25 Hz
Operational Temp.	-40 to +85°C

GI-CVG-N2210A

GI-CVG-N2210D

GI-CVG-N2210D

Output Format	Digital
No. of Axis	2
Measurement Range	±20 deg/sec
Power Consumption	< 2.5 @15V watt
Bandwidth	≥ 25 Hz
Operational Temp.	-40 to +85°C

GI-CVG-N2210D

GI-CVG-N2210D

GI-CVG-N2210D

Output Format	Analogue
No. of Axis	2
Measurement Range	±110 deg/sec
Power Consumption	< 1.7 @15V watt
Bandwidth	≥ 300 HZ
Operational Temp.	-40 to +85°C

GI-CVG-N2210D

	Product	Output Format	No. of Axis	Measurement Range	Power Consumption	Bandwidth	Operational Temp.	PDF
	GI-CVG-N1100D	Digital	1	±160 deg/sec	< 2.5 @15V watt	≥ 300 HZ	-40 to +85°C
	GI-CVG-N2102A	Analogue	1	±110 deg/sec	< 1.7 @15V watt	≥ 300 HZ	-46 to +85°C
	GI-CVG-N2103A	Analogue	1	±110 deg/sec	< 1.7 @15V watt	≥ 300 HZ	-40 to +85°C
	GI-CVG-N2105A	Analogue	1	±60 deg/sec	< 2.5 @15V watt	≥ 300 HZ	-40 to +85°C
	GI-CVG-N2110D	Digital	1	±20 deg/sec	< 3 @15V watt	≥ 25 Hz	-40 to +85°C
	GI-CVG-N2200D	Digital	2	±60 deg/sec	< 3 @15V watt	≥ 30 Hz	-40 to +85°C
	GI-CVG-N2202A	Analogue	2	±110 deg/sec	< 2.3 @15V watt	≥ 300 HZ	-40 to +85°C
	GI-CVG-N2206D	Digital	2	±60 deg/sec	< 3 @15V watt	≥ 300 HZ	-40 to +85°C
	GI-CVG-N2210A	Digital	2	±20 deg/sec	< 3 @15V watt	≥ 25 Hz	-40 to +85°C
	GI-CVG-N2210D	Digital	2	±20 deg/sec	< 2.5 @15V watt	≥ 25 Hz	-40 to +85°C
	GI-CVG-N2210D	Analogue	2	±110 deg/sec	< 1.7 @15V watt	≥ 300 HZ	-40 to +85°C

8 products found

Housed Gyroscopes

GI-CVG-U1204A

GI-CVG-U1204A

Output Format	Analogue
No. of Axis	2
Measurement Range	-
Power Consumption	< 2.3 @15V watt
Bandwidth	-
Operational Temp.	-40 to +85°C

GI-CVG-U1204A

GI-CVG-U2110A

GI-CVG-U2110A

Output Format	Analogue
No. of Axis	1
Measurement Range	±20 deg/sec
Power Consumption	< 1.7 @15V watt
Bandwidth	≥ 25 Hz
Operational Temp.	-40 to +85°C

GI-CVG-U2110A

GI-CVG-U2110D

GI-CVG-U2110D

Output Format	Digital
No. of Axis	1
Measurement Range	±20 deg/sec
Power Consumption	< 2.5 @15V watt
Bandwidth	≥ 25 Hz
Operational Temp.	-40 to +85°C

GI-CVG-U2110D

GI-CVG-U2111A

GI-CVG-U2111A

Output Format	Analogue
No. of Axis	2
Measurement Range	±110 deg/sec
Power Consumption	< 1.7 @15V watt
Bandwidth	≥ 300 HZ
Operational Temp.	-40 to +85°C

GI-CVG-U2111A

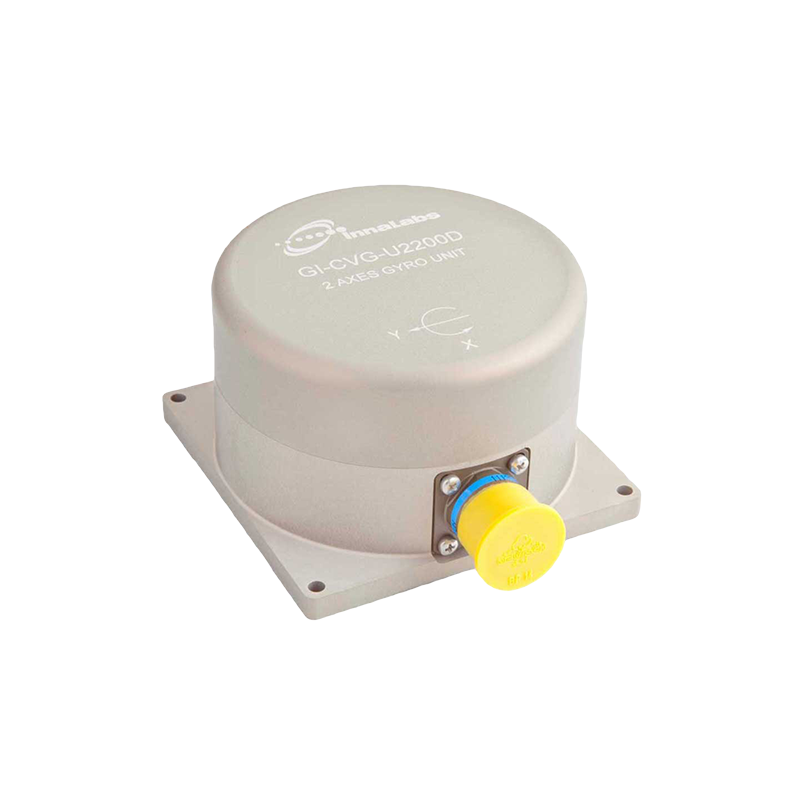

GI-CVG-U2200D

GI-CVG-U2200D

Output Format	Digital
No. of Axis	1
Measurement Range	±160 deg/sec
Power Consumption	< 2.5 @15V, < 3 @15V watt
Bandwidth	≥ 300 HZ
Operational Temp.	-40 to +85°C

GI-CVG-U2200D

GI-CVG-U2204D

GI-CVG-U2204D

Output Format	Digital
No. of Axis	2
Measurement Range	±160 deg/sec
Power Consumption	< 3 @15V watt
Bandwidth	≥ 300 HZ
Operational Temp.	-40 to +85°C

GI-CVG-U2204D

GI-CVG-U2210A

GI-CVG-U2210A

Output Format	Analogue
No. of Axis	2
Measurement Range	±110 deg/sec
Power Consumption	< 1.7 @15V watt
Bandwidth	≥ 300 HZ
Operational Temp.	-40 to +85°C

GI-CVG-U2210A

GI-CVG-U2210D

GI-CVG-U2210D

Output Format	Digital
No. of Axis	2
Measurement Range	±20 deg/sec
Power Consumption	< 2.5 @15V watt
Bandwidth	≥ 25 Hz
Operational Temp.	-40 to +85°C

GI-CVG-U2210D

	Product	Output Format	No. of Axis	Measurement Range	Power Consumption	Bandwidth	Operational Temp.	PDF
	GI-CVG-U1204A	Analogue	2	-	< 2.3 @15V watt	-	-40 to +85°C
	GI-CVG-U2110A	Analogue	1	±20 deg/sec	< 1.7 @15V watt	≥ 25 Hz	-40 to +85°C
	GI-CVG-U2110D	Digital	1	±20 deg/sec	< 2.5 @15V watt	≥ 25 Hz	-40 to +85°C
	GI-CVG-U2111A	Analogue	2	±110 deg/sec	< 1.7 @15V watt	≥ 300 HZ	-40 to +85°C
	GI-CVG-U2200D	Digital	1	±160 deg/sec	< 2.5 @15V, < 3 @15V watt	≥ 300 HZ	-40 to +85°C
	GI-CVG-U2204D	Digital	2	±160 deg/sec	< 3 @15V watt	≥ 300 HZ	-40 to +85°C
	GI-CVG-U2210A	Analogue	2	±110 deg/sec	< 1.7 @15V watt	≥ 300 HZ	-40 to +85°C
	GI-CVG-U2210D	Digital	2	±20 deg/sec	< 2.5 @15V watt	≥ 25 Hz	-40 to +85°C

Application Notes

Learn more about our Products

Our application note showcases our products in relevant context to make it easier for you to understand why our products are the best on the market. Not only do we offer standard solution, we have modified and customized solutions for you to order.

Application Notes

Application Notes Pappers
