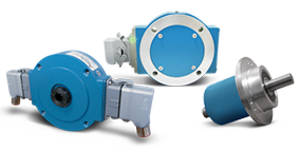

Encoders

Standard, Modified, Custom & Integration Solutions

Electrical Encoders

Electrical Encoders

TheElectric Encoder™ has taken a revolutionary position sensing technology, originally developed for harsh environment specialized applications, and made it available for today’s broader range of defense, aerospace and instrumentation motion control requirements. Non-contact technology relies on interaction between the measured displacement and a space/time modulated electric field. It offers a blend of features unequalled by optical or magnetic encoders.

Rotary Electric Encoders

Rotary Electric Encoder™ offers a Simple, robust structure with a virtually no- failure- mechanism with generous mounting tolerances. Since it has very low weight, inertia, and profile (=<10mm) it is ideal for integration. Did you also know it is Insensitivity to EMI/RFI and magnetic fields?

12 products found

Rotary Electric Encoders

DF-0060 Electrical Encoder

DF-0060 Electrical Encoder

Outer Diameter

60mm

Inner Diameter

30mm

Resolution

18 bit

Accuracy

<0.015°

Material

Aluminum

Supply Voltage

5V ± 5%

Protection

IP 40

DF-0100 Electrical Encoder

DF-0100 Electrical Encoder

Outer Diameter

100mm

Inner Diameter

57mm

Resolution

18 bit

Accuracy

<0.015°

Material

Aluminum

Supply Voltage

5V ± 5%

Protection

IP 40

DF-0150 Electrical Encoder

DF-0150 Electrical Encoder

Outer Diameter

150mm

Inner Diameter

110mm

Resolution

18 bit

Accuracy

<0.015°

Material

Aluminum

Supply Voltage

5V ± 5%

Protection

IP 40

DL-0025 Electrical Encoder

DL-0025 Electrical Encoder

Outer Diameter

25mm

Inner Diameter

Shaft

Resolution

17 bit

Accuracy

<0.030°

Material

Aluminum, Stainless Steel (Case, Shaft)

Supply Voltage

5V ± 5%

Protection

IP 65

DS-0025 Electrical Encoder

DS-0025 Electrical Encoder

Outer Diameter

25mm

Inner Diameter

6mm

Resolution

17 bit

Accuracy

<0.025°

Material

Ultem™ polymer (Stator, Rotor)

Supply Voltage

5V ± 5%

Protection

IP 40

DS-0037 Electrical Encoder

DS-0037 Electrical Encoder

Outer Diameter

37mm

Inner Diameter

10mm

Resolution

17 bit

Accuracy

<0.025°

Material

Ultem™ polymer (Stator, Rotor)

Supply Voltage

5V ± 5%

Protection

IP 40

DS-0058-[20] Electrical Encoder

DS-0058-[20] Electrical Encoder

Outer Diameter

58mm

Inner Diameter

20mm

Resolution

18 bit

Accuracy

<0.02°

Material

Ultem™ polymer (Stator, Rotor)

Supply Voltage

5V ± 5%

Protection

-

DS-0070 Electrical Encoder

DS-0070 Electrical Encoder

Outer Diameter

70mm

Inner Diameter

30mm

Resolution

19 bit

Accuracy

<0.010°

Material

Ultem™ polymer (Stator, Rotor)

Supply Voltage

5V ± 5%

Protection

IP 40

DS-0090 Electrical Encoder

DS-0090 Electrical Encoder

Outer Diameter

90mm

Inner Diameter

50mm

Resolution

19 bit

Accuracy

<0.01°

Material

Ultem™ polymer (Stator, Rotor)

Supply Voltage

5V ± 5%

Protection

IP 40

DS-0130 Electrical Encoders

DS-0130 Electrical Encoders

Outer Diameter

130mm

Inner Diameter

90

Resolution

19 bit

Accuracy

<0.01°

Material

Ultem™ polymer (Stator, Rotor)

Supply Voltage

5V ± 5%

Protection

IP 40

VLX-0060 Electrical Encoder

VLX-0060 Electrical Encoder

Outer Diameter

60mm

Inner Diameter

27mm

Resolution

18 bit

Accuracy

<0.020°

Material

FR4 (Stator, Rotor)

Supply Voltage

5V ± 5%

Protection

-

VLX-0064 Electrical Encoder

VLX-0064 Electrical Encoder

Outer Diameter

64mm

Inner Diameter

34mm

Resolution

19 bit

Accuracy

<0.020°

Material

FR4 (Stator, Rotor)

Supply Voltage

5V ± 5%

Protection

-

ProductOuter DiameterInner DiameterResolutionAccuracyMaterialSupply VoltageProtectionPDF
DF-0060 Electrical Encoder 60mm 30mm 18 bit <0.015° Aluminum 5V ± 5% IP 40 icon
DF-0100 Electrical Encoder 100mm 57mm 18 bit <0.015° Aluminum 5V ± 5% IP 40 icon
DF-0150 Electrical Encoder 150mm 110mm 18 bit <0.015° Aluminum 5V ± 5% IP 40 icon
DL-0025 Electrical Encoder 25mm Shaft 17 bit <0.030° Aluminum, Stainless Steel (Case, Shaft) 5V ± 5% IP 65 icon
DS-0025 Electrical Encoder 25mm 6mm 17 bit <0.025° Ultem™ polymer (Stator, Rotor) 5V ± 5% IP 40 icon
DS-0037 Electrical Encoder 37mm 10mm 17 bit <0.025° Ultem™ polymer (Stator, Rotor) 5V ± 5% IP 40 icon
DS-0058-[20] Electrical Encoder 58mm 20mm 18 bit <0.02° Ultem™ polymer (Stator, Rotor) 5V ± 5% - icon
DS-0070 Electrical Encoder 70mm 30mm 19 bit <0.010° Ultem™ polymer (Stator, Rotor) 5V ± 5% IP 40 icon
DS-0090 Electrical Encoder 90mm 50mm 19 bit <0.01° Ultem™ polymer (Stator, Rotor) 5V ± 5% IP 40 icon
DS-0130 Electrical Encoders 130mm 90 19 bit <0.01° Ultem™ polymer (Stator, Rotor) 5V ± 5% IP 40 icon
VLX-0060 Electrical Encoder 60mm 27mm 18 bit <0.020° FR4 (Stator, Rotor) 5V ± 5% - icon
VLX-0064 Electrical Encoder 64mm 34mm 19 bit <0.020° FR4 (Stator, Rotor) 5V ± 5% - icon

Magnetic Encoders

Magnetic Encoders

These sensors use resistors that are sensitive to magnetic fields. When a rotor with magnetic poles is sensed, a sine wave is generated which is then converted to a square wave. This pick-up is more sensitive and thus can operate from 2 to 8192 PPR depending on the model being used. They require a power supply which permits operation down to zero speed and can drive cable lengths up to 2000 feet! Nidec-Avtron's Wide-Gap magnetoresistive technology resists interference from motors and brakes, and eliminates sensor scraping damage.

EX Encoders

The  modular incremental quadrature rotary encoders are a breakthrough in hazardous duty encoders to fit large shaft applications. They are ATEX/IECEx and cULus approved and offer incredibly reliable no-bearing construction!  The encoders can be used in ATEX/IECEx gas and dust and UL gas environments. We also have the world's first explosion-proof encoder with removable electronics and no external barrier!

16 products found

EX Encoders

M6C Magnetic Encoder

M6C Magnetic Encoder

Operating Power

5-24VDC in/out

Current

120mA per output, no load 24VDC

Output Format

A,A–, B,B–; Optional Marker Z,Z–

Frequency Range

0 to 150 KHz

Speed

5000 RPM Max.

Environmental

IP66

XP5 Magnetic Encoder

XP5 Magnetic Encoder

Operating Power

5-24VDC in/out

Current

400mA max @ 5V, 200mA max @ 12V, 100mA max @ 24V (plus cable load)

Output Format

A Quad B with marker (A,A–, B,B – , Z,Z – )

Frequency Range

0 to 250 KHz

Speed

6000 RPM Max.

Environmental

IP65

XPH8 (SMARTSafe™) Magnetic Encoder

XPH8 (SMARTSafe™) Magnetic Encoder

Operating Power

5-24VDC in/out

Current

400mA max @ 5V, 200mA max @ 12V, 100mA max @ 24V (plus cable load)

Output Format

A Quad B with marker (A,A–, B,B – , Z,Z – )

Frequency Range

0 to 250 KHz

Speed

6000 RPM Max.

Environmental

IP65

XR115 (SMARTSafe™) Magnetic Encoder

XR115 (SMARTSafe™) Magnetic Encoder

Operating Power

5-24VDC in/out

Current

In: 10.6V Out: 150mA, In/Out 150mA, In/Out 150mA

Output Format

A Quad B with marker (A,A\; B,B\, Z,Z\)

Frequency Range

0 to 165 KHz

Speed

-

Environmental

IP54

XR12 (SMARTSafe™) Sensor

XR12 (SMARTSafe™) Sensor

Operating Power

5-24VDC in/out

Current

In: 10.6V Out: 150mA, In/Out 150mA, In/Out 150mA

Output Format

A Quad B with marker (A,A–, B,B – , Z,Z – )

Frequency Range

0 to 165 KHz

Speed

6000 RPM Max.

Environmental

IP67

XR125 (SMARTSafe™) Magnetic Encoder

XR125 (SMARTSafe™) Magnetic Encoder

Operating Power

5-24VDC in/out

Current

In: 10.6V Out: 150mA, In/Out 100mA

Output Format

A Quad B with marker (A,A–, B,B – , Z,Z – )

Frequency Range

0 to 165 KHz

Speed

5000 RPM Max.

Environmental

IP67

XR45 (SMARTSafe™) Encoder

XR45 (SMARTSafe™) Encoder

Operating Power

5-24VDC in/out

Current

In: 10.6V Out: 150mA, In/Out 150mA, In/Out 150mA

Output Format

A Quad B with marker (A,A\; B,B\, Z,Z\)

Frequency Range

0 to 165 KHz

Speed

-

Environmental

IP54

XR485 (SMARTSafe™) Magnetic Encoder

XR485 (SMARTSafe™) Magnetic Encoder

Operating Power

5-24VDC in/out

Current

In: 10.6V Out: 150mA, In/Out 100mA

Output Format

A Quad B with marker (A,A–, B,B – , Z,Z – )

Frequency Range

0 to 165 KHz

Speed

5500 RPM Max.

Environmental

IP66

XR4F (SMARTSafe™) Magnetic Encoder

XR4F (SMARTSafe™) Magnetic Encoder

Operating Power

5-24VDC in/out

Current

In: 10.6V Out: 150mA, In/Out 150mA, In/Out 150mA

Output Format

A Quad B with marker (A,A\; B,B\, Z,Z\)

Frequency Range

0 to 165 KHz

Speed

-

Environmental

IP54

XR5 (SMARTSafe™) Sensor

XR5 (SMARTSafe™) Sensor

Operating Power

5-24VDC in/out

Current

In: 10.6V Out: 150mA, In/Out 150mA, In/Out 150mA

Output Format

A Quad B with marker (A,A–, B,B – , Z,Z – )

Frequency Range

0 to 165 KHz

Speed

6000 RPM Max.

Environmental

IP54 (Electronics)

XR56 (SMARTSafe™) Magnetic Encoder

XR56 (SMARTSafe™) Magnetic Encoder

Operating Power

5-24VDC in/out

Current

In: 10.6V Out: 150mA, In/Out 150mA, In/Out 150mA

Output Format

A Quad B with marker (A,A\; B,B\, Z,Z\)

Frequency Range

0 to 165 KHz

Speed

-

Environmental

IP54

XR685 (SMARTSafe™) Magnetic Encoder

XR685 (SMARTSafe™) Magnetic Encoder

Operating Power

5-24VDC in/out

Current

In: 10.6V Out: 150mA, In/Out 100mA

Output Format

A Quad B with marker (A,A–, B,B – , Z,Z – )

Frequency Range

0 to 165 KHz

Speed

4000 RPM Max.

Environmental

IP66

XR85 (SMARTSafe™) Magnetic Encoder

XR85 (SMARTSafe™) Magnetic Encoder

Operating Power

5-24VDC in/out

Current

In: 10.6V Out: 150mA, In/Out 150mA, In/Out 150mA

Output Format

A Quad B with marker (A,A\; B,B\, Z,Z\)

Frequency Range

0 to 165 KHz

Speed

-

Environmental

IP54

XR850 (SMARTSafe™) Magnetic Encoder

XR850 (SMARTSafe™) Magnetic Encoder

Operating Power

5-24VDC in/out

Current

In: 10.6V Out: 150mA, In/Out 150mA, In/Out 150mA

Output Format

A Quad B with marker (A,A\; B,B\, Z,Z\)

Frequency Range

0 to 165 KHz

Speed

5000 RPM Max.

Environmental

IP54

XR97 SMARTSafe™ Encoder

XR97 SMARTSafe™ Encoder

Operating Power

5-24VDC in/out

Current

In: 10.6V Out: 150mA, In/Out 150mA, In/Out 150mA

Output Format

A Quad B with marker (A,A\; B,B\, Z,Z\)

Frequency Range

0 to 165 KHz

Speed

5000 RPM Max.

Environmental

IP54

XRB2 Intrinsic Safety Isolator

XRB2 Intrinsic Safety Isolator

Operating Power

12-24 VDC

Current

200mA (w/SMARTSafe™ encoder), max 440mA

Output Format

Incremental A Quad B with marker (A,A–, B,B–, Z,Z– quadrature)

Frequency Range

0 to 165 KHz

Speed

-

Environmental

IP54 (Cabinet mount)

ProductOperating PowerCurrentOutput FormatFrequency RangeSpeedEnvironmentalPDF
M6C Magnetic Encoder 5-24VDC in/out 120mA per output, no load 24VDC A,A–, B,B–; Optional Marker Z,Z– 0 to 150 KHz 5000 RPM Max. IP66 icon
XP5 Magnetic Encoder 5-24VDC in/out 400mA max @ 5V, 200mA max @ 12V, 100mA max @ 24V (plus cable load) A Quad B with marker (A,A–, B,B – , Z,Z – ) 0 to 250 KHz 6000 RPM Max. IP65 icon
XPH8 (SMARTSafe™) Magnetic Encoder 5-24VDC in/out 400mA max @ 5V, 200mA max @ 12V, 100mA max @ 24V (plus cable load) A Quad B with marker (A,A–, B,B – , Z,Z – ) 0 to 250 KHz 6000 RPM Max. IP65 icon
XR115 (SMARTSafe™) Magnetic Encoder 5-24VDC in/out In: 10.6V Out: 150mA, In/Out 150mA, In/Out 150mA A Quad B with marker (A,A\; B,B\, Z,Z\) 0 to 165 KHz - IP54 icon
XR12 (SMARTSafe™) Sensor 5-24VDC in/out In: 10.6V Out: 150mA, In/Out 150mA, In/Out 150mA A Quad B with marker (A,A–, B,B – , Z,Z – ) 0 to 165 KHz 6000 RPM Max. IP67 icon
XR125 (SMARTSafe™) Magnetic Encoder 5-24VDC in/out In: 10.6V Out: 150mA, In/Out 100mA A Quad B with marker (A,A–, B,B – , Z,Z – ) 0 to 165 KHz 5000 RPM Max. IP67 icon
XR45 (SMARTSafe™) Encoder 5-24VDC in/out In: 10.6V Out: 150mA, In/Out 150mA, In/Out 150mA A Quad B with marker (A,A\; B,B\, Z,Z\) 0 to 165 KHz - IP54 icon
XR485 (SMARTSafe™) Magnetic Encoder 5-24VDC in/out In: 10.6V Out: 150mA, In/Out 100mA A Quad B with marker (A,A–, B,B – , Z,Z – ) 0 to 165 KHz 5500 RPM Max. IP66 icon
XR4F (SMARTSafe™) Magnetic Encoder 5-24VDC in/out In: 10.6V Out: 150mA, In/Out 150mA, In/Out 150mA A Quad B with marker (A,A\; B,B\, Z,Z\) 0 to 165 KHz - IP54 icon
XR5 (SMARTSafe™) Sensor 5-24VDC in/out In: 10.6V Out: 150mA, In/Out 150mA, In/Out 150mA A Quad B with marker (A,A–, B,B – , Z,Z – ) 0 to 165 KHz 6000 RPM Max. IP54 (Electronics) icon
XR56 (SMARTSafe™) Magnetic Encoder 5-24VDC in/out In: 10.6V Out: 150mA, In/Out 150mA, In/Out 150mA A Quad B with marker (A,A\; B,B\, Z,Z\) 0 to 165 KHz - IP54 icon
XR685 (SMARTSafe™) Magnetic Encoder 5-24VDC in/out In: 10.6V Out: 150mA, In/Out 100mA A Quad B with marker (A,A–, B,B – , Z,Z – ) 0 to 165 KHz 4000 RPM Max. IP66 icon
XR85 (SMARTSafe™) Magnetic Encoder 5-24VDC in/out In: 10.6V Out: 150mA, In/Out 150mA, In/Out 150mA A Quad B with marker (A,A\; B,B\, Z,Z\) 0 to 165 KHz - IP54 icon
XR850 (SMARTSafe™) Magnetic Encoder 5-24VDC in/out In: 10.6V Out: 150mA, In/Out 150mA, In/Out 150mA A Quad B with marker (A,A\; B,B\, Z,Z\) 0 to 165 KHz 5000 RPM Max. IP54 icon
XR97 SMARTSafe™ Encoder 5-24VDC in/out In: 10.6V Out: 150mA, In/Out 150mA, In/Out 150mA A Quad B with marker (A,A\; B,B\, Z,Z\) 0 to 165 KHz 5000 RPM Max. IP54 icon
XRB2 Intrinsic Safety Isolator 12-24 VDC 200mA (w/SMARTSafe™ encoder), max 440mA Incremental A Quad B with marker (A,A–, B,B–, Z,Z– quadrature) 0 to 165 KHz - IP54 (Cabinet mount) icon

Heavy Mill Duty Encoders

Our heavy mill duty modular magnetic encoders fit up to standard  12.5" C-Face motors and 12.5" flanges commonly used for NEMA brake mounting. Other THIN-LINE III models, ranging from 115mm to 6.75", are available to fit other motor sizes, and AV125 is available for 12.5" NEMA brake applications.

22 products found

Heavy Mill Duty Encoders

AV115 (THIN-LINE III™) Magnetic Encoder

AV115 (THIN-LINE III™) Magnetic Encoder

Operating Power

5 - 24 VDC

Current

100mA nom, no load

Output Format

A Quad B with marker (A,A–, B,B – , Z,Z – )

Frequency Range

250 kHz Max, 45 kHz Max

Speed

5000 RPM Max.

Environmental

IP67 (Fully Encapsulated)

AV12 Sensor for AV125 Encoder

AV12 Sensor for AV125 Encoder

Operating Power

5 - 24 VDC

Current

100mA nom, no load

Output Format

A Quad B with marker (A,A–, B,B – , Z,Z – )

Frequency Range

250 kHz Max, 45 kHz Max

Speed

5400 RPM Max.

Environmental

IP67 (Fully Encapsulated)

AV125 (SMARTach II™) Magnetic Encoder

AV125 (SMARTach II™) Magnetic Encoder

Operating Power

5 - 24 VDC

Current

100mA nom, no load

Output Format

A Quad B with marker (A,A–, B,B – , Z,Z – )

Frequency Range

250 kHz Max, 45 kHz Max

Speed

5000 RPM Max.

Environmental

IP67 (Fully Encapsulated)

AV20 Magnetic Encoder

AV20 Magnetic Encoder

Operating Power

5 - 28 VDC

Current

50mA, no load

Output Format

A Quad B with marker (A,A–, B,B – , Z,Z – )

Frequency Range

0 to 125 KHz

Speed

6000 RPM Max.

Environmental

Nema 4/IP65

AV25 Magnetic Encoder

AV25 Magnetic Encoder

Operating Power

5 - 28 VDC

Current

50mA, no load

Output Format

(A,A–, B,B–, Z,Z– available)

Frequency Range

0 to 125 KHz

Speed

6000 RPM Max.

Environmental

-

AV30 Magnetic Encoder

AV30 Magnetic Encoder

Operating Power

[SSI] 5-30 VDC, [Analog V Out] 12-30 VDC, [Analog I Out] 15-30 VDC

Current

[SSI] 30mA @ 24VDC, 125mA @ 5VDC, [Analog V Out] 15mA @ 24V, [Analog I Out] 40mA @ 24V

Output Format

Analog, SSI (future CANOpen, DeviceNet, J1939, Profibus)

Frequency Range

-

Speed

-

Environmental

IP65

AV32 (Bullseye32™) Magnetic Encoder

AV32 (Bullseye32™) Magnetic Encoder

Operating Power

5 - 24 VDC

Current

60mA, no load

Output Format

A Quad B with gated marker (A,A–, B,B–, Z,Z– )

Frequency Range

0 to 250 KHz

Speed

6000 RPM Max.

Environmental

IP65 (Electronic Protection)

AV45 (EuroSMART™) Magnetic Encoder

AV45 (EuroSMART™) Magnetic Encoder

Operating Power

5 - 24 VDC

Current

100mA nom, no load

Output Format

A Quad B with marker (A,A–, B,B – , Z,Z – )

Frequency Range

0 to 165 KHz

Speed

5000 RPM Max.

Environmental

IP65

AV485 (SMARTach II™) Magnetic Encoder

AV485 (SMARTach II™) Magnetic Encoder

Operating Power

5 - 24 VDC

Current

100mA nom, no load

Output Format

A Quad B with marker (A,A–, B,B – , Z,Z – )

Frequency Range

250 kHz Max, 45 kHz Max

Speed

5000 RPM Max.

Environmental

IP67 (Fully Encapsulated)

AV5 Magnetic Module

AV5 Magnetic Module

Operating Power

5 - 24 VDC

Current

100mA nom, no load

Output Format

A Quad B with marker (A,A–, B,B – , Z,Z – )

Frequency Range

250 kHz Max, 45 kHz Max

Speed

5400 RPM Max.

Environmental

IP67 (Fully Encapsulated)

AV56 (THIN-LINE III™) Magnetic Encoder

AV56 (THIN-LINE III™) Magnetic Encoder

Operating Power

5 - 24 VDC

Current

100mA nom, no load

Output Format

A Quad B with marker (A,A–, B,B – , Z,Z – )

Frequency Range

250 kHz Max, 45 kHz Max

Speed

5400 RPM Max.

Environmental

IP67 (Fully Encapsulated)

AV56S (THIN-LINE III™) Magnetic Encoder

AV56S (THIN-LINE III™) Magnetic Encoder

Operating Power

5 - 24 VDC

Current

80mA, no load

Output Format

A Quad B with marker (A,A–, B,B – , Z,Z – )

Frequency Range

250 kHz Max, 45 kHz Max

Speed

5400 RPM Max.

Environmental

IP67 (Fully Encapsulated)

AV67 (THIN-LINE III™) Magnetic Encoder

AV67 (THIN-LINE III™) Magnetic Encoder

Operating Power

5 - 24 VDC

Current

100mA nom, no load

Output Format

A Quad B with marker (A,A–, B,B – , Z,Z – )

Frequency Range

250 kHz Max, 45 kHz Max

Speed

5400 RPM Max.

Environmental

IP67 (Fully Encapsulated)

AV685 (SMARTach II™) Magnetic Encoder

AV685 (SMARTach II™) Magnetic Encoder

Operating Power

5 - 24 VDC

Current

100mA nom, no load

Output Format

A Quad B with marker (A,A–, B,B – , Z,Z – )

Frequency Range

250 kHz Max, 45 kHz Max

Speed

5400 RPM Max.

Environmental

IP67 (Fully Encapsulated)

AV6A Magnetic Encoder

AV6A Magnetic Encoder

Operating Power

10 - 30 VDC

Current

230mA at 10V, 100mA at 24V maximum*

Output Format

Ethernet/IP, Modbus TCP, Profinet, Powerlink, Profibus, CANOpen, CANSafe, DeviceNet, SSI, Parallel

Frequency Range

-

Speed

-

Environmental

IP66

AV6M Magnetic Encoder

AV6M Magnetic Encoder

Operating Power

[SSI] 5-30 VDC, [Analog V Out] 12-30 VDC, [Analog I Out] 15-30 VDC

Current

[SSI] 30mA @ 24VDC, 125mA @ 5VDC, [Analog V Out] 15mA @ 24V, [Analog I Out] 40mA @ 24V

Output Format

Analog, SSI (future CANOpen, DeviceNet, J1939, Profibus)

Frequency Range

-

Speed

-

Environmental

IP69K (IP65)

AV85 (THIN-LINE III™) Magnetic Encoder

AV85 (THIN-LINE III™) Magnetic Encoder

Operating Power

5 - 24 VDC

Current

100mA nom, no load

Output Format

A Quad B with marker (A,A–, B,B – , Z,Z – )

Frequency Range

250 kHz Max, 45 kHz Max

Speed

5400 RPM Max.

Environmental

IP67

AV850 (SMARTach II) Magnetic Encoder

AV850 (SMARTach II) Magnetic Encoder

Operating Power

5 - 24 VDC

Current

100mA nom, no load

Output Format

A Quad B with marker (A,A–, B,B – , Z,Z – )

Frequency Range

250 kHz Max, 45 kHz Max

Speed

6000 RPM Max.

Environmental

IP67 (Fully Encapsulated)

M4 Large-Bore Magnetic Encoder

M4 Large-Bore Magnetic Encoder

Operating Power

5 - 24 VDC

Current

120mA per output, no load 24VDC

Output Format

A,A–, B,B–; Optional Marker Z,Z–

Frequency Range

0 to 100 KHz

Speed

5000 RPM Max.

Environmental

-

M4-(3-5, A-F) Small Bore Magnetic Encoder

M4-(3-5, A-F) Small Bore Magnetic Encoder

Operating Power

5 - 24 VDC

Current

120mA per output, no load 24VDC

Output Format

A,A–, B,B–; Optional Marker Z,Z–

Frequency Range

0 to 100 KHz

Speed

5000 RPM Max.

Environmental

-

M484 Sensor

M484 Sensor

Operating Power

See Data Sheet for Available Models

Current

See Data Sheet for Available Models

Output Format

A Quad B (A,A/, B,B/) Optional Marker Pulse (Z, Z/)

Frequency Range

0 to 36 KHz

Speed

3600-4500 RPM Max.

Environmental

IP65

M7 (Ultra-Low Temperature) Magnetic Encoder

M7 (Ultra-Low Temperature) Magnetic Encoder

Operating Power

5 - 24 VDC

Current

120mA per output, no load 24VDC

Output Format

A,A–, B,B–; Optional Marker Z,Z–

Frequency Range

0 to 100 KHz

Speed

5000 RPM Max.

Environmental

-

ProductOperating PowerCurrentOutput FormatFrequency RangeSpeedEnvironmentalPDF
AV115 (THIN-LINE III™) Magnetic Encoder 5 - 24 VDC 100mA nom, no load A Quad B with marker (A,A–, B,B – , Z,Z – ) 250 kHz Max, 45 kHz Max 5000 RPM Max. IP67 (Fully Encapsulated) icon
AV12 Sensor for AV125 Encoder 5 - 24 VDC 100mA nom, no load A Quad B with marker (A,A–, B,B – , Z,Z – ) 250 kHz Max, 45 kHz Max 5400 RPM Max. IP67 (Fully Encapsulated) icon
AV125 (SMARTach II™) Magnetic Encoder 5 - 24 VDC 100mA nom, no load A Quad B with marker (A,A–, B,B – , Z,Z – ) 250 kHz Max, 45 kHz Max 5000 RPM Max. IP67 (Fully Encapsulated) icon
AV20 Magnetic Encoder 5 - 28 VDC 50mA, no load A Quad B with marker (A,A–, B,B – , Z,Z – ) 0 to 125 KHz 6000 RPM Max. Nema 4/IP65 icon
AV25 Magnetic Encoder 5 - 28 VDC 50mA, no load (A,A–, B,B–, Z,Z– available) 0 to 125 KHz 6000 RPM Max. - icon
AV30 Magnetic Encoder [SSI] 5-30 VDC, [Analog V Out] 12-30 VDC, [Analog I Out] 15-30 VDC [SSI] 30mA @ 24VDC, 125mA @ 5VDC, [Analog V Out] 15mA @ 24V, [Analog I Out] 40mA @ 24V Analog, SSI (future CANOpen, DeviceNet, J1939, Profibus) - - IP65 icon
AV32 (Bullseye32™) Magnetic Encoder 5 - 24 VDC 60mA, no load A Quad B with gated marker (A,A–, B,B–, Z,Z– ) 0 to 250 KHz 6000 RPM Max. IP65 (Electronic Protection) icon
AV45 (EuroSMART™) Magnetic Encoder 5 - 24 VDC 100mA nom, no load A Quad B with marker (A,A–, B,B – , Z,Z – ) 0 to 165 KHz 5000 RPM Max. IP65 icon
AV485 (SMARTach II™) Magnetic Encoder 5 - 24 VDC 100mA nom, no load A Quad B with marker (A,A–, B,B – , Z,Z – ) 250 kHz Max, 45 kHz Max 5000 RPM Max. IP67 (Fully Encapsulated) icon
AV5 Magnetic Module 5 - 24 VDC 100mA nom, no load A Quad B with marker (A,A–, B,B – , Z,Z – ) 250 kHz Max, 45 kHz Max 5400 RPM Max. IP67 (Fully Encapsulated) icon
AV56 (THIN-LINE III™) Magnetic Encoder 5 - 24 VDC 100mA nom, no load A Quad B with marker (A,A–, B,B – , Z,Z – ) 250 kHz Max, 45 kHz Max 5400 RPM Max. IP67 (Fully Encapsulated) icon
AV56S (THIN-LINE III™) Magnetic Encoder 5 - 24 VDC 80mA, no load A Quad B with marker (A,A–, B,B – , Z,Z – ) 250 kHz Max, 45 kHz Max 5400 RPM Max. IP67 (Fully Encapsulated) icon
AV67 (THIN-LINE III™) Magnetic Encoder 5 - 24 VDC 100mA nom, no load A Quad B with marker (A,A–, B,B – , Z,Z – ) 250 kHz Max, 45 kHz Max 5400 RPM Max. IP67 (Fully Encapsulated) icon
AV685 (SMARTach II™) Magnetic Encoder 5 - 24 VDC 100mA nom, no load A Quad B with marker (A,A–, B,B – , Z,Z – ) 250 kHz Max, 45 kHz Max 5400 RPM Max. IP67 (Fully Encapsulated) icon
AV6A Magnetic Encoder 10 - 30 VDC 230mA at 10V, 100mA at 24V maximum* Ethernet/IP, Modbus TCP, Profinet, Powerlink, Profibus, CANOpen, CANSafe, DeviceNet, SSI, Parallel - - IP66 icon
AV6M Magnetic Encoder [SSI] 5-30 VDC, [Analog V Out] 12-30 VDC, [Analog I Out] 15-30 VDC [SSI] 30mA @ 24VDC, 125mA @ 5VDC, [Analog V Out] 15mA @ 24V, [Analog I Out] 40mA @ 24V Analog, SSI (future CANOpen, DeviceNet, J1939, Profibus) - - IP69K (IP65) icon
AV85 (THIN-LINE III™) Magnetic Encoder 5 - 24 VDC 100mA nom, no load A Quad B with marker (A,A–, B,B – , Z,Z – ) 250 kHz Max, 45 kHz Max 5400 RPM Max. IP67 icon
AV850 (SMARTach II) Magnetic Encoder 5 - 24 VDC 100mA nom, no load A Quad B with marker (A,A–, B,B – , Z,Z – ) 250 kHz Max, 45 kHz Max 6000 RPM Max. IP67 (Fully Encapsulated) icon
M4 Large-Bore Magnetic Encoder 5 - 24 VDC 120mA per output, no load 24VDC A,A–, B,B–; Optional Marker Z,Z– 0 to 100 KHz 5000 RPM Max. - icon
M4-(3-5, A-F) Small Bore Magnetic Encoder 5 - 24 VDC 120mA per output, no load 24VDC A,A–, B,B–; Optional Marker Z,Z– 0 to 100 KHz 5000 RPM Max. - icon
M484 Sensor See Data Sheet for Available Models See Data Sheet for Available Models A Quad B (A,A/, B,B/) Optional Marker Pulse (Z, Z/) 0 to 36 KHz 3600-4500 RPM Max. IP65 icon
M7 (Ultra-Low Temperature) Magnetic Encoder 5 - 24 VDC 120mA per output, no load 24VDC A,A–, B,B–; Optional Marker Z,Z– 0 to 100 KHz 5000 RPM Max. - icon

Light Mill Duty Encoders

Our light mill duty modular magnetic encoders are cost efficient and easy to install. Did you know Bullseye32™ (AV32) encoders eliminate the top culprits that cause encoder failures: there are no bearings, no seals, no optics, no glass disks! And they don't require expensive mounting flanges like other no-bearing encoders. The PPR is also programble at the customer!

7 products found

Light Mill Duty Encoders

Brushless Tachometer BC42 and BC46

Brushless Tachometer BC42 and BC46

Operating Power

110VAC, 0.25A

Current

-

Output Format

50, 100, or 200V/1000RPM

Frequency Range

-

Speed

5000 RPM Max.

Environmental

IP67 (Fully Encapsulated)

HS25A Magnetic Encoder

HS25A Magnetic Encoder

Operating Power

5 - 28 VDC

Current

50mA, no load

Output Format

A Quad B with marker (A,A–, B,B – , Z,Z – )

Frequency Range

0 to 125 KHz

Speed

6000 RPM Max.

Environmental

IP65

HS35A Magnetic Encoder

HS35A Magnetic Encoder

Operating Power

5 - 28 VDC

Current

50mA, no load

Output Format

A Quad B with marker (A,A–, B,B – , Z,Z – )

Frequency Range

0 to 125 KHz

Speed

6000 RPM Max.

Environmental

IP65

HS35M Magnetic Encoder

HS35M Magnetic Encoder

Operating Power

5 - 24 VDC

Current

80mA, no load

Output Format

A Quad B with marker (A,A–, B,B – , Z,Z – )

Frequency Range

0 to 165 KHz

Speed

4700 RPM Max.

Environmental

IP65, Nema 4, 13 Rating

HS40 Magnetic Encoder

HS40 Magnetic Encoder

Operating Power

[SSI] 5-30 VDC, [Analog V Out] 12-30 VDC, [Analog I Out] 15-30 VDC

Current

[SSI] 30mA @ 24VDC, 125mA @ 5VDC, [Analog V Out] 15mA @ 24V, [Analog I Out] 40mA @ 24V

Output Format

Analog, SSI (future CANOpen, DeviceNet, J1939, Profibus)

Frequency Range

-

Speed

-

Environmental

IP65

HS45 Magnetic Encoder

HS45 Magnetic Encoder

Operating Power

5 - 24 VDC

Current

100mA nom, no load

Output Format

A Quad B with marker (A,A–, B,B – , Z,Z – )

Frequency Range

0 to 165 KHz

Speed

5000 RPM Max.

Environmental

IP65

HS6A Magnetic Encoder

HS6A Magnetic Encoder

Operating Power

10 - 30 VDC

Current

230mA at 10V, 100mA at 24V maximum*

Output Format

Ethernet/IP, Modbus TCP, Profinet, Powerlink, Profibus, CANOpen, CANSafe, DeviceNet, SSI, Parallel

Frequency Range

-

Speed

-

Environmental

IP66

ProductOperating PowerCurrentOutput FormatFrequency RangeSpeedEnvironmentalPDF
Brushless Tachometer BC42 and BC46 110VAC, 0.25A - 50, 100, or 200V/1000RPM - 5000 RPM Max. IP67 (Fully Encapsulated) icon
HS25A Magnetic Encoder 5 - 28 VDC 50mA, no load A Quad B with marker (A,A–, B,B – , Z,Z – ) 0 to 125 KHz 6000 RPM Max. IP65 icon
HS35A Magnetic Encoder 5 - 28 VDC 50mA, no load A Quad B with marker (A,A–, B,B – , Z,Z – ) 0 to 125 KHz 6000 RPM Max. IP65 icon
HS35M Magnetic Encoder 5 - 24 VDC 80mA, no load A Quad B with marker (A,A–, B,B – , Z,Z – ) 0 to 165 KHz 4700 RPM Max. IP65, Nema 4, 13 Rating icon
HS40 Magnetic Encoder [SSI] 5-30 VDC, [Analog V Out] 12-30 VDC, [Analog I Out] 15-30 VDC [SSI] 30mA @ 24VDC, 125mA @ 5VDC, [Analog V Out] 15mA @ 24V, [Analog I Out] 40mA @ 24V Analog, SSI (future CANOpen, DeviceNet, J1939, Profibus) - - IP65 icon
HS45 Magnetic Encoder 5 - 24 VDC 100mA nom, no load A Quad B with marker (A,A–, B,B – , Z,Z – ) 0 to 165 KHz 5000 RPM Max. IP65 icon
HS6A Magnetic Encoder 10 - 30 VDC 230mA at 10V, 100mA at 24V maximum* Ethernet/IP, Modbus TCP, Profinet, Powerlink, Profibus, CANOpen, CANSafe, DeviceNet, SSI, Parallel - - IP66 icon
