Advanced Performance Detectors (APD)

High Speed & Performance Detectors

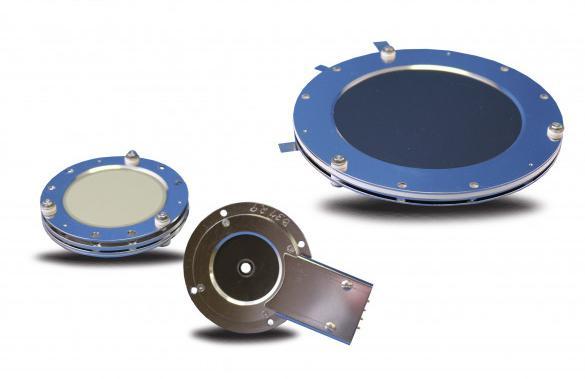

Our Advanced Performance Detectors (APDs) are plug-and-play electro-optic assemblies which provide a complete housing, facilitating manufacturing assembly, repair or replacement to mass spectrometers and other machines.

  • High speed
  • Compact
  • High performance
  • Bakeable to 300°C
  • High gain - low noise



Our Advanced Performance Detectors (APDs) satisfy applications ranging from mass spectrometry to UV and X-ray astronomy. Most of these detector assemblies are designed for use in ultra-high vacuum systems and the 300°C temperatures reached during chamber cleaning, therefore saving time that would otherwise be required to remove the detector. Readout schemes - including photodiode array, phosphor screen, CCD camera, or direct electrical signal - are available.

Each one our Advanced Performance Detectors (APDs) are equipped with one of our LongLife™ or MountingPad™ microchannel plates. MCPs range in size from 4 to 120mm and can be designed in many different shapes to fit into the APD. Mounting options include conflat and metric flanges, front-, rear- or side-mountable, feed-throughs, keyed hardware and SMA connectors. Other customization options include center hole, center tab, grid, metal (or multi metal) anode, resistive anode encoder, phosphor screen, and the option for a CMOS camera being mounted to the APD itself. Advanced Performance Detectors are used in some the world’s fastest Time-of-Flight detectors, in physics research experiments and on space missions. They are known to provide maximum sensitivity to enable detection of very low levels of photons, electrons, or ions. With Penlink's APDs, you will be the first to discover.

Miniature APD models

QUANTUM™ SUB-MINIATURE APD
Microchannel Plate: Long-Life™ Extended Dynamic Range MCP
Maximum Operating Voltage (VDC): 1000
Operating Temperature Range (°C): -50 to 100
Outside Diameter (mm): 5.5

MICROTRON™ MINIATURE APD
Microchannel Plate: Two (as a Chevron) Long-Life™ Extended Dynamic Range MCP
Maximum Operating Voltage (VDC): 2000
Operating Temperature Range (°C): -50 to 100
Outside Diameter (mm): 14.2
