OPTICAL TRANSMISSION

Our Fiberoptic Rotary Joints (FORJs) are compact multi-channel products. They connect 2-36 independent fiber channels simultaneously. They are ideal when combined with electrical slip rings or RF rotary joints or when space is tight in general.

Though very small they still feature standard optical performance (<-60 dB crosstalk, <5 dB insertion loss, and >45 dB return loss). All channels can accommodate either singlemode or multimode fibers. It is also possible to combine the two types of fibers in one device.

2 products found

Hybrid Rotary Joint

001 Custom FORJ (2-8 channels)

001 Custom FORJ (2-8 channels)

Fiber type

SM or MM w/3 mm jacket, 1 m (Kevlar/PVC or armor)

Wavelength Length

1270-1610 nm for SM; 850 and 1310 nm for MM

Insertion Loss

<5 dB

Connector

FC, SC, ST, SMA, LC or /APCs

Temperature

Working: -20 to 65°C; Storage: -25 to 75°C

IP-Rating

Up to IP 65

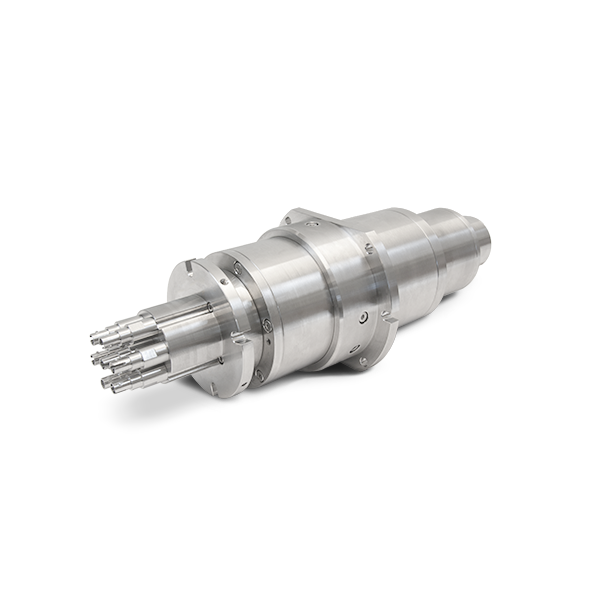

002 Custom FORJ (Single Mode)

002 Custom FORJ (Single Mode)

Fiber type

Single Mode & Multi Mode

Wavelength Length

1310/850 nm or 1310/1550 nm

Insertion Loss

<5 dB (typical: 2-3 dB)

Connector

ST Bulkhead

Temperature

-20 to 65°C

IP-Rating

Submerged

ProductFiber typeWavelength LengthInsertion LossConnectorTemperatureIP-RatingPDF
001 Custom FORJ (2-8 channels) SM or MM w/3 mm jacket, 1 m (Kevlar/PVC or armor) 1270-1610 nm for SM; 850 and 1310 nm for MM <5 dB FC, SC, ST, SMA, LC or /APCs Working: -20 to 65°C; Storage: -25 to 75°C Up to IP 65
002 Custom FORJ (Single Mode) Single Mode & Multi Mode 1310/850 nm or 1310/1550 nm <5 dB (typical: 2-3 dB) ST Bulkhead -20 to 65°C Submerged
