Magnetic Encoders

We deliver your solution

These sensors use resistors that are sensitive to magnetic fields. When a rotor with magnetic poles is sensed, a sine wave is generated which is then converted to a square wave. This pick-up is more sensitive and thus can operate from 2 to 8192 PPR depending on the model being used. They require a power supply which permits operation down to zero speed and can drive cable lengths up to 2000 feet!

Our partner's Wide-Gap magnetoresistive technology resists interference from motors and brakes, and eliminates sensor scraping damage.

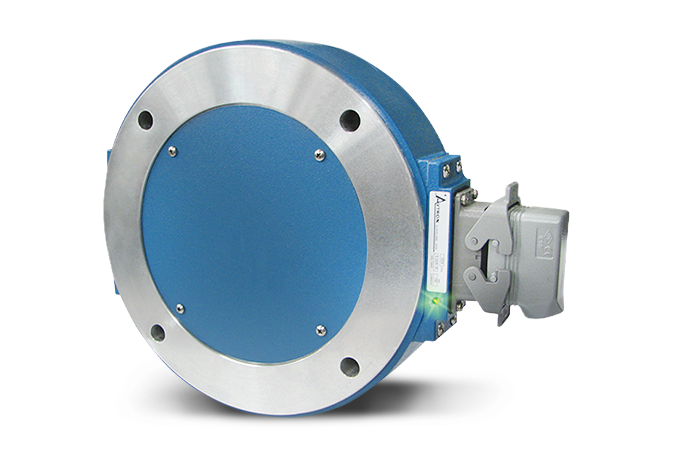

Explosion Safe Encoder

Explosion Safe Encoders

The modular incremental quadrature rotary encoders are a breakthrough in hazardous duty encoders to fit large shaft applications. They are ATEX/IECEx and cULus approved and offer incredibly reliable no-bearing construction!

Read more

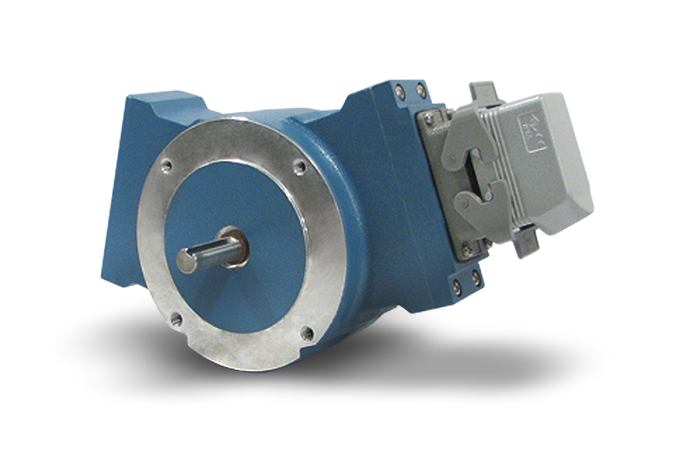

Heavy Duty Mill Encoder

Heavy Mill Duty Encoders

Our heavy mill duty modular magnetic encoders fit up to standard  12.5" C-Face motors and 12.5" flanges commonly used for NEMA brake mounting.

Read more

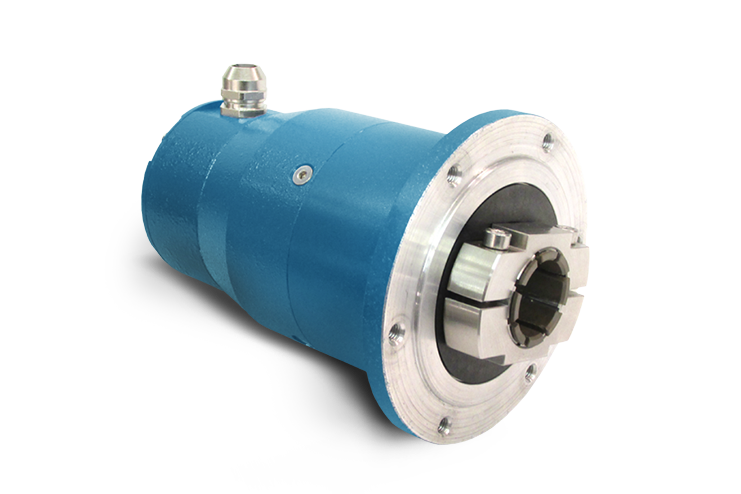

Light Mill Duty Encoder

Light Mill Duty Encoders

Our light mill duty modular magnetic encoders are cost efficient and easy to install. Did you know Bullseye32™ (AV32) encoders eliminate the top culprits that cause encoder failures: there are no bearings...

Read more
